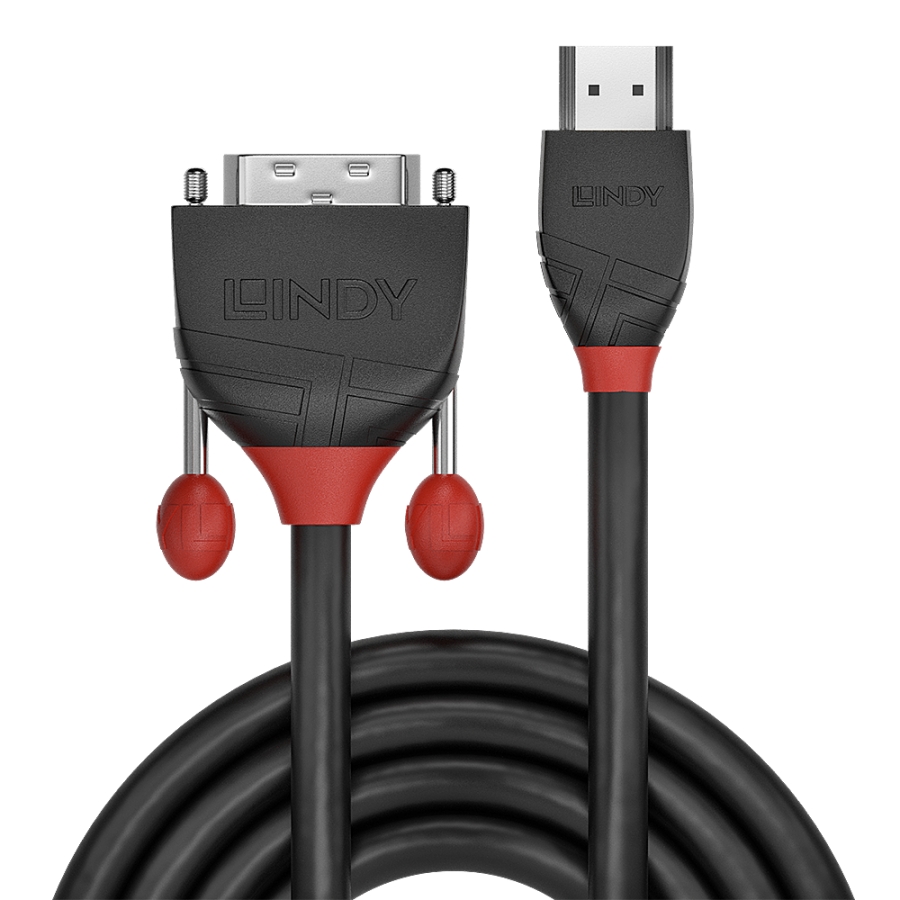

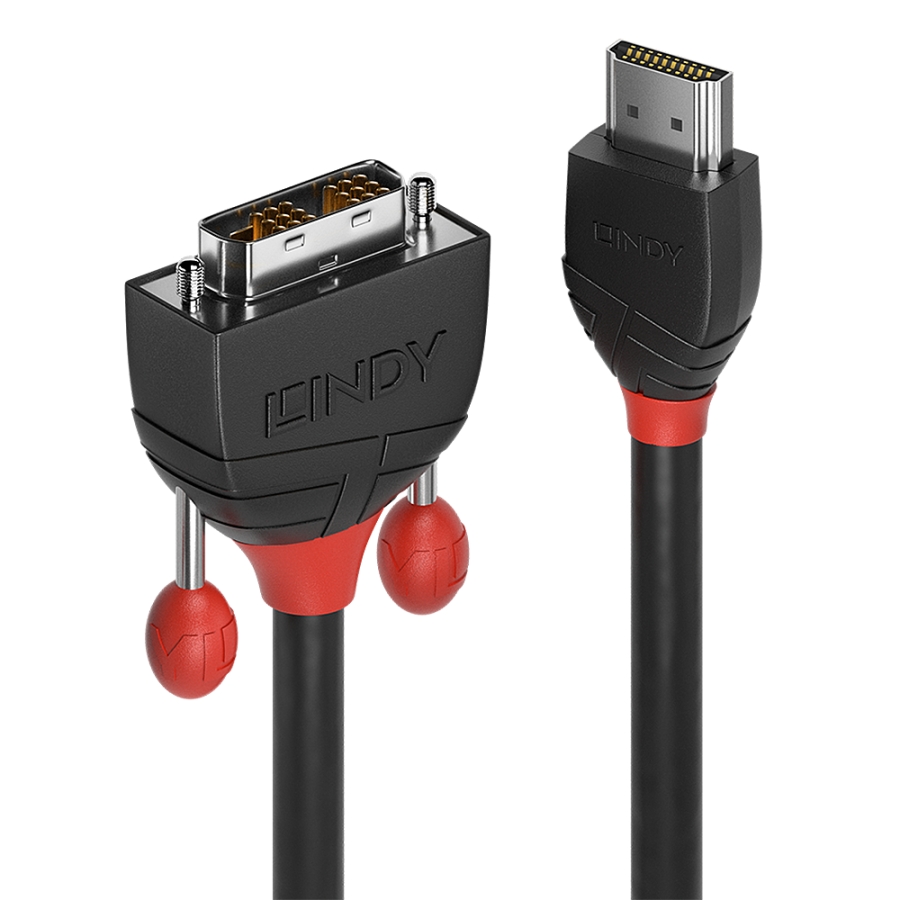

LINDY HDMI an DVI-D Single Link Kabel Black Line 1m

Lindy

36271

New

Entry level HDMI Male to DVI-D Male cable for home and small office applications Supports DVI resolutions up to 1920x1200@60Hz and HDTV resolutions up to 1080p Robust PVC housing, nickel connectors, 24K gold plated contacts Tripled shielded cable, corrosion resistant tinned copper 30AWG conductors 10 year warrantyFrom the Lines cable connectivity concept developed by Lindy, Black Line HDMI to DVI-D cables are fully featured, entry level connection solutions, perfect for connecting PCs to monitors or projectors.Black Line HDMI to DVI-D cables feature triple shielded construction with 30AWG tinned copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.The tough PVC housing incorporates an integrated finger grip for easy installation. Large thumb screws allow the connector to be tightened into place without the need for a screwdriver and a flexible strain relief prolongs cable life.Black Line HDMI to DVI-D cables support resolutions up to 1920x1200@60Hz including HDTV resolutions up to 1080p.Black Line HDMI to DVI-D cables are available in lengths of 0.5m to 10m.

Cable length1 m
Connector 1HDMI Type A (Standard)
Connector 2DVI-D
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
Maximum resolution1920 x 1200 pixels
Supported graphics resolutions1920 x 1200 (WUXGA)
Data transfer rate4.95 Gbit/s
Bend radius (min)5.5 cm
Cable materialTinned copper
Product colourBlack
Conductor materialTinned copper
Nominal attenuation1 €“ 825Mhz 12db
Jacket materialPolyvinyl chloride (PVC)
Cable typeRound cable
Connector housing materialPolyvinyl chloride (PVC)
Connector materialNickel
Contact materialBrass
AWG wire size30
Cable shieldingAluminium braid
CertificationRoHS, REACH, UL
Operating temperature (T-T)-20 - 80 °C
Storage temperature (T-T)-25 - 85 °C
Cable diameter5.5 mm
Connector 1 dimensions (WxDxH)21.4 x 34.2 x 12.7 mm
Connector 2 dimensions (WxDxH)36.8 x 44.5 x 12.5 mm
Quantity per pack1 pc(s)
Package typePolybag
Harmonized System (HS) code84733080

HDMI
