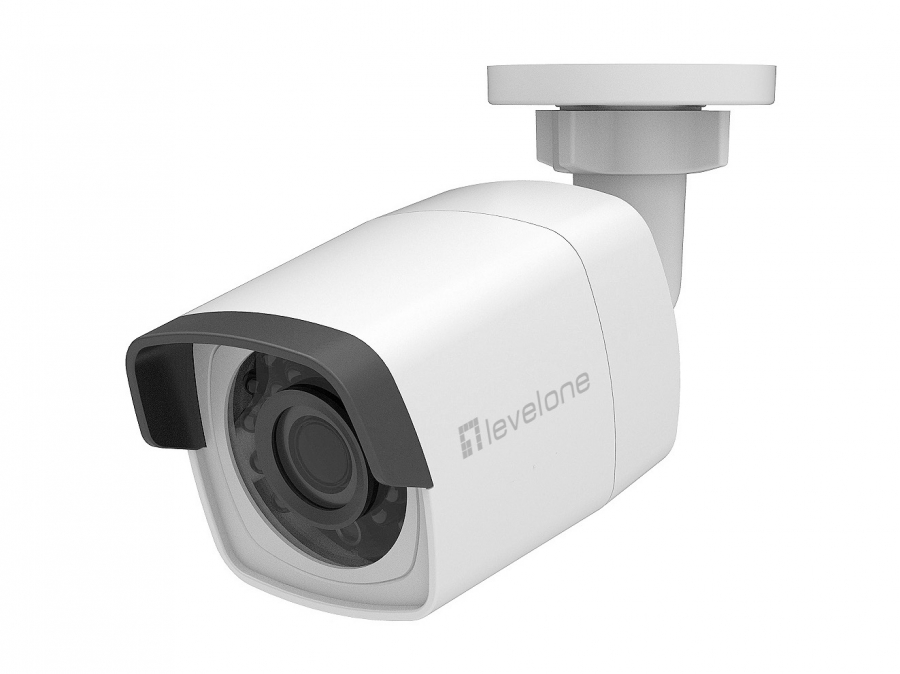

Level One LevelOne IPCam FCS-5202 Fix Out 4MP H.265 IR6, PoE

LEVEL ONE

FCS-5202

New

The LevelOne FCS-5202 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 4-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5202 should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)
Infrared (IR) cut-off filter
Dynamic range120 dB
CertificationCE/FCC
Mounting typeCeiling/wall
Product colourWhite
Form factorDome
LED indicatorsPower
International Protection (IP) codeIP67
Weatherproof
Country of originChina
Lens viewing angle, horizontal83°
Lens viewing angle, vertical45°
Lens viewing angle, diagonal99°
White balanceAuto
Camera shutter speed1/3 - 1/100000 s
Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Zoom capability
Digital zoom8x
Focus adjustment1.6
Fixed focal length4 mm
Night vision
Night vision distance30 m
LED typeIR
Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.265, M-JPEG
Supported graphics resolutions320 x 240, 640 x 360, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Noise reduction
Noise reduction technology3D noise reduction
Gain control typeAuto
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Flip & mirror
Bit rate256 Kbps - 16 Mbps
Back Light Compensation (BLC)
Region of Interest (ROI) encoding
Ethernet LAN
Wi-Fi
Bluetooth
Networking standardsIEEE 802.3af
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Number of users20 user(s)
User access levelAdministrator, Operator, User
Quality of Service (QoS) support
Live view
Number of simultaneous live view channels6 channels
Built-in HDD
Card reader integrated
Compatible memory cardsSD, SDHC, SDXC
Maximum memory card size128 GB
Ethernet LAN (RJ-45) ports1
Password protection
Video motion detection
Active tampering alarm
IP address filtering
Intelligent Video Surveillance (IVS) system featuresCrossing line, Intrusion
Anti-flicker
Heartbeat
Mirror
Digital watermark
Digest authentication
Reset button
Power source typeDC, PoE
Power consumption (max)6 W
Power over Ethernet (PoE)
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Width154 mm
Depth60.5 mm
Height70 mm
Weight500 g
Package width101 mm
Package depth111 mm
Package height174 mm
Package weight734 g
Package typeBox
Number of cameras1
Screws included
Manual
Resource CD
Browser supportedInternet Explorer 8.0+
Harmonized System (HS) code85258900
Master (outer) case width535 mm
Master (outer) case length352 mm
Master (outer) case height385 mm
Master (outer) case gross weight22 kg
Products per master (outer) case30 pc(s)

IP cameras / servers
