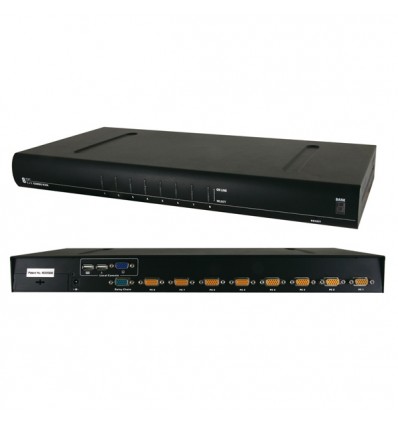

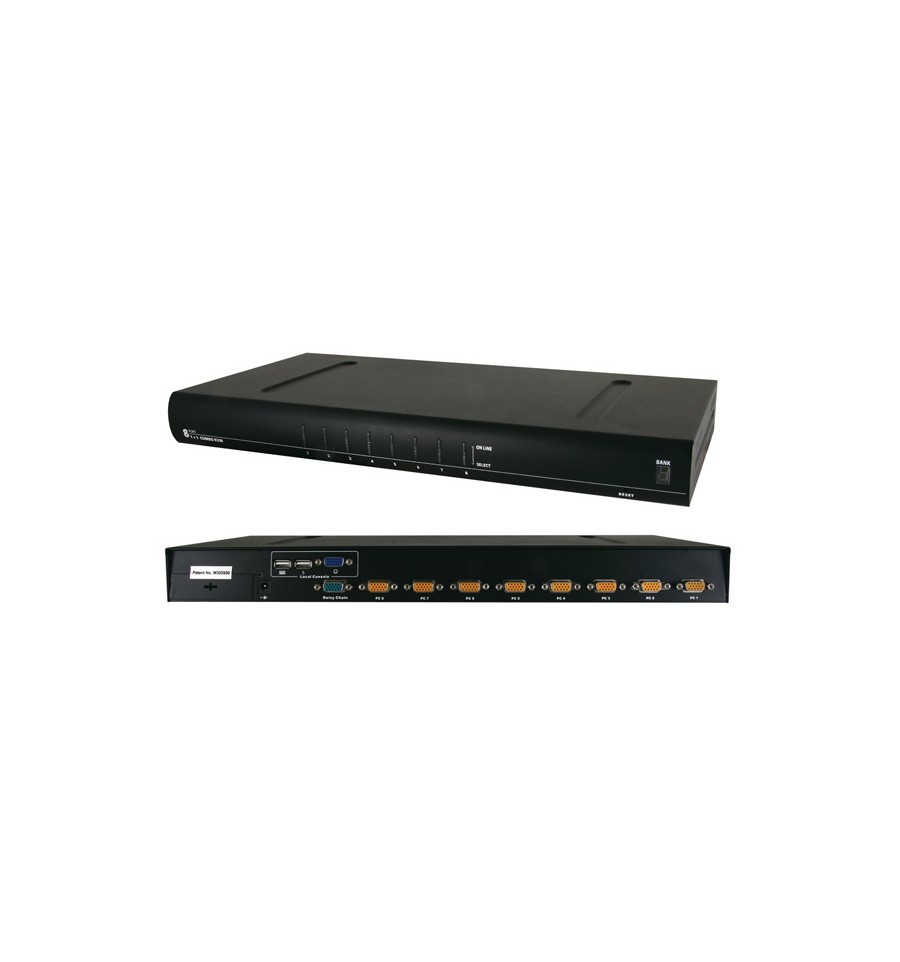

VALUE 19" KVM Switch with OSD, 1 User - 8 PCs, PS/2+USB

VALUE

14.99.3222

New

  • Automatic KVM Switch

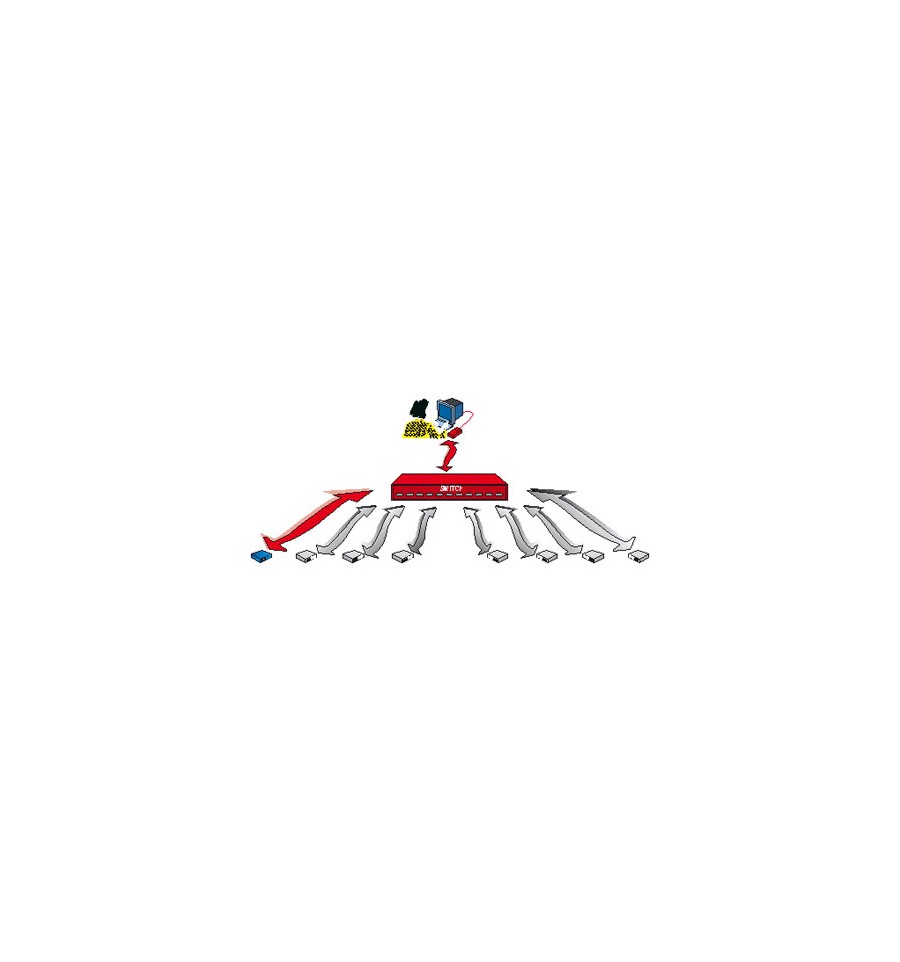

  • Up to 8 PCs can be handled with one keyboard, one mouse and one monitor
  • The switch is cascadable, up to 64 PCs can be handled with one keyboard, mouse and one monitor
  • The switching can be done on several ways:
- Automatically in a scan run (Scan Interval adjustable: 5 - 99 sec.)
- Manually by buttons on front side of the switch...

More details

  • Automatic KVM Switch
  • Up to 8 PCs can be handled with one keyboard, one mouse and one monitor
  • The switch is cascadable, up to 64 PCs can be handled with one keyboard, mouse and one monitor
  • The switching can be done on several ways:
- Automatically in a scan run (Scan Interval adjustable: 5 - 99 sec.)
- Manually by buttons on front side of the switchbox
- Hot key (keyboard combination)
- Through OSD (On Screen Display)
  • Max. resolution (nominal): 1280 x 1024 (local unit); 1024 x 786 (remote unit with optional IP module)
  • Hot-swappable function
  • LEDs for channel display
  • 19"-rack mountable
  • Supports an optional remote console over VALUE IP Module 14.99.3030
  • Remark: For connecting PCs special cables are needed that have to be ordered separately (3 m length, USB: 11.99.5501; 3 m length, PS/2: 11.99.5502)

  • Contents: KVM switch, power supply, 19" brackets, manual
19" compatibleYes, optional
Analogue Console: Monitor connection1x HD 15pol. BU
CascadableYes
Colour (Design profile)black
Content of deliverySwitch, power supply, 19" brackets ,manual
Conveyance goodNo
Hot plug compatibleYes
Integrated consoleNo
Integrated HubNo
Keyboard layoutnot applicable
Keyboard/mouse emulationYes
ManufacturerVALUE
Manufacturer Item No.14.99.3222
Material (casing)metal
Monitor size of integrated consolenot applicable
PC: combi connection16x SPHD 15pol. ST
PC: connection on moulded cablesNo
Power supply unit requiredYes
Print button on deviceYes
Product groupKVM switches / PC shares
Product typeKVM-Switch
Quantity of analogue consoles1
Quantity of PCs8
Supported PC-SystemsPS/2, USB
Switching over Hot KeysKeyboard
Switching over OSDYes
Switching over Scan RunYes
Technical particularityLED display for port status, special cables have to be ordered separately
Trackball/Touchpad integrated consolenot applicable
USB Hub switching separatelynot applicable
