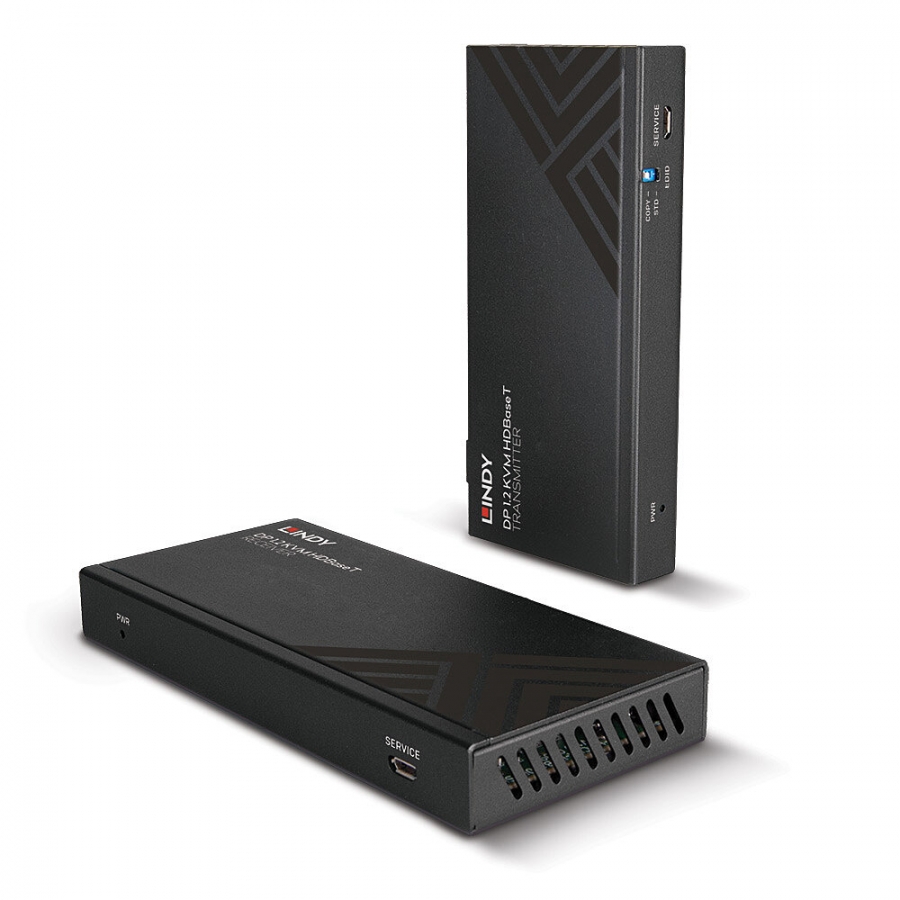

Lindy 150m Cat.6 DisplayPort 1.2, USB, IR & RS-232 HDBaseT KVM Extender

Lindy

LIN39385

New

Specifications

  • AV Interface: DisplayPort
  • Interface Standard: DisplayPort 1.2, USB 1.1
  • Supported Bandwidth: 21.6Gbps
  • Maximum Distance: 150m (492.12ft)
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • EDID Pass Through: Dip Switch with copy function
  • Supported Audio: Pass Through
  • Separate Audio Ports: -
  • IR Support: 20 - 60KHz
  • CEC Support: -
  • Serial Interface: RS-232 Pass Through
  • Transmission Protocol: HDBaseT
  • Transmission Medium: Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS010-A0
  • Special Features: Bi-directional IR, RS-232 and PoC



Connectors

  • Transmitter Input: DP (Female), USB Type B (Female), 3.5mm IR (Female)
  • Transmitter Output: RJ-45 (Female), 3.5mm IR (Female)
  • Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
  • Receiver Output: DP (Female), 2x USB Type A (Female), 3.5mm IR (Female)
  • Bi-directional Ports: RS-232 3-Pin Terminal Block
  • Power: 5.5/2.1mm



Physical Properties

  • Dimensions (approx.) WxDxH: 140x65x18mm (5.51x2.56x0.71in) each unit
  • Housing Material: Metal
  • Net Weight: 0.65kg (1.43lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 245x75x185mm (9.65x2.95x7.28in)
  • Gross Weight: 0.94kg (2.07lb)
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • HDBaseT DP KVM Extender, Transmitter
  • HDBaseT DP KVM Extender, Receiver
  • USB 2.0 Type A to Type B cable, 1.5m
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.5m
  • 4 x Mounting Ears & 8 x Screws
  • 2 x 3-Pin Terminal Block
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 39385
  • EAN: 4002888393850
