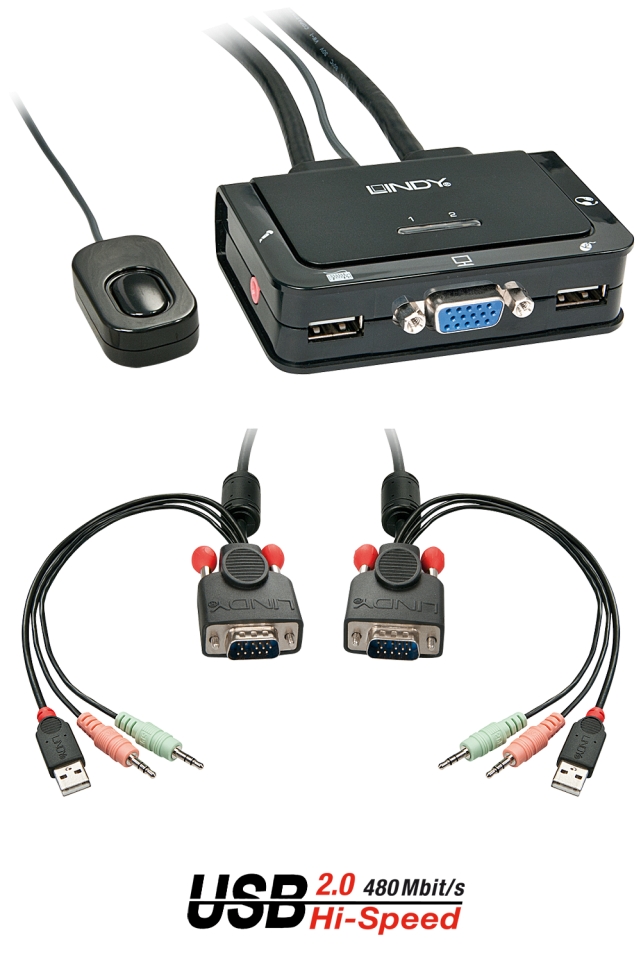

2 Port VGA, USB 2.0 & Audio Cable KVM Switch

LIN42342

New

Specifications:

  • AV Interface: VGA
  • Console Interfaces: USB
  • Interface Standard: VGA, USB 2.0
  • Maximum Resolution: 2048x1536@30Hz
  • HDCP Support: -
  • Supported Audio: Analogue Stereo
  • Separate Audio Ports: 2 x 3.5mm (Female)
  • Serial Interface: -
  • Console Number: 1
  • Max Number PC/Server: 2
  • Cascadable: -
  • Switching Method: Push Button, Hotkey Switching & Software
  • 19" Rack Mountable: -
  • Special Features: Supports USB 2.0 Hubs and Device Sharing, Active LED Indicators



Connectors:

  • Console Interfaces: VGA (Female), USB 2.0 Type A (Female), 2 x 3.5mm (Female)
  • PC/Server Interfaces: 2 x VGA (Male), USB 2.0 Type A (Male), 2 x 3.5mm (Male) 1.2m Integrated Cables
  • Other Interfaces: -
  • Power: -



Physical properties:

  • Dimensions (approx.) WxDxH: 85x55x25mm (3.35x2.17x0.98in)
  • Housing Material: Plastic
  • Net Weight: 0.46kg (1.01lb)
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0~90% RH (non-condensing)
  • Power Requirements: 5V
  • Colour: Black



Miscellaneous:

  • Packaging Type: Carton box
  • Packaging Dimensions: 160x75x165mm (6.3x2.95x6.5in)
  • Gross Weight: 0.6kg (1.32lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package content:

  • VGA KVM Switch
  • Lindy Manual



Purchasing information:

  • No.: 42342
  • EAN: 4002888423427
