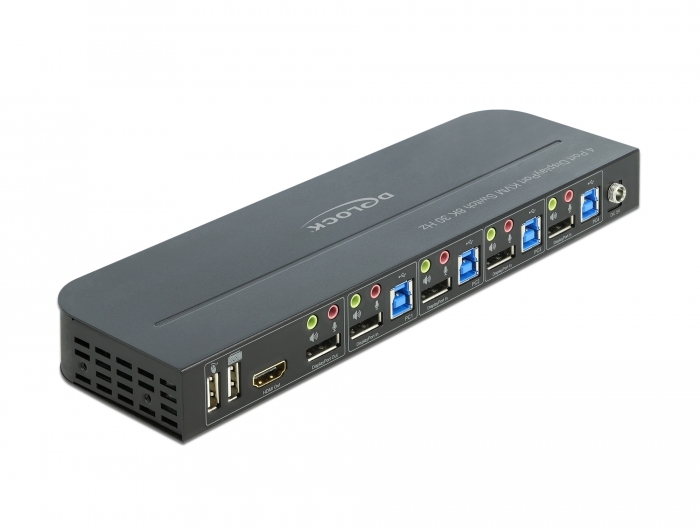

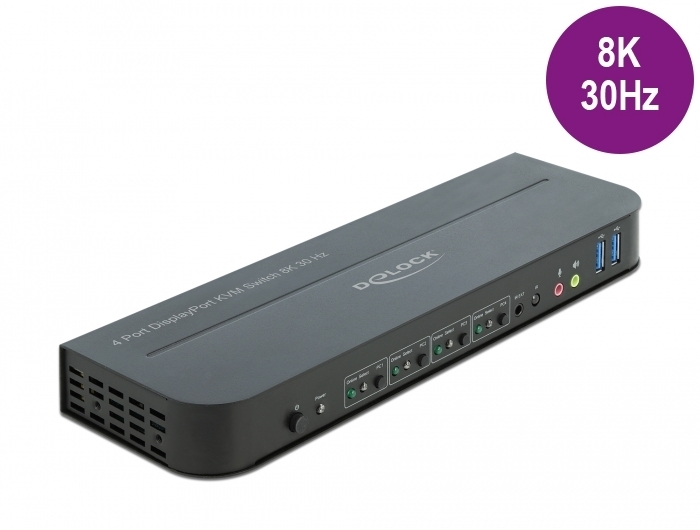

Delock DisplayPort 1.4 KVM Switch 8K 30 Hz with USB 3.0 and Audio

Reference 11484

Condition: New

More info

This KVM switch by Delock is a convenient solution for connecting four computers with DisplayPort output to one DisplayPort monitor.
Additionally there is an HDMI output for connection of two monitors, of which only one can be active at a time.

Peripheral devices
Furthermore, two USB 2.0 ports for a mouse and keyboard, and two USB 3.0 ports for a hard drive or USB memory can be connected.

Flexible Control
The active computer can be selected by mouse gesture, keyboard hotkey, button on the device or infrared remote control.

Multi-Stream Transport (MST)
With the support of MST (Multi-Stream Transport), multiple monitors can be used at the DisplayPort output with an optional MST hub.

System requirements:
• PC with DisplayPort female + USB Type-A female
• Monitor or TV with DisplayPort or HDMI interface
• Connection cables

Specification:
• Connectors:
  Input:
  4 x DisplayPort female
  4 x USB 3.0 Type-B female
  8 x 3.5 mm 3 pin stereo jack female (audio)
  1 x 3.5 mm 3 pin stereo jack female for optional IR-receiver
  1 x DC 5 V power connector screwable
  Output:
  1 x DisplayPort female
  1 x HDMI-A female
  2 x USB 3.0 Type-A female (USB 3.0 Hub)
  2 x USB 2.0 Type-A female (keyboard + mouse)
  4 x 3.5 mm 3 pin stereo jack female (audio)
• Switching via button, mouse button, hotkey or infrared remote control
• Automatic switching when turning a PC on or off
• Supports HDCP 1.4 and 2.2
• Supports HDR
• Supports MST (Multi-Stream Transport)
• DisplayPort output:
  Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected
hardware)
• HDMI output:
  Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected
hardware)
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 243 x 75 x 26 mm

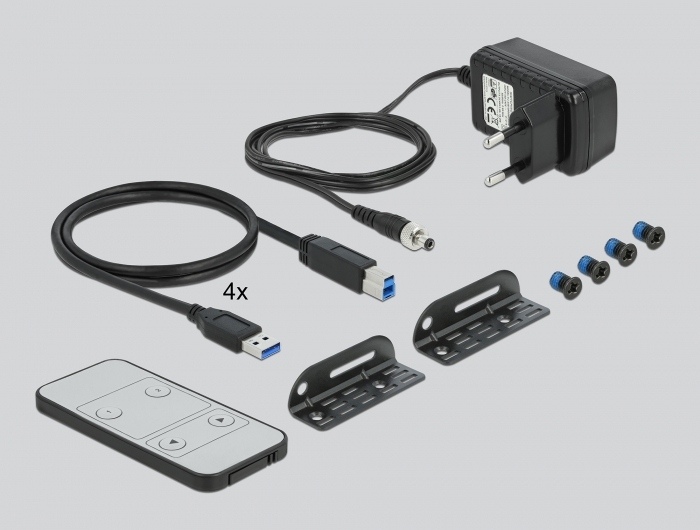

Package content:
• KVM switch with USB and audio
• Remote control
• 4 x cable USB 3.0 A male to USB 3.0 B male, length ca. 1.0 m
• External power supply
• Mounting brackets and screws
• User manual
