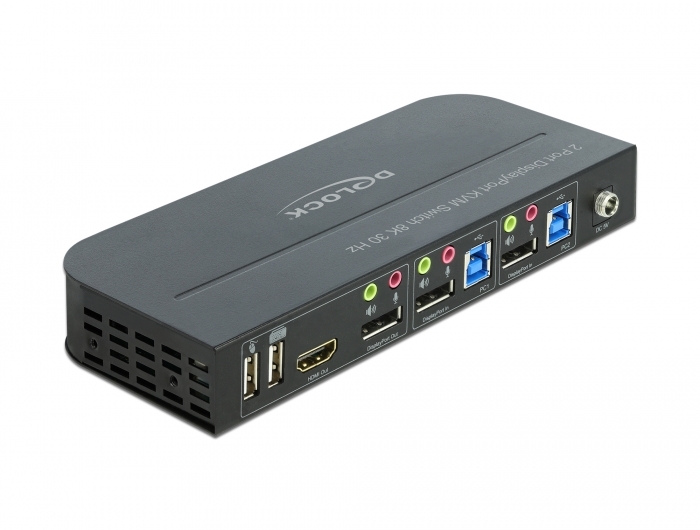

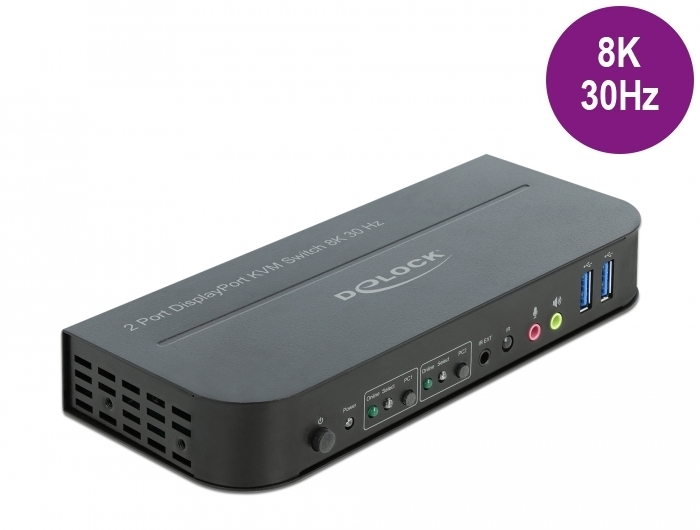

Delock DisplayPort 1.4 KVM Switch 8K 30 Hz with USB 3.0 and Audio




This KVM switch by Delock is a convenient solution for connecting two computers with DisplayPort output to a DisplayPort monitor.
Additionally there is an HDMI output for connection of two monitors, of which only one can be active at a time.

Peripheral devices
Furthermore, two USB 2.0 ports for a mouse and keyboard, and two USB 3.0 ports for a hard drive or USB memory can be connected.

Flexible Control
The active computer can be selected by mouse gesture, keyboard hotkey, button on the device or infrared remote control.

Multi-Stream Transport (MST)
With the support of MST (Multi-Stream Transport), multiple monitors can be used at the DisplayPort output with an optional MST hub.
System requirements:
• PC with DisplayPort female + USB Type-A female
• Monitor or TV with DisplayPort or HDMI interface
• Connection cables
• Connectors:
  2 x DisplayPort female
  2 x USB 3.0 Type-B female
  4 x 3.5 mm 3 pin stereo jack female (audio)
  1 x 3.5 mm 3 pin stereo jack female for optional IR-receiver
  1 x DC 5 V power connector screwable
  1 x DisplayPort female
  1 x HDMI-A female
  2 x USB 3.0 Type-A female (USB 3.0 Hub)
  2 x USB 2.0 Type-A female (keyboard + mouse)
  4 x 3.5 mm 3 pin stereo jack female (audio)
• Switching via button, mouse button, hotkey or infrared remote control
• Automatic switching when turning a PC on or off
• Supports HDCP 1.4 and 2.2
• Supports HDR
• Supports MST (Multi-Stream Transport)
• DisplayPort output:
  Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected
• HDMI output:
  Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 178 x 75 x 26 mm

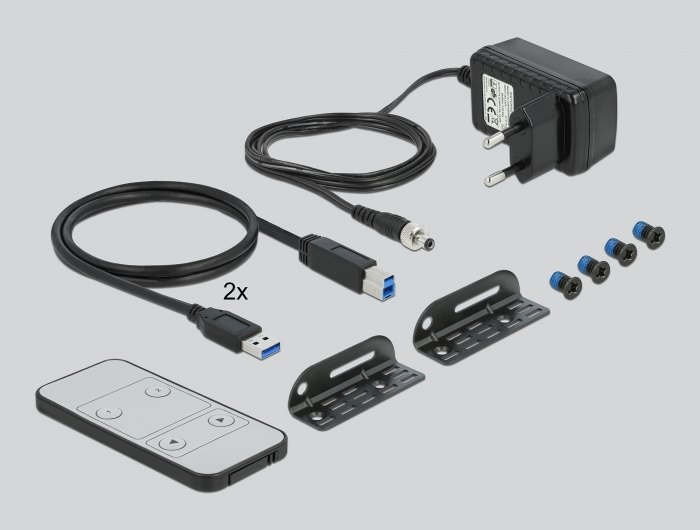

Package content:
• KVM switch with USB and audio
• Remote control
• 2 x cable USB 3.0 A male to USB 3.0 B male, length ca. 1.0 m
• External power supply
• Mounting brackets and screws
• User manual
Data sheet:
