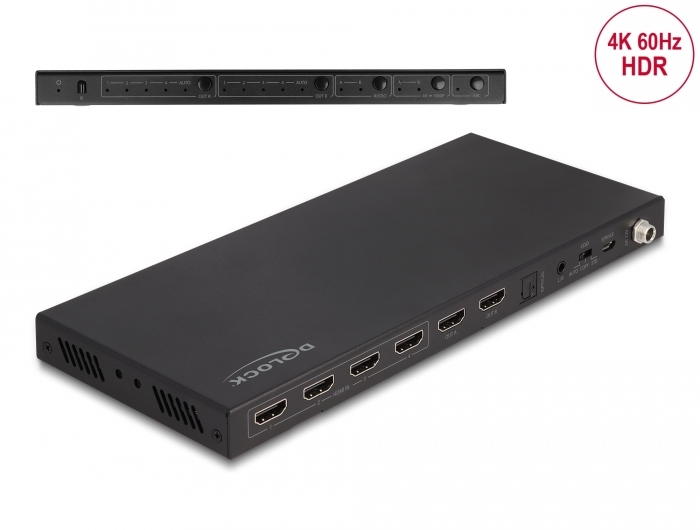

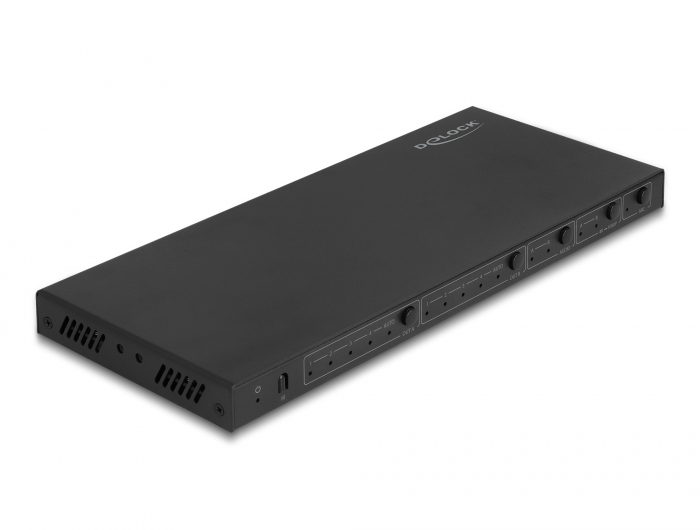

Delock HDMI Matrix Switch 4 x HDMI in to 2 x HDMI out 4K 60 Hz with Audio Extractor

DELOCK

66454

New

With this HDMI switch by Delock up to four HDMI devices can be used with two HDMI monitors, TVs or projectors. The button on the device or the remote control can be used to switch between the HDMI devices.

Matrix switch
Each input can be switched to each output; thus, the desired source can be selected for each monitor. Parallel output of one source to two monitors is also possible.

Downscaler
If a monitor does not support the high resolution, the image can be scaled from 4K to 1080p with the integrated downscaler.

Audio extractor
This function can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.

Audio Return Channel (ARC)
ARC can be enabled at the push of a button on the device or the remote control. Then the audio signal of the connected TV device is routed to the S/PDIF connectors of the switch.
System requirements:
• A free HDMI female port
• HDMI cable
Specification:

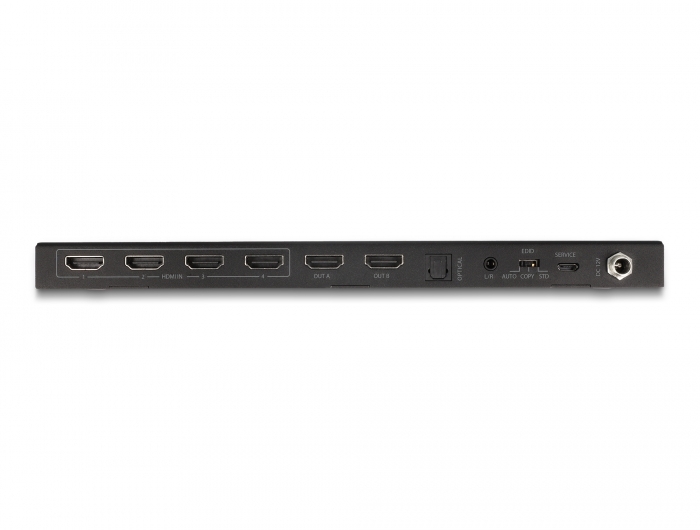

• Connectors:
  Input:
  4 x HDMI-A female
  1 x DC 12 V power connector screwable
  Output:
  2 x HDMI-A female
  1 x 3.5 mm 3 pin stereo jack female (audio)
  1 x TOSLINK female S/PDIF
• HDMI port switching: automatic function, via button or via infrared remote control
• LED indicators for active HDMI port
• High Speed HDMI specification
• Supports 3D displays
• Supports HDCP 1.4 and 2.2
• Supports HDR
• Supports EDID management
• Supports ARC (Audio Return Channel)
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
• Video bandwidth up to 600 MHz / 6 Gbps, max. 18 Gbps
• Power consumption: max. 4 W
• Metal housing
• Removable wall-mount brackets
• Colour: black
• Dimensions (LxWxH): ca. 251 x 105 x 20 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 12.0 V / 1.0 A / 12.0 W
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.1 mm
  outside: ø ca. 5.5 mm
  length: ca. 9 mm

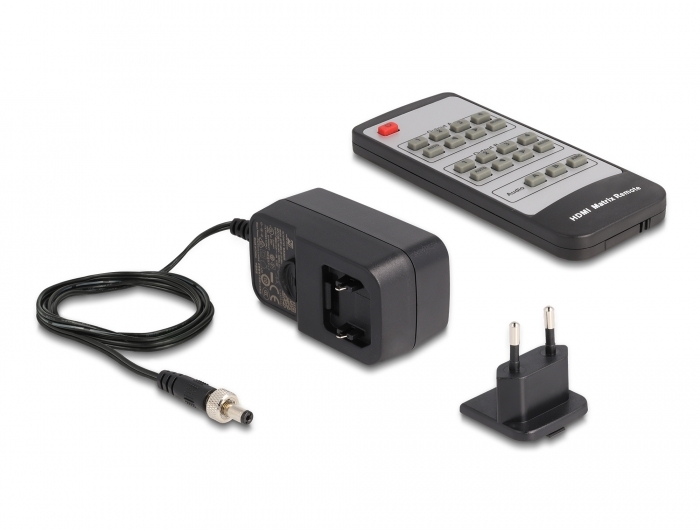

Package content:
• HDMI switch
• Remote control with button cell CR2025
• Power supply
• Mounting brackets and screws
• User manual
Data sheet:
http://www.delock.de/produkt/66454/pdf.html?sprache=en
