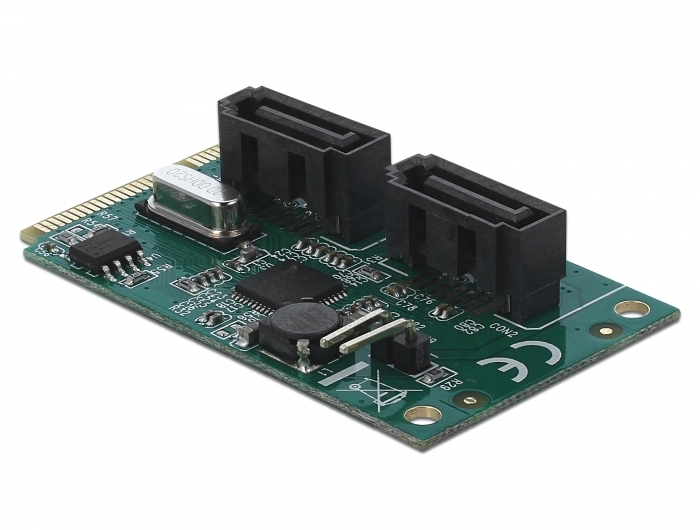

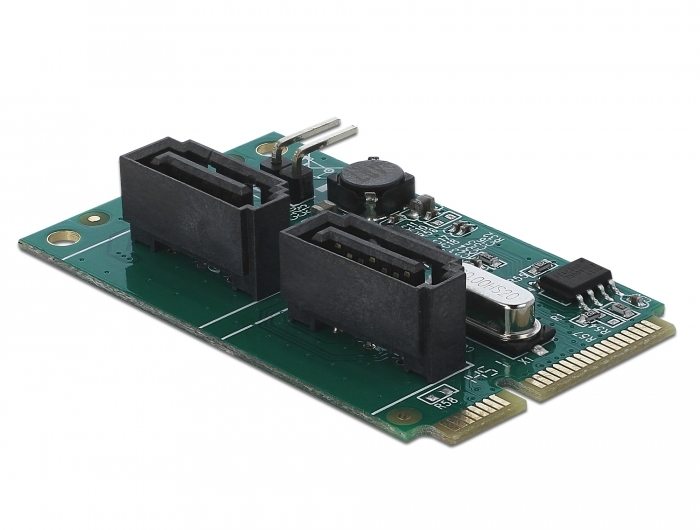

Delock Mini PCIe Converter to 2 x SATA with RAID

DELOCK

95264

New

This converter by Delock expands the system by two SATA ports. When using more than one SATA port, there is the possibility to use different RAID modes.
System requirements:
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• Motherboard with a free Mini PCIe slot with a PCIe interface
Specification:

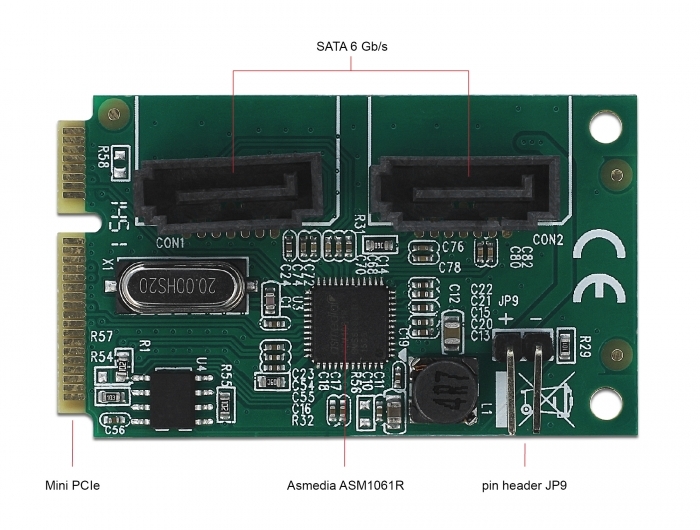

• Connectors:
  1 x Mini PCIe male
  2 x SATA 6 Gb/s 7 pin plug
  1 x 2 pin pin header for LED
• Chipset: Asmedia ASM1061R
• Interface: PCI Express revision 2.0
• Data transfer rate:
  SATA up to 6 Gb/s
  PCI Express up to 5 Gb/s
• Supports RAID 0, 1, SPAN
• Supports hard drive with Native Command Queue (NCQ) feature
• Supports SATA Port Multiplier
• Supports S.M.A.R.T.
• Supports TRIM
Package content:
• Mini PCIe module
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/95264/pdf.html?sprache=en
