Delock Mini PCIe Converter to 4 x SATA 6 Gb/s

DELOCK

95000

New

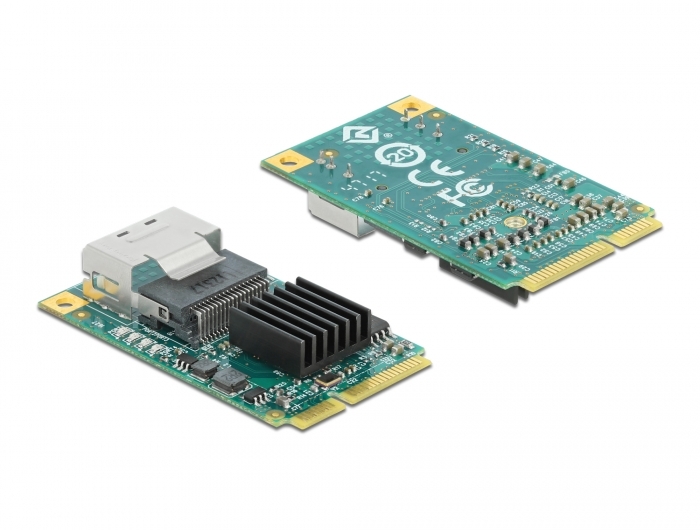

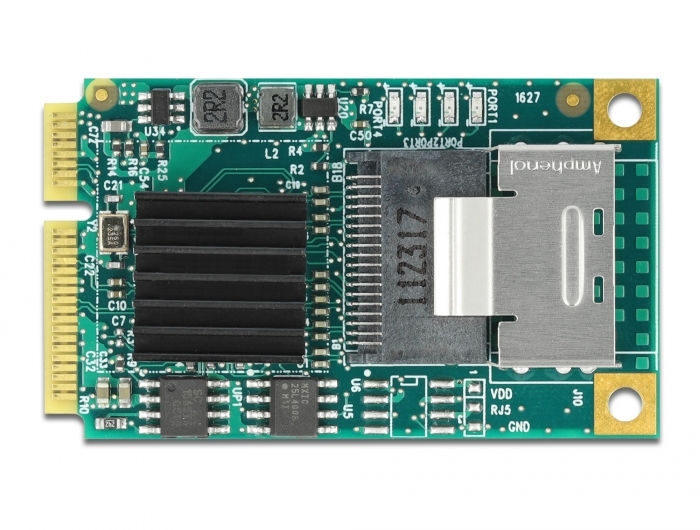

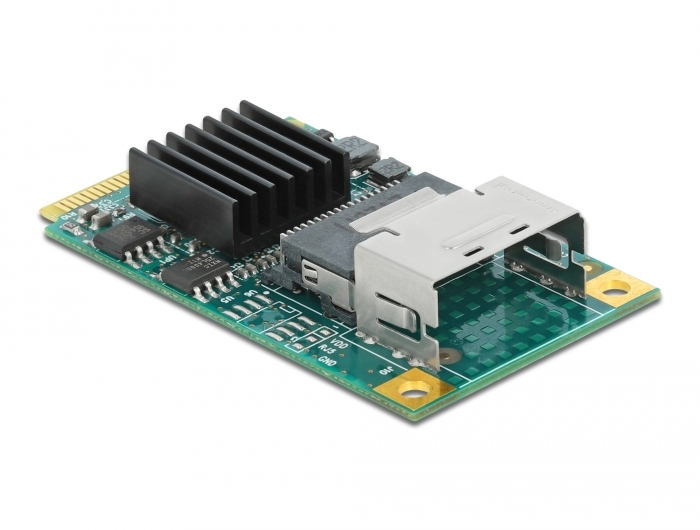

This Mini PCIe module by Delock expands the system by four internal SATA 6 Gb/s ports. It can be used to connect devices like SSDs, SATA HDDs, or similar drives.
System requirements:
• Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2016
• Motherboard with a free Mini PCIe slot with a PCIe interface
Specification:
• Connectors:
  1 x Mini PCI Express, Rev. 2.0
  1 x SFF-8087 female
• Chipset: Marvell 88SE9215
• Interface: PCI Express revision 2.0
• Form factor: Mini PCIe full size
• Data transfer rate:
  SATA up to 6 Gb/s
  PCI Express up to 5 Gb/s
• Supports SATA Port Multiplier
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Supports Serial ATA AHCI
• 4 x LED indicator
• Humidity: 5 ~ 95 %
• Storage temperature: 5 °C ~ 55 °C
Package content:
• Mini PCIe module

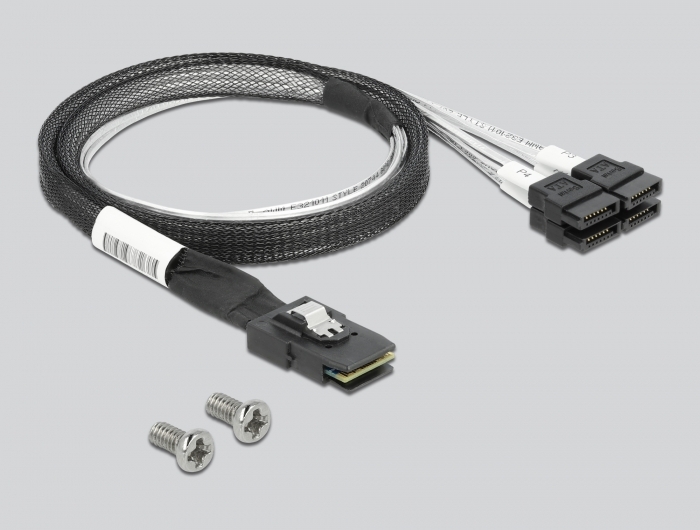

• Cable SFF-8087 male to 4 x SATA receptacle, length ca. 80 cm
• User manual
Data sheet:
http://www.delock.de/produkt/95000/pdf.html?sprache=en

Mini PCI Express
