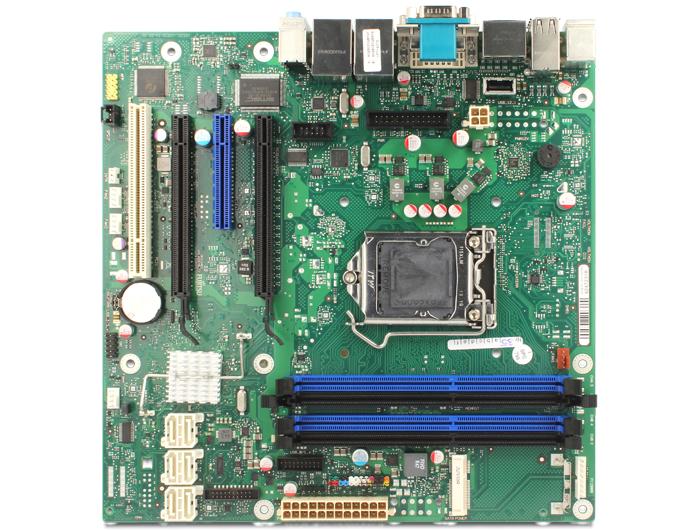

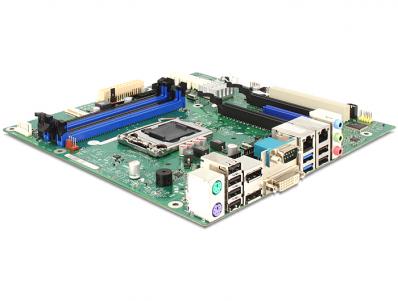

Mainboard Fujitsu D3231-S Industrial Micro ATX

Fujitsu

33100

New

Fujitsu Micro ATX Industrial Motherboard with Intel ® Q87 Express Chipset, DDR3 1600 SDRAM memory and the 4th-generation Intel ® CoreTM i3 / i5 / i7 processors support (Socket LGA1150). Designed & approved for an extended operating temperature range of 0 ° C to 60 ° C. and continuous operation (24/7)

More details

Description:
Fujitsu Micro ATX Industrial Motherboard with Intel ® Q87 Express Chipset, DDR3 1600 SDRAM memory and the 4th-generation Intel ® CoreTM i3 / i5 / i7 processors support (Socket LGA1150). Designed & approved for an extended operating temperature range of 0 ° C to 60 ° C. and continuous operation (24/7)

Specification:
24/7 Operation - Longlife components

Processor:
Socket LGA1150 for 4th generation Intel® Core i3, i5, i7 Haswell
Chipset: Intel® Q87 Express
Memory:
4 x Socket (1,5V) for DIMM Single Channel / Dual Channel DDR3-1333 MHz (CL9) and DDR3 1600MHz (CL11) SDRAM, unbuffered, No ECC - Max. 32GB
Graphics: Intel® HD (e.g. HD4600, depends on installed processor) DX11.1
Lan: Intel® i217LM / i210AT
Audio: Realtek ALC671

Espansions Slots:
1 x PCIe x16 Gen3 (16 lanes)
1 x PCIe x8 Gen2 (1 lane) (open slot)
1 x PCI x16 Gen2 (4 lanes)
1 x PCI

Storage:
6 x SATA 6Gb/s
1 x mSATA

Internal I/O:
1 x Frontpanel Audio (9-pin, HD Audio)
2 x UBB 3.0
2 x USB 2.0
1 x USB 2.0 Stick
1 x Serial (FIFO, 16550 compatible)
5 x Fan PSU
1 x Intrusion (Case Open)
1 x GPIO (8bit)
1 x Parallel (EPP/ECP) pin connenctor
1 x Power 24pin
1 x Power 4pin 12V

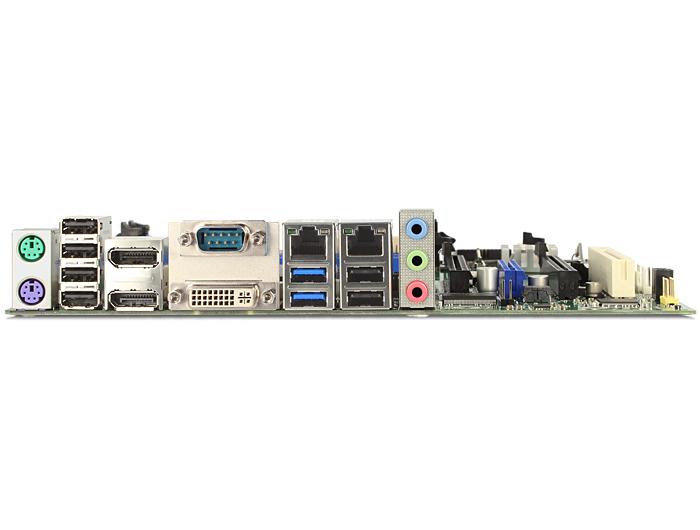

External I/O:
1 x DVI-I
2 x DisplayPort V1.2
3 x Audio
2 x GigaLan
2 x PS/2
2 x USB 3.0
6 x USB 2.0
1 x COM Port (RS232, FIFO, 16550 compatible)

System requirements:


Package content:
1 x Mainboard

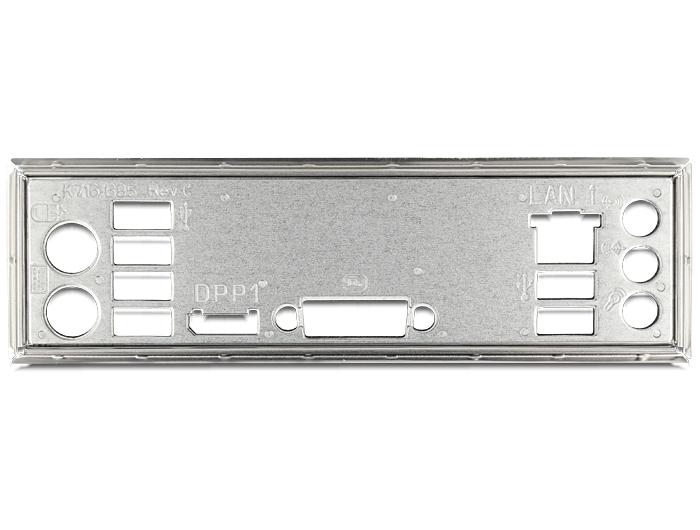

1 x I/O Shield
1 x Driver CD
