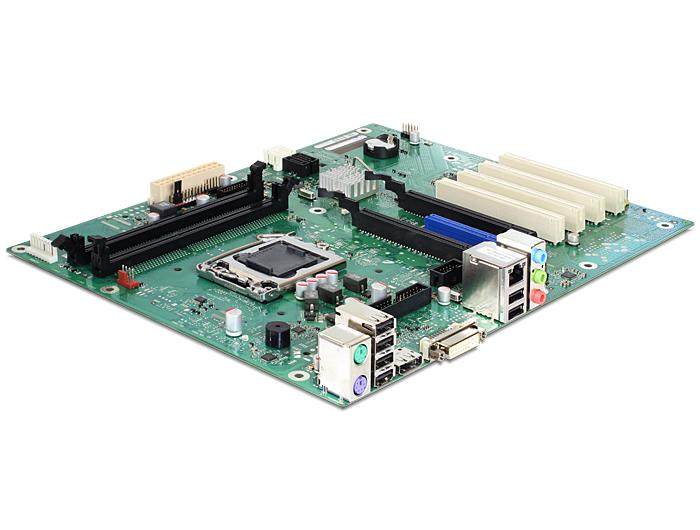

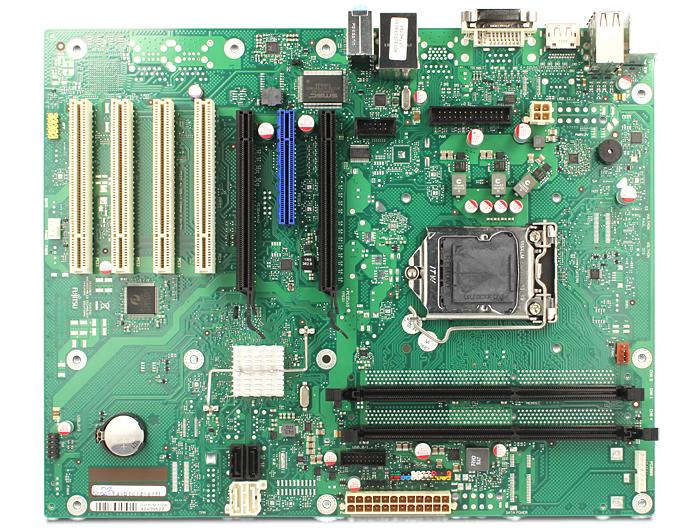

Mainboard Fujitsu D3235-S Industrial ATX 20 piece

Fujitsu

33101

New

Fujitsu industrial ATX motherboard with Intel ® H81 Express Chipset, DDR3 1600 SDRAM memory and the 4th-generation Intel ® CoreTM i3 / i5 / i7 processors support (Socket LGA1150). Designed & approved for an extended operating temperature range of 0 ° C to 60 ° C. and continuous operation (24/7)

More details

Description:
Fujitsu industrial ATX motherboard with Intel ® H81 Express Chipset, DDR3 1600 SDRAM memory and the 4th-generation Intel ® CoreTM i3 / i5 / i7 processors support (Socket LGA1150). Designed & approved for an extended operating temperature range of 0 ° C to 60 ° C. and continuous operation (24/7)

Specification:
24/7 Operation - Longlife components

Processor:
Socket: LGA1150 for 4th generation Intel® Core i3, i5, i7 Haswell
Chipset: Intel® H81 Express
Memory:
2 x Socket (1,5V) for DIMM Single Channel / Dual Channel DDR3-1333 MHz (CL9) and DDR3 1600MHz (CL11) SDRAM, unbuffered, No ECC - Max. 16GB
Graphics: Intel® HD (e.g. HD4600, depends on installed processor) DX11.1
Lan: Intel® i217LM
Audio: Realtek ALC671

Expansions Slots:
1 x PCIe x16 (Gen2)
1 x PCIe x16 (2 Lanes, Gen2)
1 x PCIe x8 (1 Lane, Gen2)
4 x PCI (32bit, 33MHz, Rev 2.3)

Storage:
2 x SATA 6Gb/s
2 x SATA 3Gb/s

Internal I/O:
1 x Frontpanel Audio (9pin, HD Audio)
2 x USB 3.0
4 x USB 2.0
1 x Serieal (FIFO, 16550 compatible)
Fan: CPU, AUX1, AUX2
1 x Parallel (EPP/ECP)
1 x Power 24 pin (BTX)
1 x Power 4pin (12V processor supply)

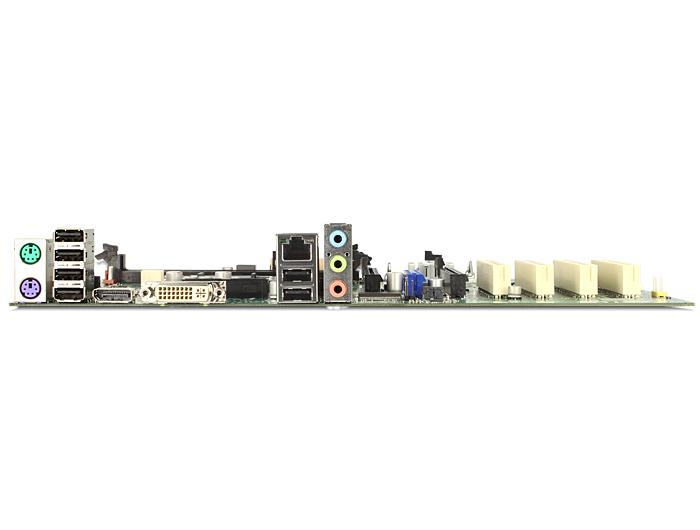

External I/O:
1 x DVI-I
1 x DisplayPort
3 x Audio
1 x GigaLan
2 x PS/2
6 x USB 2.0

System requirements:


Package content:
1 x Mainboard

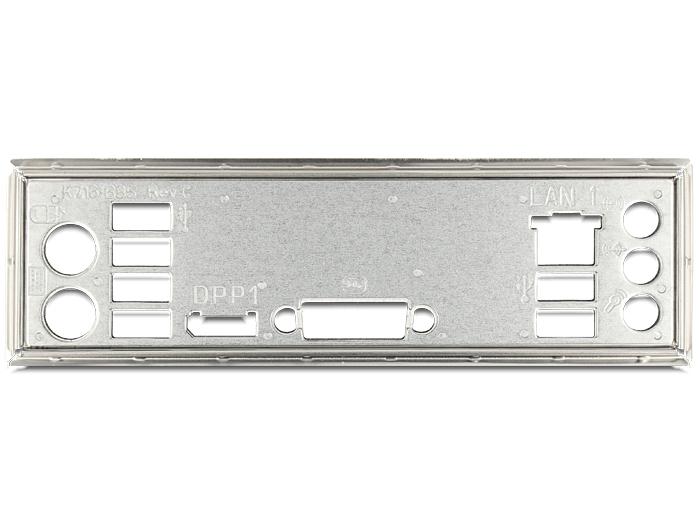

1 x I/O Shield
1 x Driver CD
