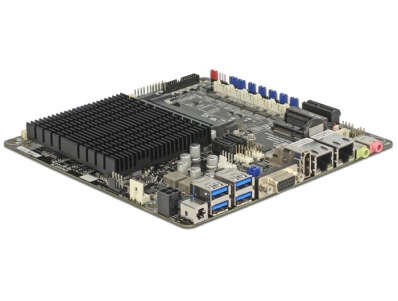

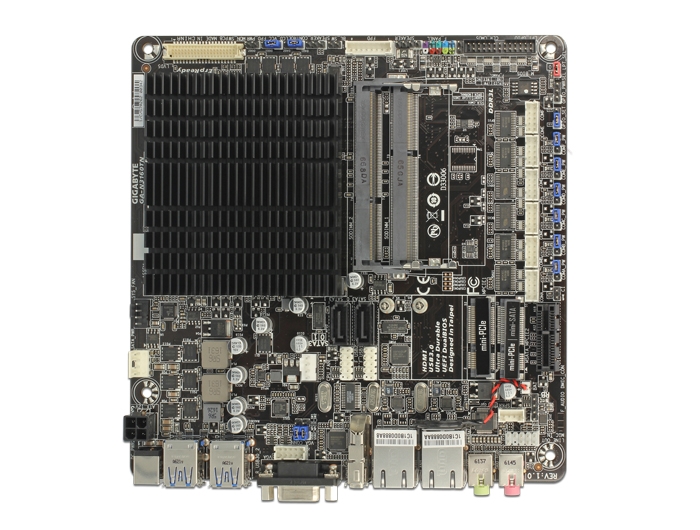

Mainboard Gigabyte GA-N3160TN Industrial Thin Mini-ITX - Fanless

Manufacturer: Gigabyte

Reference 33193

Condition: New

More info

The Gigabyte GA-N3160TN impresses with its high-quality components and ensures a long-term availability of up to 5 years. The integrated QuadCore CPU provides high performance and this with fanless operation. A large number of connections and interfaces provide numerous possibilities for expansion and a broad range of applications. The Thin Mini-ITX format allows installation in flat chassis variants and thus also extends the field of application.

Specification:
24/7 Operation - Extended Lifecycle up to 5 Years

Processor: Intel® Quad-Core Celeron® N3160 SoC (1.6 GHz), 2 MB Cache
Memory socket:
• 2 x DDR3L SO-DIMM, supporting up to 8 GB
• Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
• Dual channel memory architecture
• Support for DDR3L 1600 MHz memory modules
• Due to an SoC limitation, if a 1333 MHz memory is installed, it will be downgraded to 1066 MHz.
• Support for non-ECC memory modules
Onboard Graphics: Integrated in the SoC:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz
• Maximum shared memory of 512 MB
Audio:
• Realtek® ALC887 codec
• High Definition Audio
• 2/4/5.1-channel
LAN: 2 x Realtek® GbE LAN chips (10/100/1000 Mbit)

Expansion Slots:
• 1 x PCI Express x1 slot, running at x1
• 1 x Mini PCIe slot half size (mPCIe x1)
• The PCI Express x1 and Mini PCIe slots conform to PCI Express 2.0 standard.

Storage:
• 2 x SATA 6 Gb/s connectors
• 1 x mSATA connector (mSATA/mPCIe 2)

Internal I/O:
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x System fan header
• 2 x SATA 6Gb/s connectors
• 1 x mSATA connector (mSATA - mPCIe 2)
• 1 x SATA power connector
• 1 x Front panel header
• 1 x Front panel audio header
• 1 x Battery cable header
• 2 x USB 2.0/1.1 headers
• 6 x Serial port headers
• 6 x Serial port power select jumpers
• 1 x D-Sub header
• 1 x Digital microphone header
• 1 x LVDS header
• 1 x LVDS drive voltage jumper
• 1 x Flat panel display header
• 1 x Flat panel display power jumper
• 1 x Flat panel display switch header
• 1 x Backlight switch header
• 1 x Speaker header
• 1 x Buzzer header
• 1 x Chassis intrusion header
• 1 x LPT/GPIO header
• 1 x Volume control header
• 1 x LPT configuration jumper
• 1 x GPIO power selection jumper
• 1 x GPIO status configuration jumper
• 2 x Jumpers for configuring USB signals
• 1 x Clear CMOS jumper
• 1 x DC Jack 12V and 19-24V

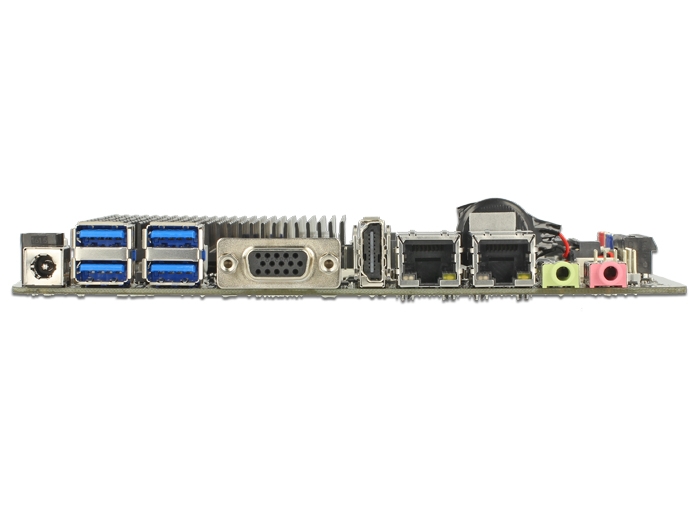

External I/O:
• 1 x DC In power connector
• 1 x HDMI port
• 1 x D-Sub port
• 4 x USB 3.0/2.0 ports
• 2 x RJ-45 ports
• 2 x Audio jacks (Line Out, Mic In)

BIOS:
• 2 x 64 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
For Operating Systems:
• Windows 10/8.1/7 64-bit
• Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
Form factor: Thin Mini-ITX 17 cm x 17 cm
