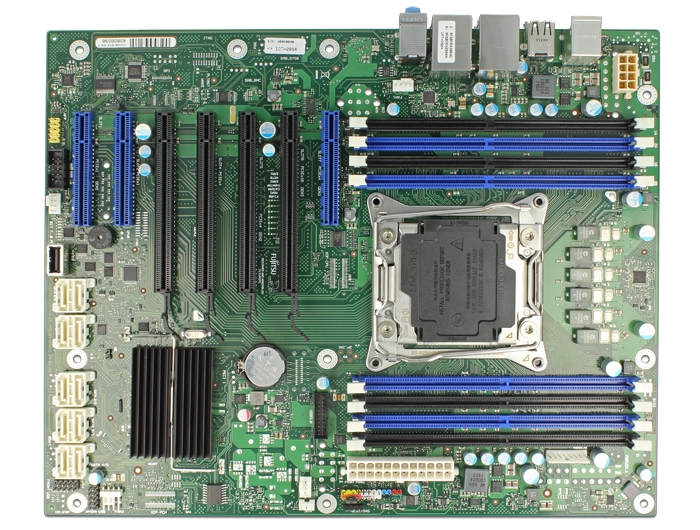

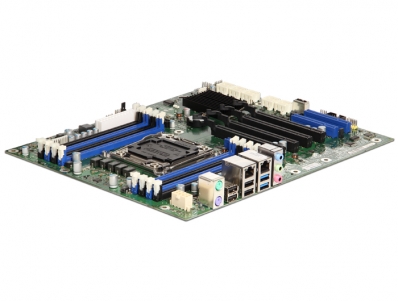

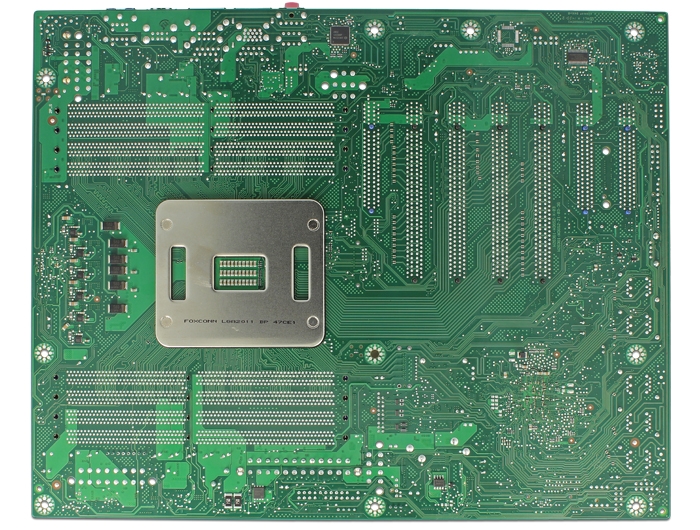

Mainboard Fujitsu D3348-B1 Industrial ATX

Fujitsu

33194

New

The FUJITSU Extended Lifecycle Mainboard D3348-B is a high performance ATX Board designed and manufactured for 24/7 continuous operation. The D3348-B is equipped with the Intel® C612 Chipset and supports the Intel® Xeon® Processor Series E5-26xx and E5-15xx, as well as Intel® Core™ i7 processors. For perfect expandability there are seven PCIe slots whereof four x Gen 3 and three Gen2 as well as USB 3.0. The 10 x SATA III 600 interfaces support deletion RAID functionality. Euipped with Dual Intel® GbE LAN, it supports iAMT 9.1 / vPro. The FUJITSU D3348-B is the optimal solution for demanding applications in semi-industrial environments.
Specification:
24/7 Operation - Extended Lifecycle Series

Processor socket for:
Intel® Xeon® E5-26xx (V3) series
Intel® Xeon® E5-16xx (V3) series
Intel® Core i7 58xx / 59xx series
Compatible with LGA2011-R3 (up to 160W TDP)
Chipset: Intel® Wellsburg C612
Memory:
8 x Socket for DDR4, max 128GB, Single-/Dual-/Triple-/Quad-Channel
2133 MHz (CL15), single rang / dual rang RDIMM, 1,2V
ECC / non-ECC support (depends on install processor)

Lan: Intel® i217LM / i210AT with 10/100/1000 MBit/s, iAMT, Wake on Lan
Audio: Realtek ALC671, 5.1 channel HD

Expansions slots:
2 x PCIe x16 (16 lanes Gen3)
1 x PCIe x16 (4 Lanes, Gen3)
1 x PCIe x16 (4 Lanes, Gen2)
1 x PCIe x8 (4 Lanes, Gen3)
2 x PCIe x8 (1 Lane, Gen2)

Storage:
10 x SATA 6Gb/s with RAID 0, 1, 5, 10 - eSATA support

Internal I/O:
1 x Frontpanel HD Audio (9Pin)
2 x USB 3.0
4 x USB 2.0
1 x USB Stick
1 x Serial (FIFO, 16550 compatible)
5 x Fan
1 x Intrusion (Case open)
1 x Power 24pin (BTX)
1 x Power 8pin (additional 12V supply)

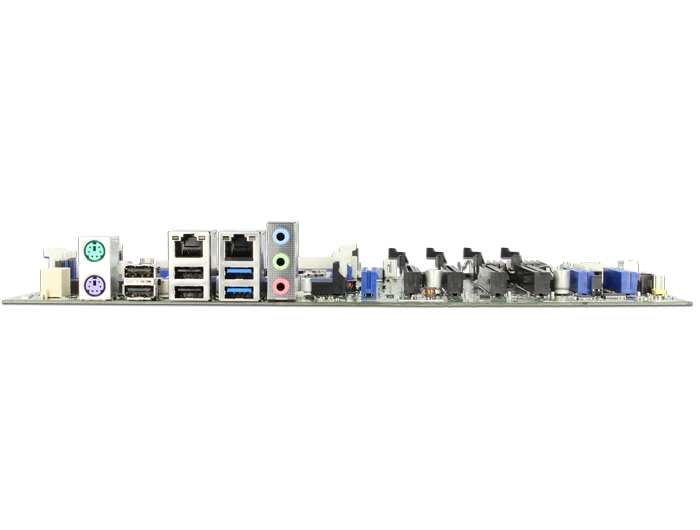

External I/O:
2 x USB 3.0
4 x USB 2.0
2 x PS/2
2 x GigaLan
3 x Audio
Package content:
Mainboard
Treiber DVD
I/O Shield
