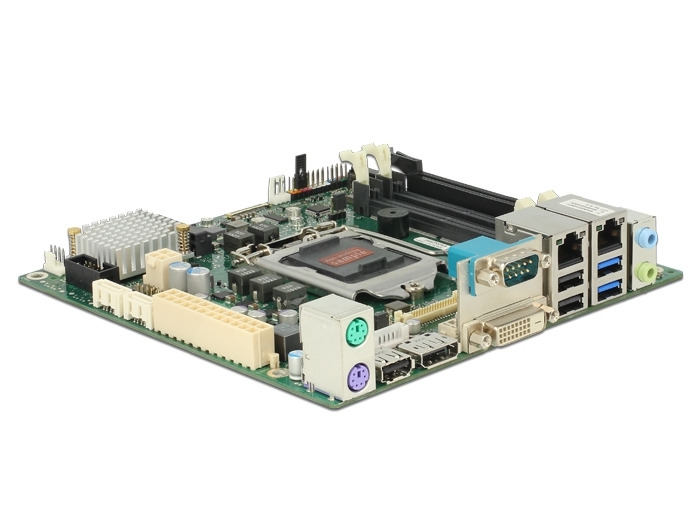

Mainboard Fujitsu D3434-S2 Industrial Mini ITX

Manufacturer: Fujitsu

Reference 33206

Condition: New

More info

Processor socket: LGA 1151, up to 65W TDP Intel® Core i7/i5/i3 - (6th and 7th generation) processor series Intel® Pentium / Celeron processor series Chipset: Intel® H110 Express Memory socket: 2 x SO Dimm (1,2V), up to 32GB, Dual Channel, DDR 4 - 2133 (CL 15), SDRam, unbuffered, non ECC Effective memory speed depends on installed processor Graphics: Intel® HD Graphics, DX12, Embedded Display Port (2 lanes supported) DVI-D, 2 x Display Port V1.2, Dual Channel 24 bit LVDS (max. 3 indep. displays) Audio: Realtec ALC671, 5.1 channel, HD Audio codec LAN: Intel® i219 LM & i210 AT with 10/100/1000 Mbit/sExpansions slot: 1 x PCIe x 16 (Gen 3) 1 x Mini PCIe (halfsize / fullsize, incl. USB 2.0)Storage: 4 x SATA 6 Gb/s 1 x M.2 (2242 / 2260) for SATA based modulesInternal I/O: 2 x USB 3.0 2 x USB 2.0 1 x Serial (COM 2, RS 232) 1 x S/PDIF out 1 x Frontpanel Audio (9 Pin, HD Audio & Legacy Audio AC 97) 1 x LVDS 1 x LVDS Backpanel 1 x Embedded Display Port 1 x Fan CPU 1 x Fan AUX1 1 x Intrusion (Case open) 1 x GPIO (8 Bit) 1 x ATX power (24 pin + 4 pin) 1 x 12V PSU onlyExternal I/O: 1 x DVI-D 2 x Display Port V1.2 2 x Audio 2 x GigaLAN 2 x PS/2 2 x USB 3.0 3 x USB 2.0 1 x Serial (COM 1, RS 232)Packungsinhalt: Mainboard I/O Shield Driver DVD

Specification:
Industrial series
Designed for 24/7 continous operation

Processor socket:
LGA 1151, up to 65W TDP
Intel® Core i7/i5/i3 - (6th and 7th generation) processor series
Intel® Pentium / Celeron processor series
Chipset: Intel® H110 Express
Memory socket: 2 x SO Dimm (1,2V), up to 32GB, Dual Channel,
DDR 4 - 2133 (CL 15), SDRam, unbuffered, non ECC
Effective memory speed depends on installed processor
Graphics:
Intel® HD Graphics, DX12, Embedded Display Port (2 lanes supported)
DVI-D, 2 x Display Port V1.2, Dual Channel 24 bit LVDS (max. 3 indep. displays)
Audio: Realtec ALC671, 5.1 channel, HD Audio codec
LAN: Intel® i219 LM & i210 AT with 10/100/1000 Mbit/s

Expansions slot:
1 x PCIe x 16 (Gen 3)
1 x Mini PCIe (halfsize / fullsize, incl. USB 2.0)

Storage:
4 x SATA 6 Gb/s
1 x M.2 (2242 / 2260) for SATA based modules

Internal I/O:
2 x USB 3.0
2 x USB 2.0
1 x Serial (COM 2, RS 232)
1 x S/PDIF out
1 x Frontpanel Audio (9 Pin, HD Audio & Legacy Audio AC 97)
1 x LVDS
1 x LVDS Backpanel
1 x Embedded Display Port
1 x Fan CPU
1 x Fan AUX1
1 x Intrusion (Case open)
1 x GPIO (8 Bit)
1 x ATX power (24 pin + 4 pin)
1 x 12V-only PSU

External I/O:
1 x DVI-D
2 x Display Port V1.2
2 x Audio
2 x GigaLAN
2 x PS/2
2 x USB 3.0
3 x USB 2.0
1 x Serial (COM 1, RS 232)

Package content:
1 x Mainboard
1 x I/O shield
1 x DVD driver
