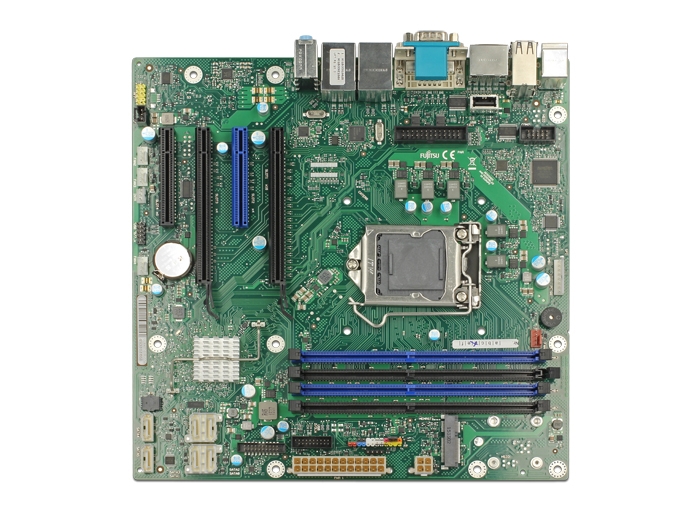

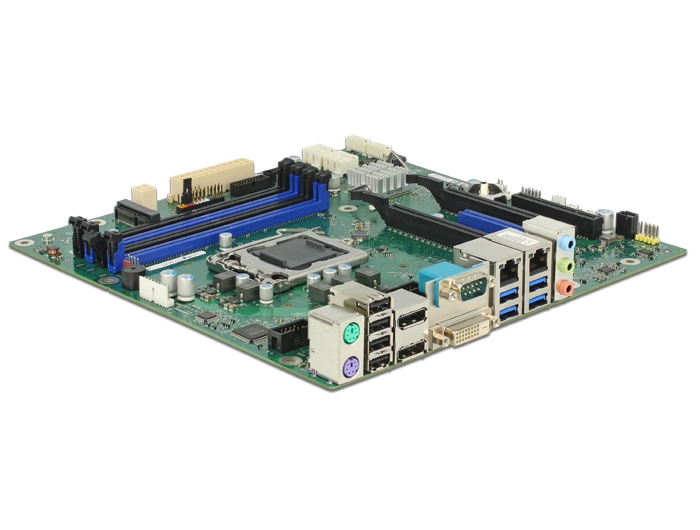

Mainboard Fujitsu D3441-S Industrial Micro ATX

Fujitsu

33204

New

Industrial Series Designed for 24/7 continuous operationProcessor socket: LGA 1151, maximum 65W TDP Intel® Core i3/i5/i7 - 6th and 7th generation processor series Intel Pentium®, Future Celeron® processor series Chipset: Intel® Q170 Express Memory socket: 4 x DIMM DDR4 maximum 64 GB, Dual channel, 2133 MHz (CL15), UDIMM, 1.2V/2.5V, 288pin, Non ECC Graphics: Intel® HD Graphics (depends on installed processor) DX12 Audio: Realtek ALC671, 5.1 Channel HD Audio Codec LAN: Intel i219LM & i210AT with 10/100/1000 Mbit/sExpansions slot: 1 x PCIe x16 (16 Lanes, Gen3) 1 x PCIe x16 (4 Lanes, Gen3 1 x PCIe x8 (4 Lanes, Gen3) 1 x PCIe x8 (1 Lane, Gen3)Storage: 6 x SATA 6Gb/s 1 x mSATA (incl. USB)Internal I/O: 2 x USB 3.0 2 x USB 2.0 1 x USB 2.0 stick 1 x Serial (COM2, RS232) 4 x Fan (PSU, CPU, AUX1, AUX2, AUX3) 1 x Intrusion (Case open) 1 x GPIO (8Bit) 1 x Parallel port connector 1 x S/PDIF out 1x Frontpanel Audio (9-Pin, HD Audio 6 Legacy Audio AC97) 1 x Power ATX (24pin + 4pin) External I/O: 2 x DisplayPort (V1.2) 1 x DVI-D 3 x Audio (Mic-in, Line-in, Line-out) 2 x GigaLAN (RJ45) 2 x PS/2 4 x USB 3.0 4 x USB 2.0 1 x Serial (COM1, RS232)
Specification:
Processor socket:
LGA 1151, maximum 65W TDP
Intel® Core i3/i5/i7 - 6th and 7th generation processor series
Intel Pentium®, Future Celeron® processor series
Chipset: Intel® Q170 Express
Memory socket:
4 x DIMM DDR4 maximum 64 GB, Dual channel, 2133 MHz (CL15),
UDIMM, 1.2V/2.5V, 288pin, Non ECC
Graphics:
Intel® HD Graphics (depends on installed processor) DX12
Audio: Realtek ALC671, 5.1 Channel HD Audio Codec
LAN: Intel i219LM & i210AT with 10/100/1000 Mbit/s

Expansions slot:
1 x PCIe x16 (16 Lanes, Gen3)
1 x PCIe x16 (4 Lanes, Gen3
1 x PCIe x8 (4 Lanes, Gen3)
1 x PCIe x8 (1 Lane, Gen3)

Storage:
6 x SATA 6Gb/s
1 x mSATA (incl. USB)

Internal I/O:
2 x USB 3.0
2 x USB 2.0
1 x USB 2.0 stick
1 x Serial (COM2, RS232)
4 x Fan (PSU, CPU, AUX1, AUX2, AUX3)
1 x Intrusion (Case open)
1 x GPIO (8Bit)
1 x Parallel port connector
1 x S/PDIF out
1x Frontpanel Audio (9-Pin, HD Audio 6 Legacy Audio AC97)
1 x Power ATX (24pin + 4pin)

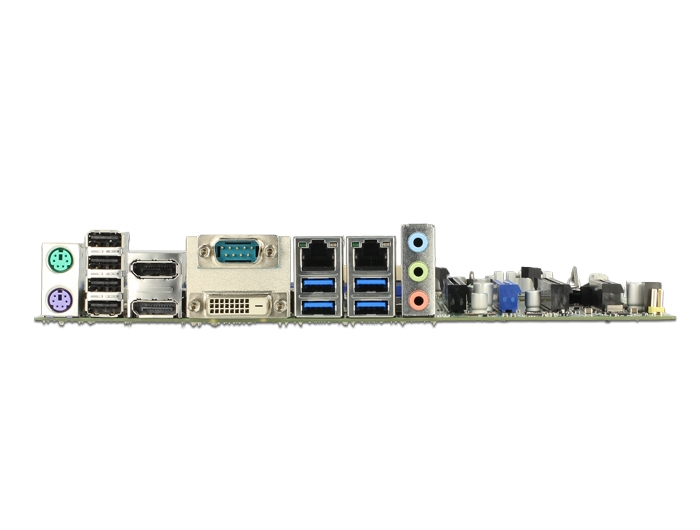

External I/O:
2 x DisplayPort (V1.2)
1 x DVI-D
3 x Audio (Mic-in, Line-in, Line-out)
2 x GigaLAN (RJ45)
2 x PS/2
4 x USB 3.0
4 x USB 2.0
1 x Serial (COM1, RS232)
Package content:
Mainboard
I/O Shield
Driver DVD
