Delock Easy 45 Module D-Sub 9 pin female to 10 pin Terminal Block 22.5 x 45 mm

Reference 81350

Condition: New

More info

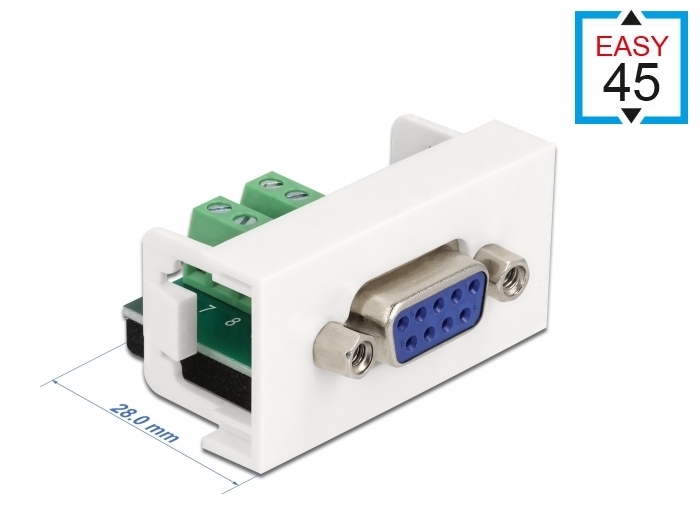

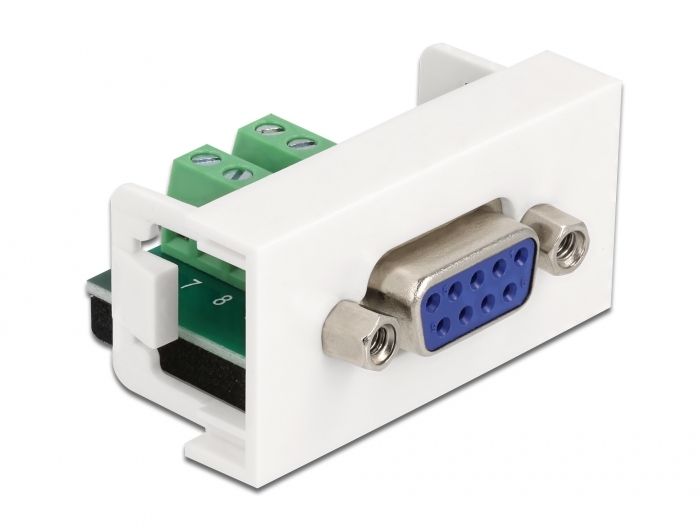

This Easy 45 module by Delock is designed to provide a D-Sub female port. The simple snap-in mechanism ensures that the module is firmly in place and can be easily removed if necessary.

Easy 45 connects
Easy 45 is a variable, modular system that allows components such as sockets, HDMI or USB connections to be added according to your needs. The Easy 45 modules are standardised and can be mounted in various module holder or cable ducts. Easy 45 builds the interface between electrical, network and system installation and many peripheral devices such as TV, monitors, printers, laptops and much more.

System requirements:
• A free module port Delock Easy 45

Specification:
• Connectors:
external: 1 x D-Sub 9 pin female

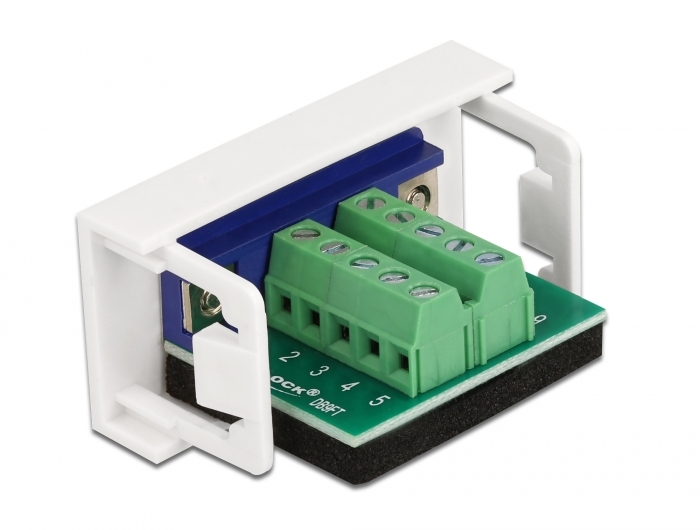

internal: 1 x 10 pin terminal block screw terminal
• Material: PC plastic
• Suitable for module holder Delock Easy 45
• Suitable for 45 mm cable duct with minimum depth 45 mm
• Module size: 22.5 x 45 mm
• Dimensions (LxWxH): ca. 22.5 x 45.0 x 32.0 mm
• Colour: white

Package content:
• Easy 45 module

Data sheet:
http://www.delock.de/produkt/81350/pdf.html?sprache=en
