Delock Easy 45 Module D-Sub 9 pin male to 6 pin Terminal Block 22.5 x 45 mm

DELOCK

81349

New

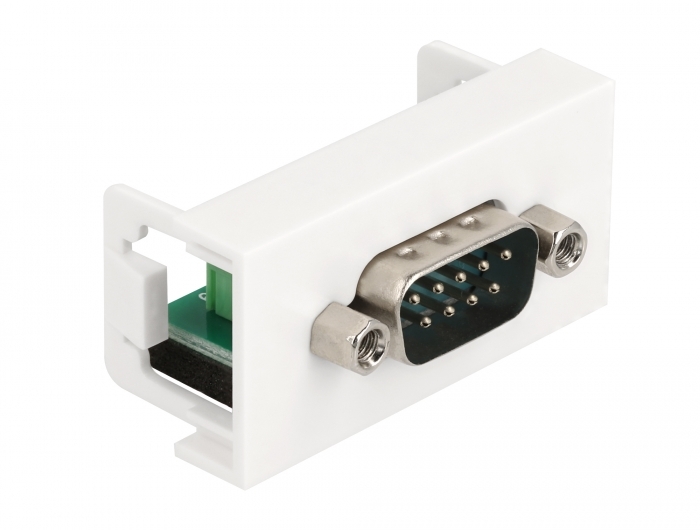

This Easy 45 module by Delock is designed to provide a D-Sub male port. The simple snap-in mechanism ensures that the module is firmly in place and can be easily removed if necessary.

Easy 45 connects
Easy 45 is a variable, modular system that allows components such as sockets, HDMI or USB connections to be added according to your needs. The Easy 45 modules are standardised and can be mounted in various module holder or cable ducts. Easy 45 builds the interface between electrical, network and system installation and many peripheral devices such as TV, monitors, printers, laptops and much more.
System requirements:
• A free module port Delock Easy 45
Specification:
• Connectors:
  external: 1 x D-Sub 9 pin male

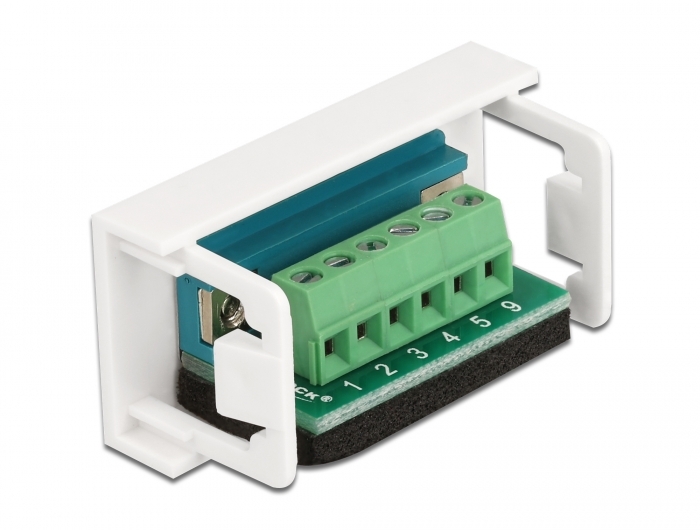

  internal: 1 x 6 pin terminal block screw terminal
• Material: PC plastic
• Suitable for module holder Delock Easy 45
• Suitable for 45 mm cable duct with minimum depth 45 mm

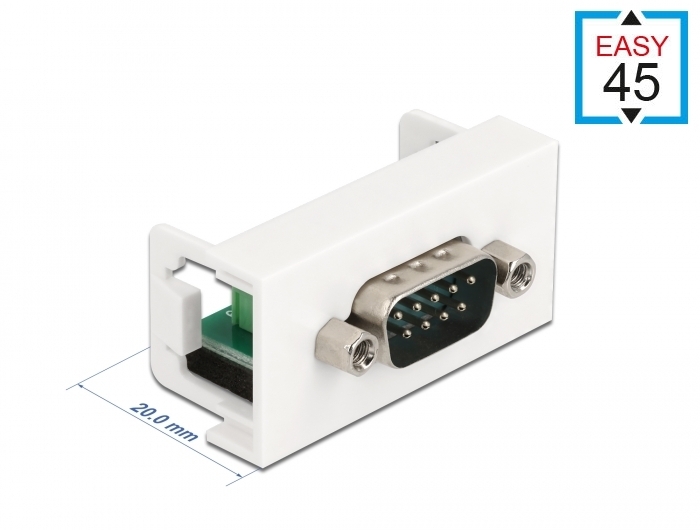

• Module size: 22.5 x 45 mm
• Dimensions (LxWxH): ca. 22.5 x 45.0 x 25.0 mm
• Colour: white
Package content:
• Easy 45 module
Data sheet:
http://www.delock.de/produkt/81349/pdf.html?sprache=en
