Equip Patchkabel Cat8.1 S/FTP 2xRJ45 0.50m grün LSZH

EQUIP

608047

New

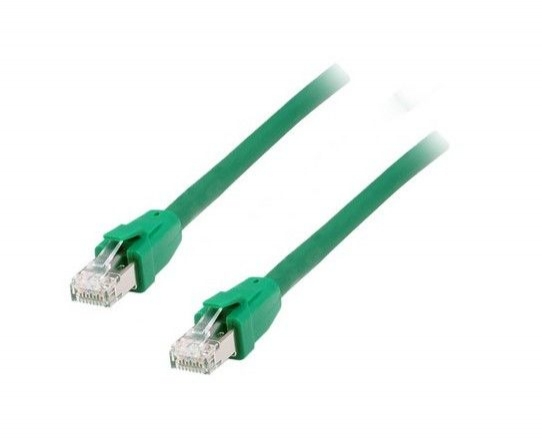

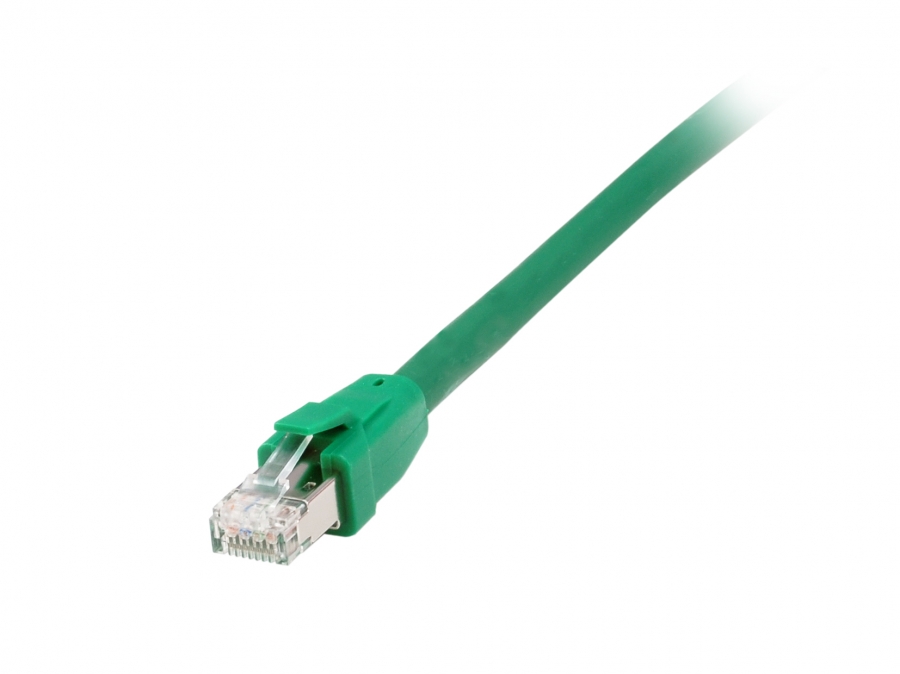

The equip® Cat 8.1 S/FTP Patch Cord is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat 8.1 cable is able to deliver ultrahigh and error-free performance in the most demanding network environments, specially for 40G application.

Cable length0.5 m
Cable standardCat8.1
Cable shieldingS/FTP (S-STP)
Connector 1RJ-45
Connector 2RJ-45
Product colourGreen
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
Jacket materialLow smoke zero halogen (LSZH)
Cable shapeRound
Conductor typeStranded
Conductor materialCopper
Cabling technology40GBase-T
Ethernet interface type10 Gigabit Ethernet, 40 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Networking standardsIEEE 802.3, IEEE 802.5
AWG wire size24/7
Data transfer rate40000 Mbit/s
Frequency2000 MHz
Power over Ethernet (PoE)
Power over Ethernet (PoE) type supportedPoE+, PoE++ (4PPoE)
Plug and Play
Country of originChina
Width8 mm
Depth8 mm
Height500 mm
Outer diameter8 mm
Weight51 g
Quantity per pack1 pc(s)
Package width275 mm
Package depth16 mm
Package height175 mm
Package weight60 g

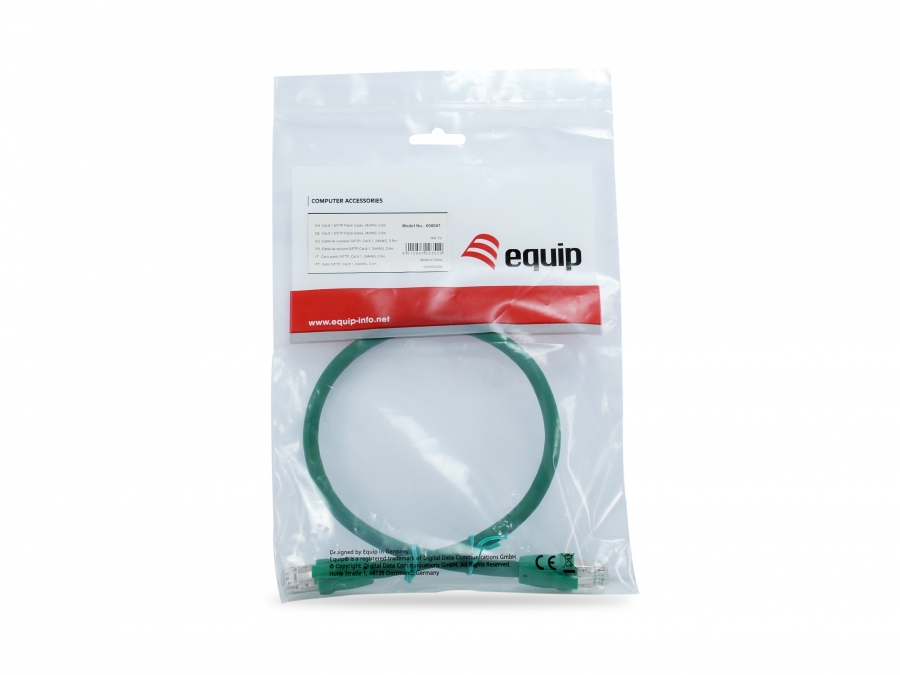

Package typePolybag
Sustainability compliance
Sustainability certificatesCE, REACH, RoHS
Doesn't containHalogen
Harmonized System (HS) code84733080
Master (outer) case width300 mm
Master (outer) case length380 mm
Master (outer) case gross weight11.2 kg
Master (outer) case height400 mm
Products per master (outer) case200 pc(s)

Network RJ45 (cat 8)
