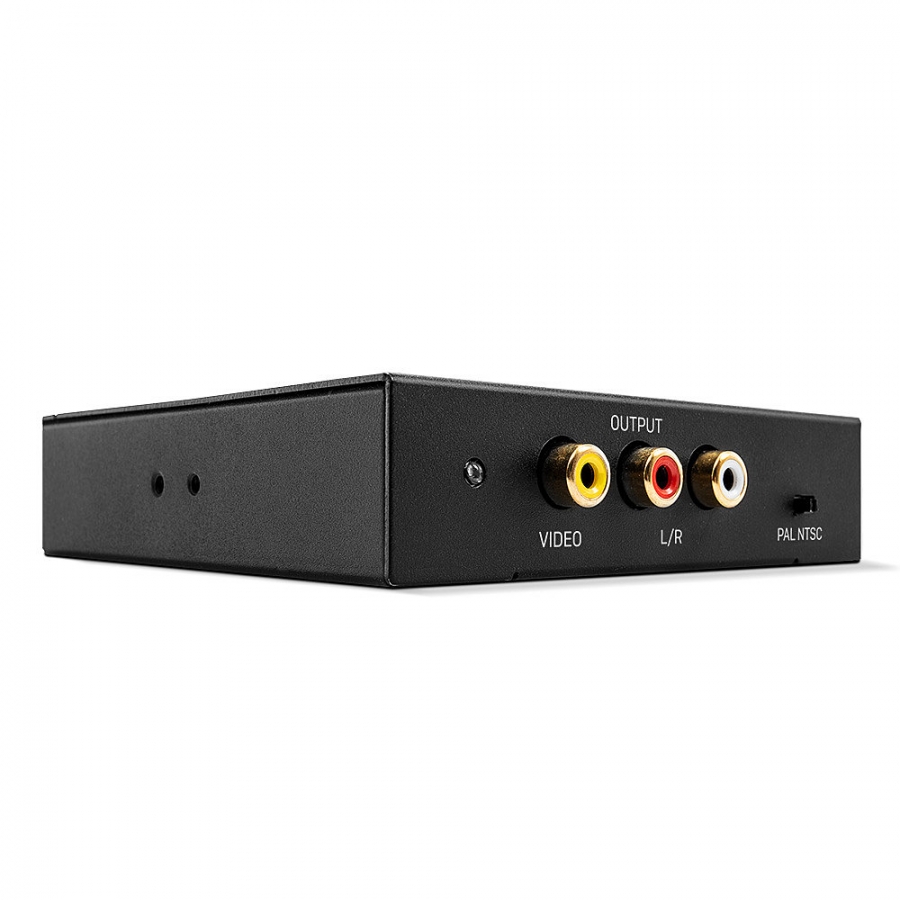

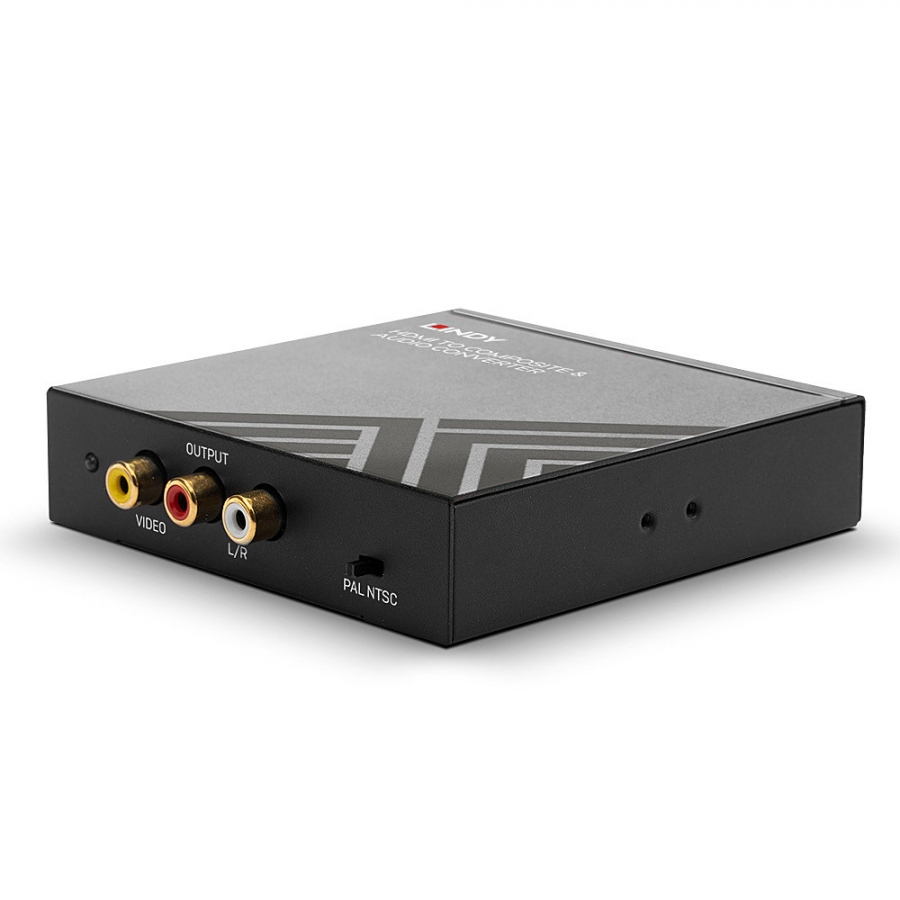

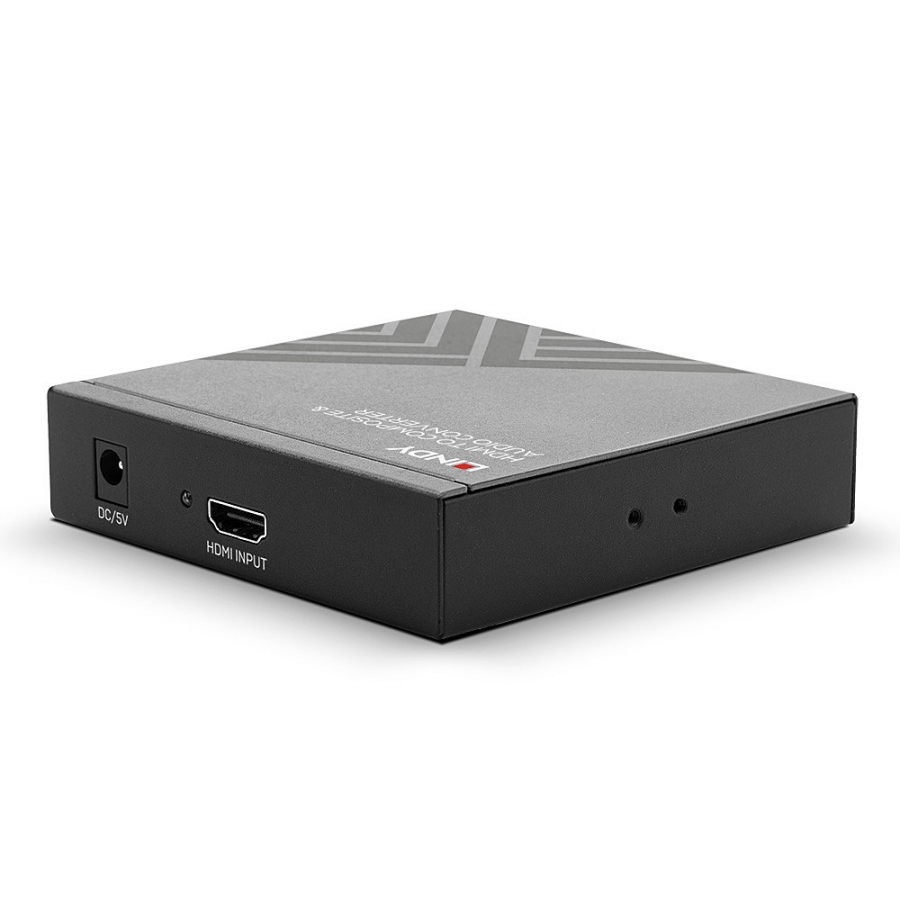

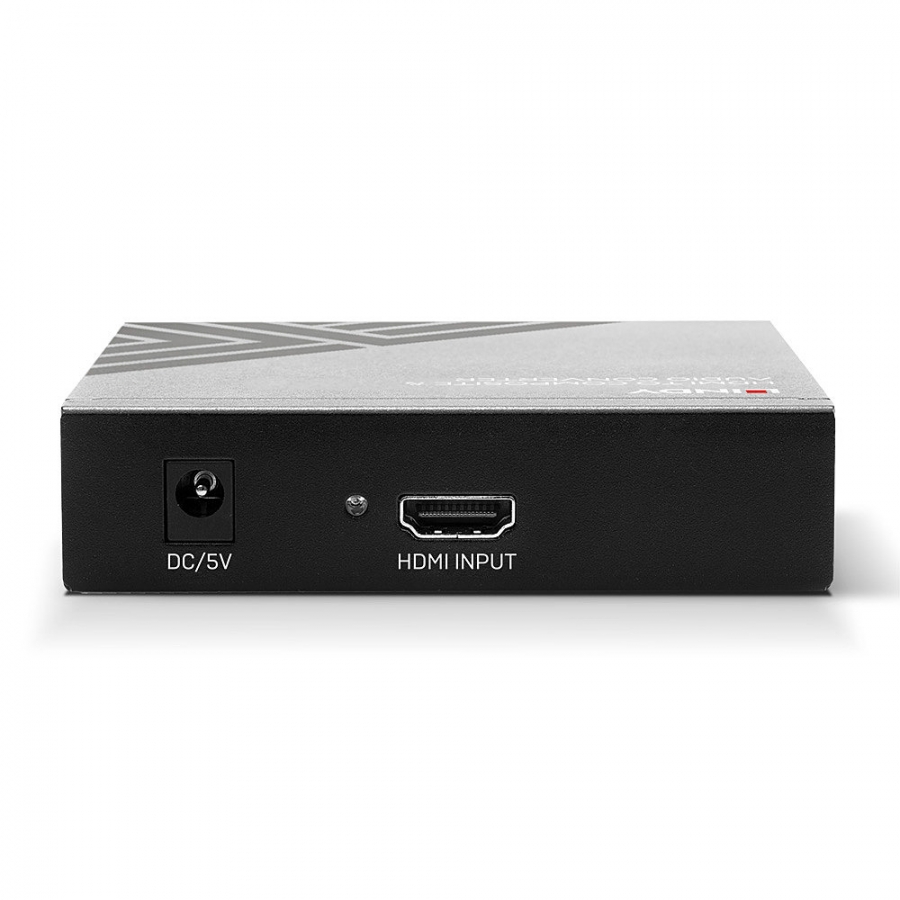

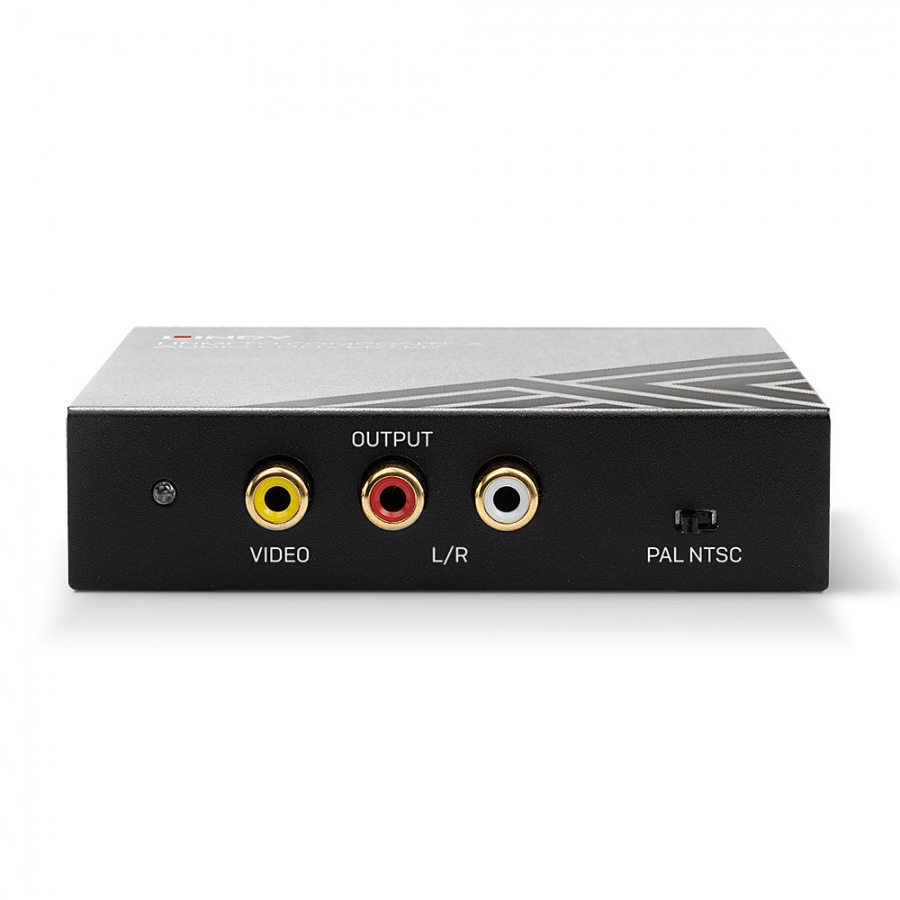

LINDY HDMI to Composite & Stereo Audio converter

Lindy

38393

New

Connects a digital HDMI source device to composite PAL or NTSC displays Supports HDMI resolutions up to 1920x1080 @ 60Hz Integrated switching controls allow the user to quickly alternate between output formats. Professional compact design provides flexibility for installation. 2-year warrantyThe Lindy HDMI to Composite & Stereo Audio Converter is a compact device which simply connects modern digital AV equipment, to analogue displays. Ideal for use in presentations, tradeshows, retail and entertainment when newer HDMI devices must be connected to legacy displays and projectors.This easy to use, compact device supports Full HD input resolutions and audio from HDMI and converts this into Composite & Stereo audio signals. Simple, integrated controls allow the user to quickly switch between output video formats depending on the display.Please note: The HDMI Standard does not allow analogue conversion of HDCP protected video content. For HDCP protected HDMI signals, no output on the analogue video or audio connectors will be generated.

Housing materialMetal
CertificationCE, FCC, RoHS, REACH, California Proposition 65
Maximum video resolution1920 x 1080 pixels
Supported video modes480i, 576i
Analog signal format systemNTSC, PAL
Host interfaceHDMI
Output interfaceComposite + RCA
DC-in jackY
Input voltage5 V
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 85%
Width102 mm
Depth100 mm
Height25 mm
Weight295 g
Cables includedDC
ManualY
Package width220 mm
Package depth190 mm
Package height55 mm
Package weight315 g
Harmonized System (HS) code85176990
