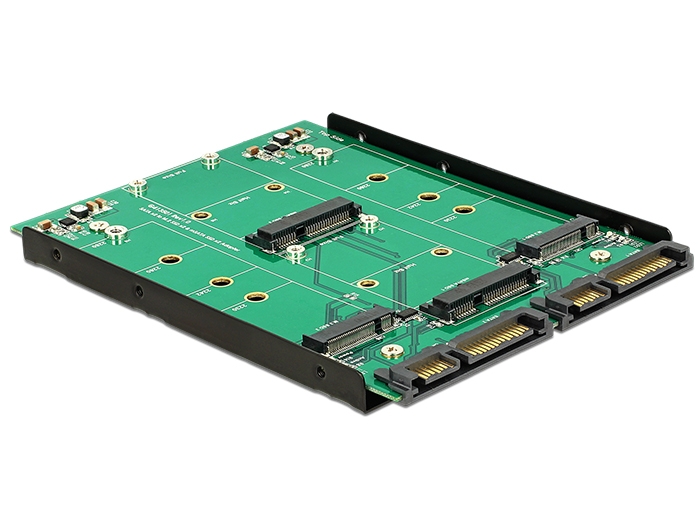

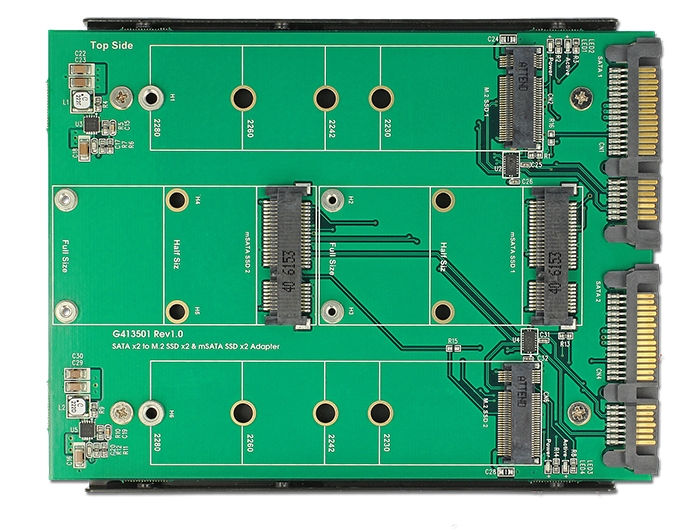

Delock 3.5″ Converter 2 x SATA 22 pin > Dualport 2 x M.2 / 2 x mSATA

DELOCK

62946

New

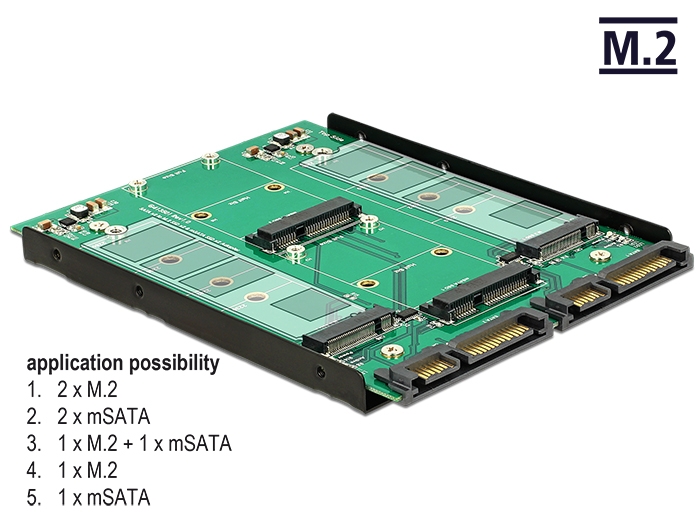

This Delock converter enables the usage of up to two SSDs simultaneously. It can be used to connect M.2 SSDs in 2280, 2260, 2242 and 2230 format and mSATA SSDs in full size and half size format. The converter can be installed into the system through the SATA interfaces.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.17.x / Kernel 4.x.x
• Two free SATA 22 pin interfaces
Specification:
• Connectors:
  2 x SATA 6 Gb/s 22 pin plug >
  2 x 67 pin M.2 key M slot
  2 x mSATA slot (half size / full size)
• Interface: SATA
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B
  or key B+M based on SATA
• Maximum height of the components on the module: 1.35 mm,
  application of double-sided assembled modules supported
• Data transfer rate up to 6 Gb/s
• Maximum power for modules: 3 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Bootable
• LED indicator
• Dimensions (LxWxH): ca. 132 x 102 x 10 mm
Package content:
• 3.5″ Converter SATA > M.2 / mSATA

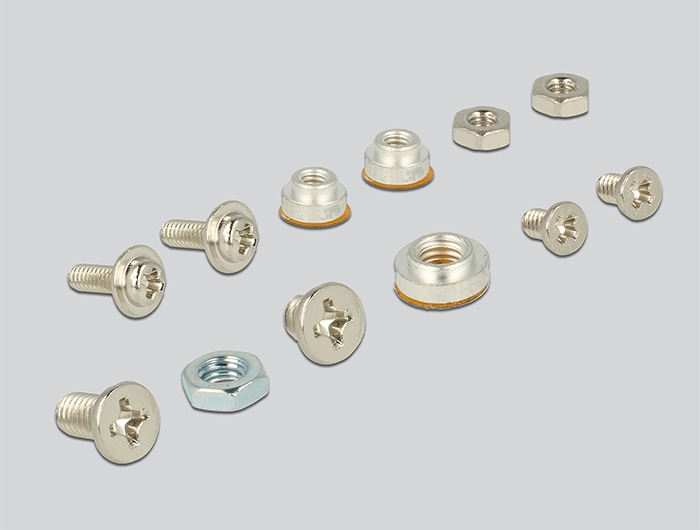

• Mounting material
• User manual
Data sheet:
http://www.delock.de/produkt/62946/pdf.html?sprache=en
