Delock Converter USB 3.1 Micro-B female > 1 x SATA / 1 x M.2 Key B / 1 x mSATA

DELOCK

62867

New

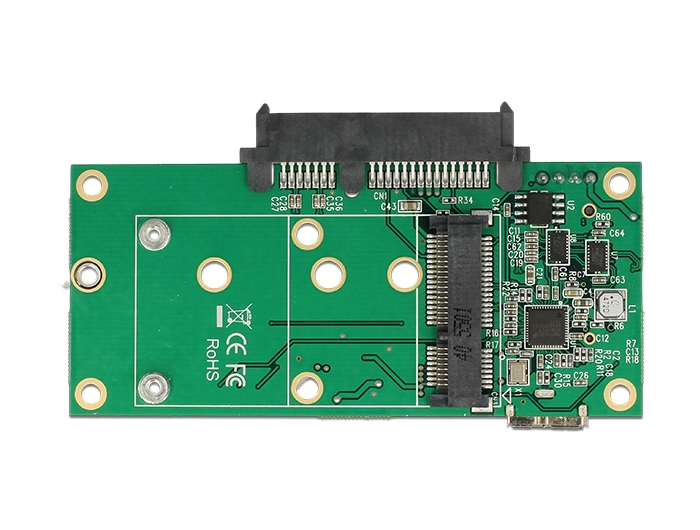

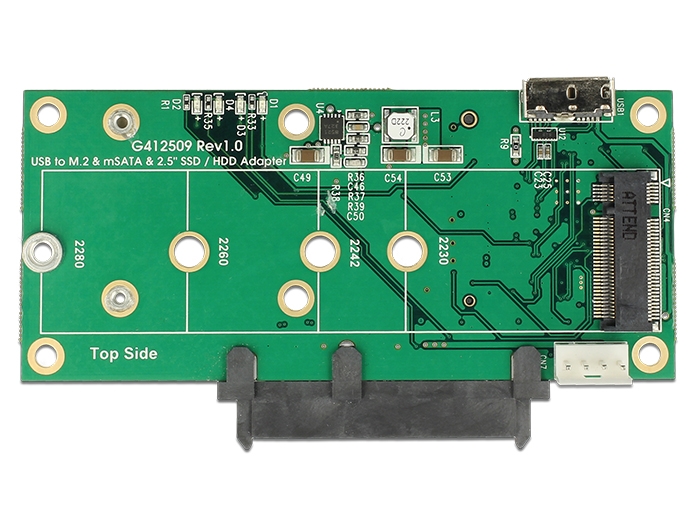

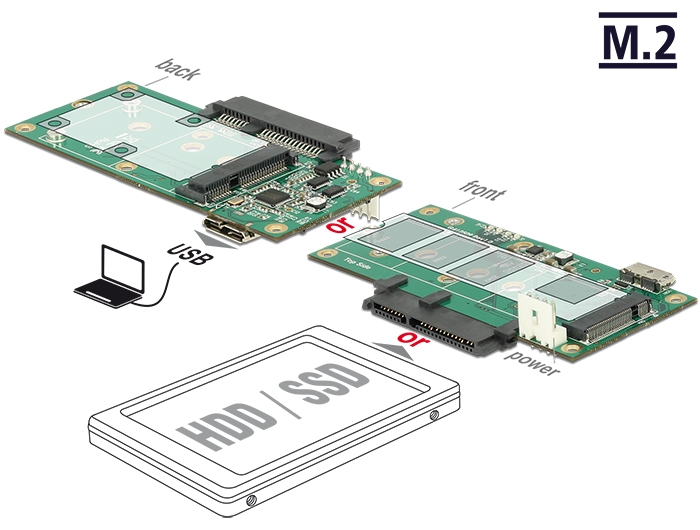

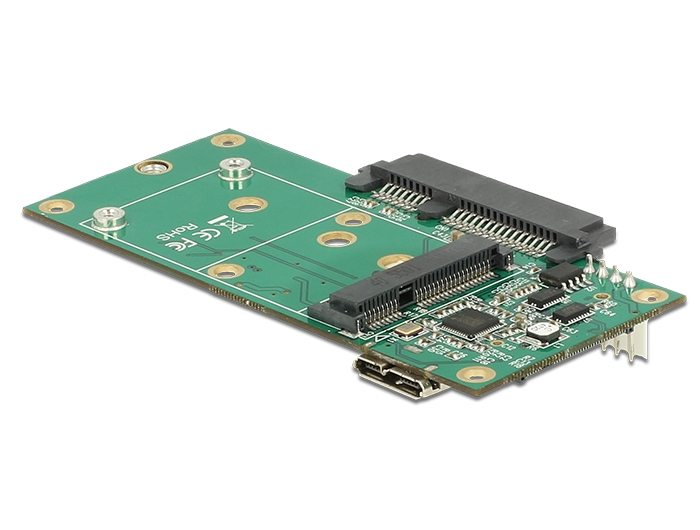

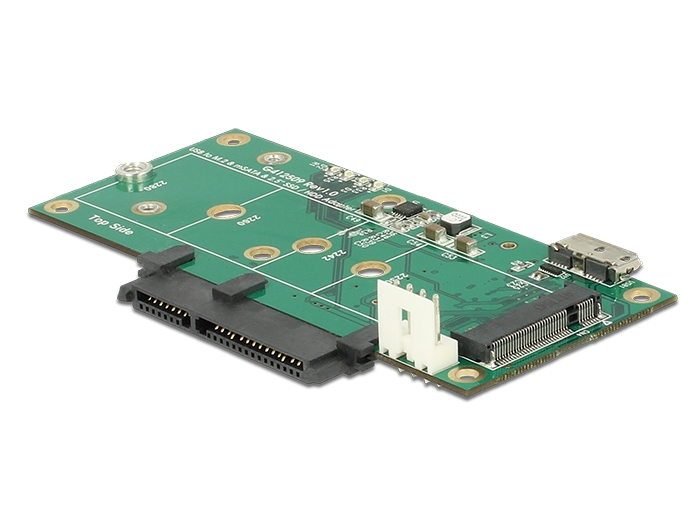

This converter by Delock enables the connection of a SATA SSD or HDD, an M.2 SATA SSD in 2280, 2260, 2242 and 2230 format or an mSATA SSD in half size or full size format. The converter offers three different connection possibilities for drives, but only one drive can be used at a time. The converter will be integrated into the system via the USB interface.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.3.x / Kernel 4.x.x
• A free USB interface
Specification:
• Connector:
  1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type Micro-B female >
  1 x SATA 6 Gb/s 22 pin receptacle
  1 x 67 pin M.2 key B slot
  1 x mSATA slot (half size / full size)
  1 x 4 pin power connector
• Interface: SATA
• Chipset: Asmedia ASM1351
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M
  based on SATA
• Maximum height of the components on the module: 1.35 mm application of
  double-sided assembled modules supported
• Suitable for 2.5″ SATA HDD / SSD:
  support 3.3 V / 5 V HDD / SSD
• Supports SATA 1.5 Gb/s, SATA 3 Gb/s and SATA 6 Gb/s
• LED indicator
• Maximum output current: 3 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 90 x 40 x 14 mm
Package content:
• Converter
• Mounting material
• User manual
Data sheet:
http://www.delock.de/produkt/62867/pdf.html?sprache=en
