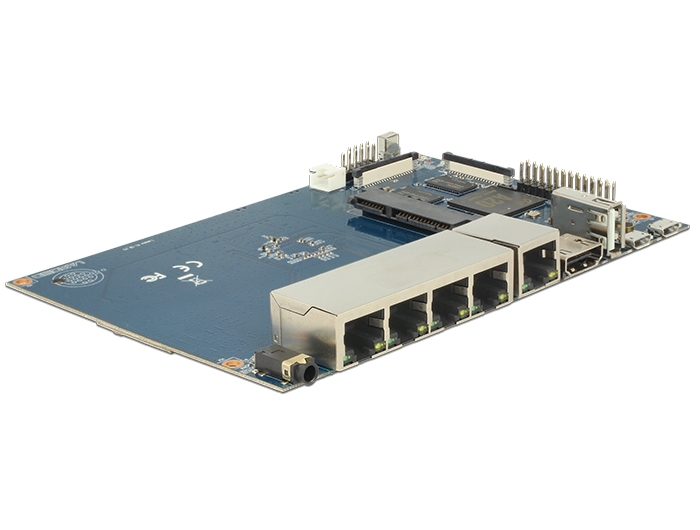

Mainboard Banana Pi BPI-R1 - Dual Core (Router)

BPI

33191

New

The Banana Pi BPI-R1 is a 300 Mbps wireless N router with both wired and wireless network connections designed specifically for smart home networking. It features the 2T2R MIMO technology and has two detachable antennas.
The BPI-R1 is the dual-core Android 4.4 product and runs smoothly  with Android 4.4. It has 5x Gigabit Ethernet ports and 1x SATA socket. It also supports Linux and Openwrt OS.
It can easily run games and supports 1080P high-definition videos.

Specification:
Processor: A20 ARM Cortex™-A7 Dual-Core
GPU: ARM Mali400MP2Complies with OpenGL ES 2.0/1.1
Memory slot:
Micro SD (Max.64GB) Card up to 2T on 2.5 SATA dish
Onboard Network: 10/100/1000 Ethernet RJ45,WLAN@802.11b/g/n
Video input: CSI input connector allows for the connection of a designed camera module
Video outputs: HDMI, CVBS , LVDS/RGB
Audio output: 3.5 mm Jack and HDMI, Microphone
Power source: 5 volt via MicroUSB(DC In Only)
USB 2.0 ports: USB host and Micro USB(OTG)
Buttons:
Reset button - Next to MicroUSB connector,Power button
Boot button - Next to battery connector
GPIO(2X13) pin: GPIO,UART,I2C bus,SPI bus with two chip selects,CAN bus,ADC,PWM,+3.3v,+5v,ground.
LED: Power Key and RJ45
Remote: IR
For OS: Android 4.2, Linux etc.
Dimensions (length x width): 100mm x 14 mm
Weight: 83g
Data sheet:
http://www.tragant.de/produkt/33191/pdf.html?sprache=en
