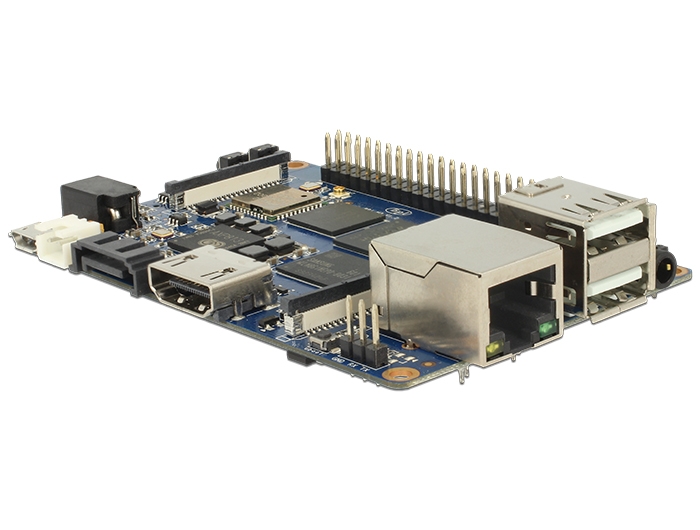

Mainboard Banana Pi BPI-M3

BPI

33190

New

The Banana Pi BPi-M3 opens up the new dimension of performance on single-board computers - with its powerful Allwinner A83T eight-core processor, new possibilities and applications arise, despite economical power consumption.

Special features:
8 GB EMMC onBoard, SATA connect, USB OTG, onBoard Microphone and IR.
Raspberry Pi compatible

The overview for the 40 pin assignment you find here
More Infos about the board under http://www.banana-pi.org

Interface overview:


Specification:
• Processor: A83T ARM Cortex-A7 Octa-Core
• GPU: PowerVR SGX544MP1
• Memory: 2 GB LP DDR3
• Flash: 8 GB EMMC onBoard
• Storage:
- MicroSD Card [bis zu 64GB]
- SATA [bis zu 2TB]
• LAN RJ45: GigaBit (1000Mbps) Realtek RTL 8211E/D
• Wifi: 802.11 b/g/n (AP6212)
 Bluetooth: BT4.0 (AP6212)
• Remote: IR
• Video-output:
- HDMI 1.4 (HDCP 1.2)
- MIPI DSI—LCD Inteface
- Video-Codec support: H.264 high profile 1080p@60FPS / HEVC/H.265 decoder     1080P@30FPS
• Video-input:
- Parallel 8-bit Camera Interface
- MIPI Camera serial Interface(CSI)
• Audio-output:
- HDMI
- 3.5mm Stereo Jack
• Audio-input:
- onBoard Microphone
• Stromversorgung:
- 5-V-DC-Jack (4,0 x 1,7 mm), max. 4 W
• USB Ports:
- 2x USB 2.0
- 1xUSB OTG [Micro USB] (without power)
• GPIO:
- 40 Pins [Raspberry Pi2/BPi M2] compatble
- GPIO, UART, I2C bus, I2S bus, SPI bus, PWM, +3.3V, +5V
• For operation systems:
- Android
- Ubuntu
- Debian
- Raspbian
• Domensions (lenght x width): 92 x 60 mm
Weight: 45 g

Package content:
• Mainboard
