Delock 2.5 Converter SATA 22 Pin M.2 NGFF

DELOCK

62544

New

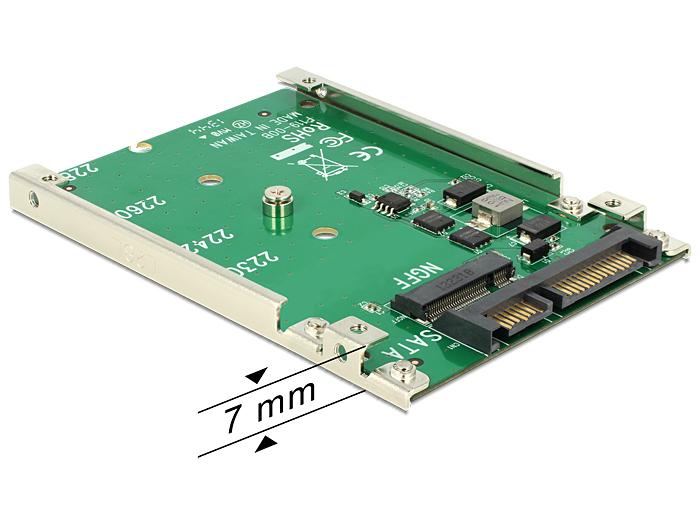

This Delock converter enables you to connect a M.2 NGFF SSD in 2280, 2260, 2242 and 2230 format which can be used as a 2.5″ HDD. The converter can be installed into your system internally through an SATA 22 pin interface.

More details

Description:
This Delock converter enables you to connect a M.2 NGFF SSD in 2280, 2260, 2242 and 2230 format which can be used as a 2.5″ HDD. The converter can be installed into your system internally through an SATA 22 pin interface.

Specification:
• Connector:
SATA 22 pin male > 67 pin M.2 NGFF key B slot
• Interface: SATA
• Form factor: 2.5″
• Supports M.2 NGFF modules in format 2280, 2260,
2242 and 2230 with key B or key B+M based on SATA
• Bootable
• Dimensions (LxWxH): ca. 100 x 70 x 7 mm
• OS independent, no driver installation necessary

System requirements:
• A free SATA 22 pin interface

Package content:
• Converter
• 1 x fixing screw for NGFF module
• 4 x screws for frame
• User manual
