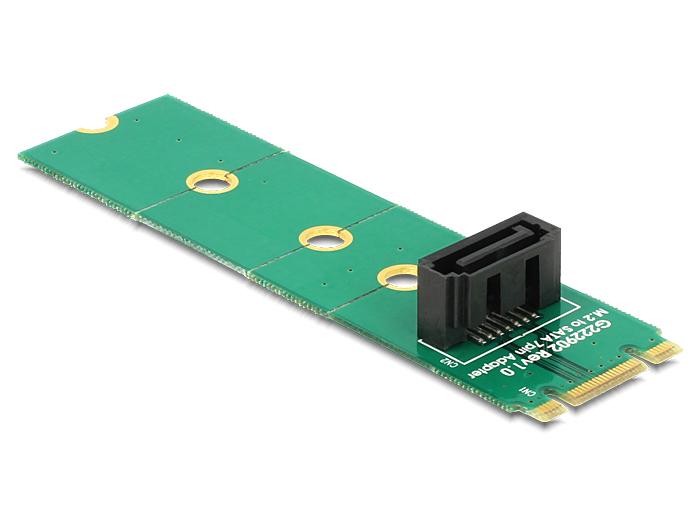

Delock Adapter M.2 NGFF SATA 7 pin

DELOCK

62548

New

This adapter by Delock converts the M.2 NGFF interface into a SATA 7 pin interface. Thus you can e.g. connect SATA SSDs to the M.2 NGFF interface. By the help of the perforation you can reduce the length to 60, 42 or 30 mm.

More details

Description:
This adapter by Delock converts the M.2 NGFF interface into a SATA 7 pin interface. Thus you can e.g. connect SATA SSDs to the M.2 NGFF interface. By the help of the perforation you can reduce the length to 60, 42 or 30 mm.

Specification:
• Connector:
59 pin M.2 NGFF key B+M male >
SATA 7 pin female
• Interface: SATA
• Form factor: M.2 NGFF 2280 (2260, 2242, 2230)
• Suitable for M.2 NGFF connector with key B or key M based on SATA
• Data transfer rate up to 6 Gb/s
• Dimensions (LxWxH): ca. 80 x 22 x 10 mm
• OS independent, no driver installation necessary

System requirements:
• A free M.2 NGFF port with key B or key M

Package content:
• Adapter

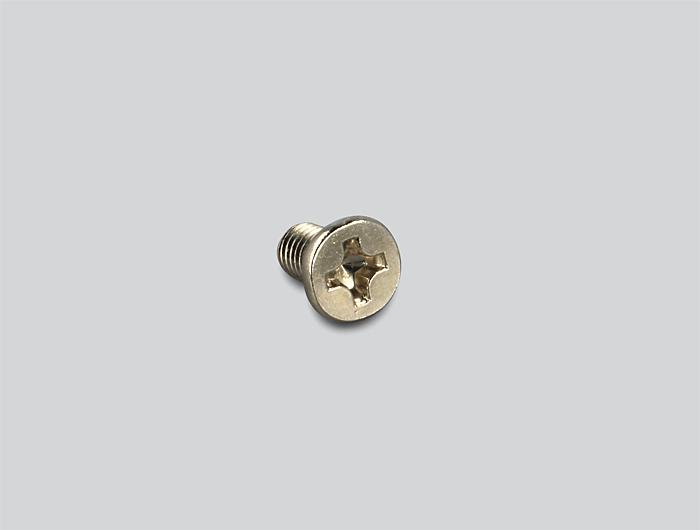

• 1 x fixing screw for M.2 adapter
