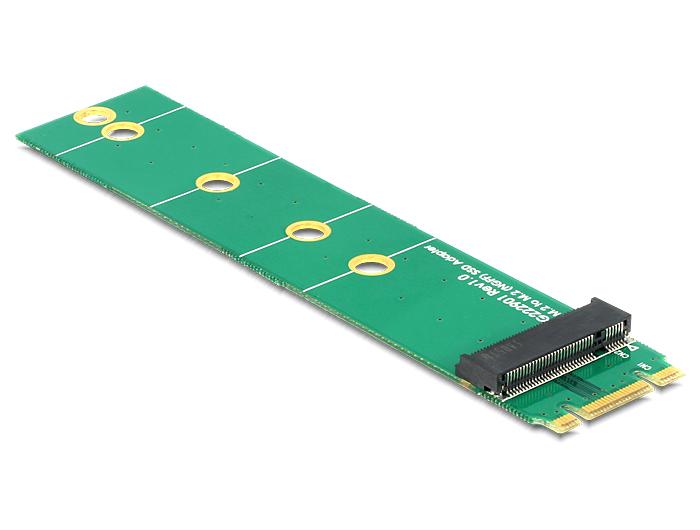

Delock Adapter M.2 NGFF key B+M male M.2 NGFF key B slot port saver

DELOCK

62549

New

This Delock adapter can be used as a port saver in order to prevent the M.2 NGFF interface from damage when it is under usage for high contact durability. Together with Delock item 62554 the adapter can be used for test purposes that if there is a mistake you can change fast the module.

More details

Description:
This Delock adapter can be used as a port saver in order to prevent the M.2 NGFF interface from damage when it is under usage for high contact durability. Together with Delock item 62554 the adapter can be used for test purposes that if there is a mistake you can change fast the module.

Specification:
• Connector:
59 pin M.2 NGFF key B+M male >
67 pin M.2 NGFF key B slot
• Supports M.2 NGFF modules in format 2280, 2260, 2242
and 2230 with key B or key B+M

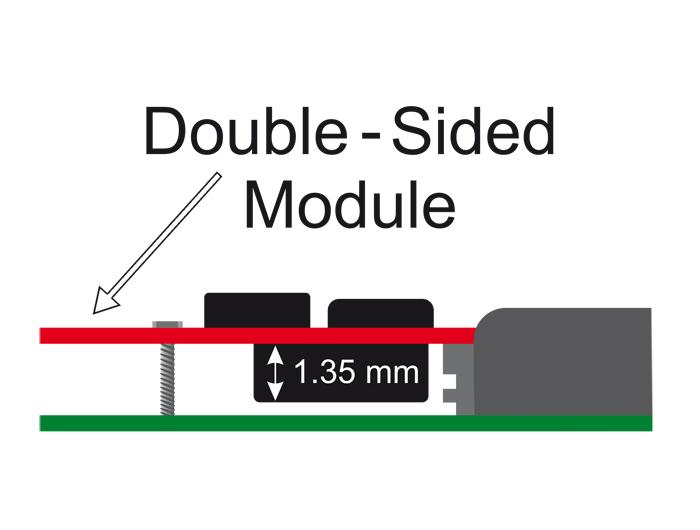

• Maximum height of the components on the module: 1.35 mm
application of double-sided assembled modules supported
• Dimensions (LxWxH): ca. 103 x 22 x 4 mm
• OS independent, no driver installation necessary

System requirements:
• A free M.2 NGFF port with key B or key M

Package content:
• Adapter

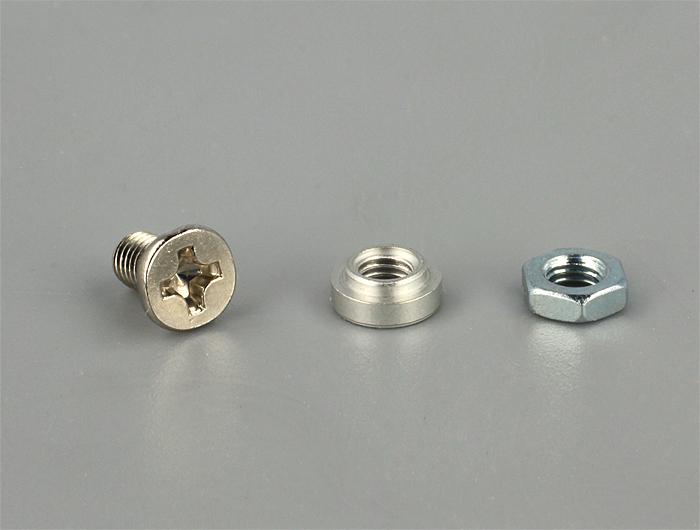

• 1 x fixing screw for M.2 module
