Delock 2.5 Converter SATA 22 pin mSATA with RAID

DELOCK

62545

New

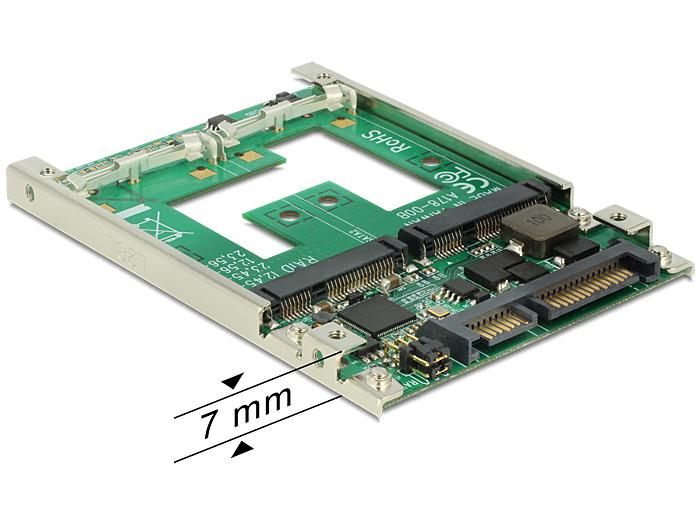

This Delock converter enables you to connect up to two mSATA SSD which can be used as a 2.5″ HDD. The converter can be installed into your system internally through the SATA 22 pin interface.

More details

Description:
This Delock converter enables you to connect up to two mSATA SSD which can be used as a 2.5″ HDD. The converter can be installed into your system internally through the SATA 22 pin interface.

Specification:
• Connector:
1 x 22 pin SATA male
2 x mSATA slots (full size)
1 x jumper for RAID mode
• Form factor: 2.5″
• For 3.3 V mSATA memory
• Also half size modules fit in
• Supports RAID 0, 1, JBOD, SPAN, Mirror
• Supports Port Multiplier (not supported for SATA 1.5 Gb/s)
• Dimensions (LxWxH): ca. 100 x 70 x 7 mm
• OS independent, no driver installation necessary

System requirements:
• A free SATA 22 pin interface

Package content:
• Converter incl. metal frame
• 4 x screws
• User manual
