Delock 2.5 Converter SATA 22 Pin 2 x mSATA with RAID

DELOCK

62594

New

This Delock converter enables you to connect up to two mSATA SSD which can be used as a 2.5″ HDD. The converter can be installed into your system internally through the SATA 22 pin interface. When using more than one SSD, you have the possibility to use different RAID level.

More details

Description:

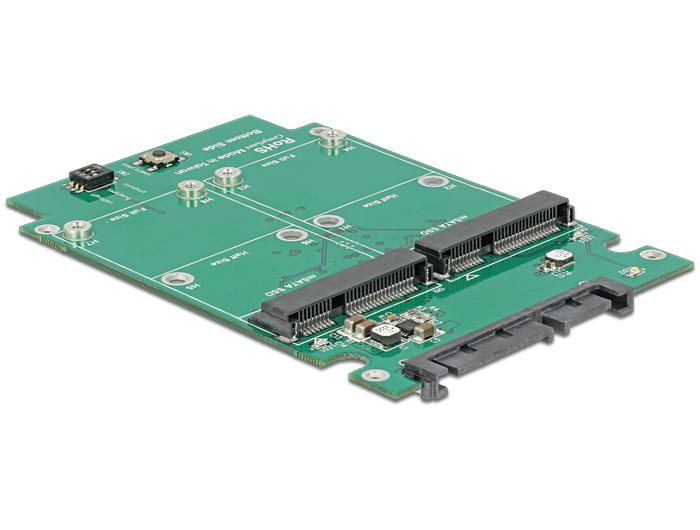

This Delock converter enables you to connect up to two mSATA SSD which can be used as a 2.5″ HDD. The converter can be installed into your system internally through the SATA 22 pin interface. When using more than one SSD, you have the possibility to use different RAID level.

Specification:
• Connector:
1 x 22 pin SATA 6 Gb/s male
2 x mSATA slots (full size)
• Chipset: Asmedia ASM1092R
• Form factor: 2.5″
• For 3.3 V mSATA memory
• Also half size modules fit in
• Supports RAID 0, 1, JBOD
• RAID mode set by DIP switch on board
• 2 x LED for SATA host activity (green) and M.2 SSD error (red)
• OS independent, no driver installation necessary

System requirements:
• A free SATA 22 pin interface

Package content:
• Converter

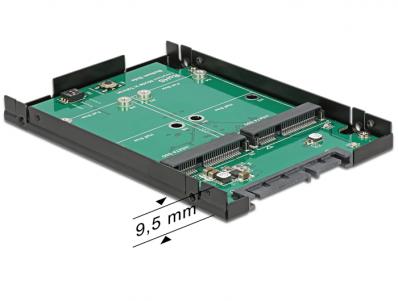

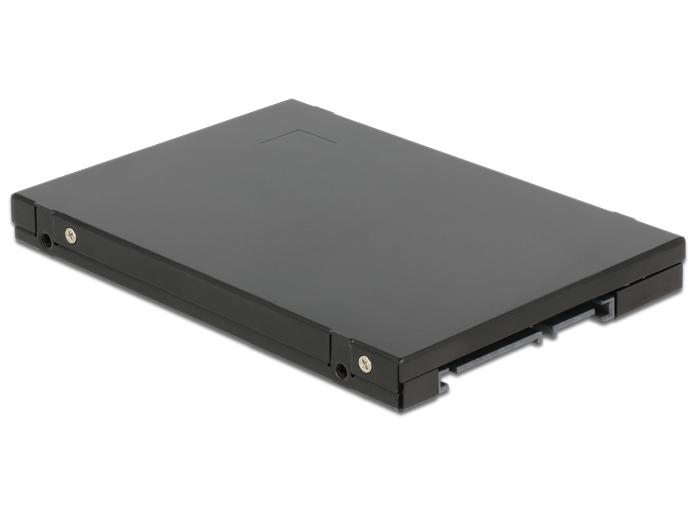

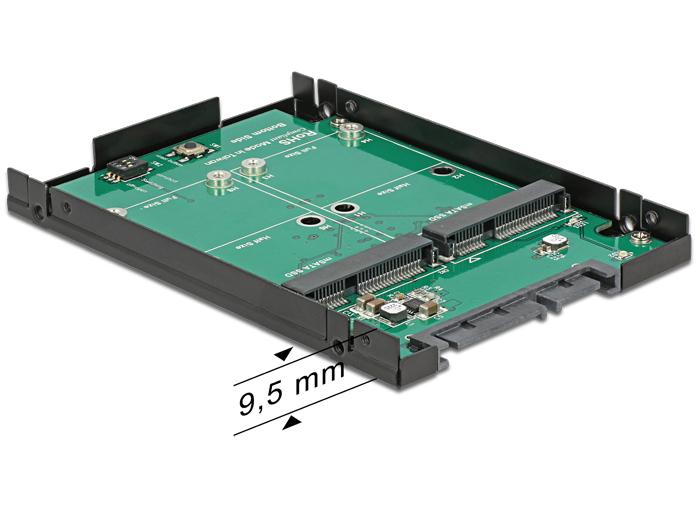

• 2.5″ enclosure

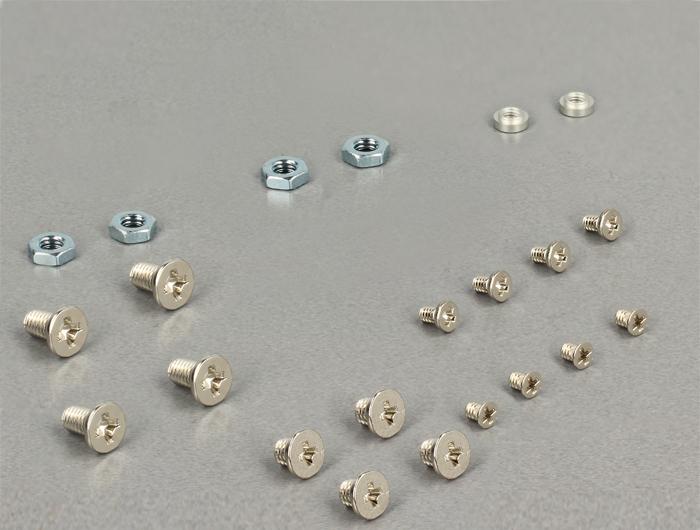

• Mounting material
