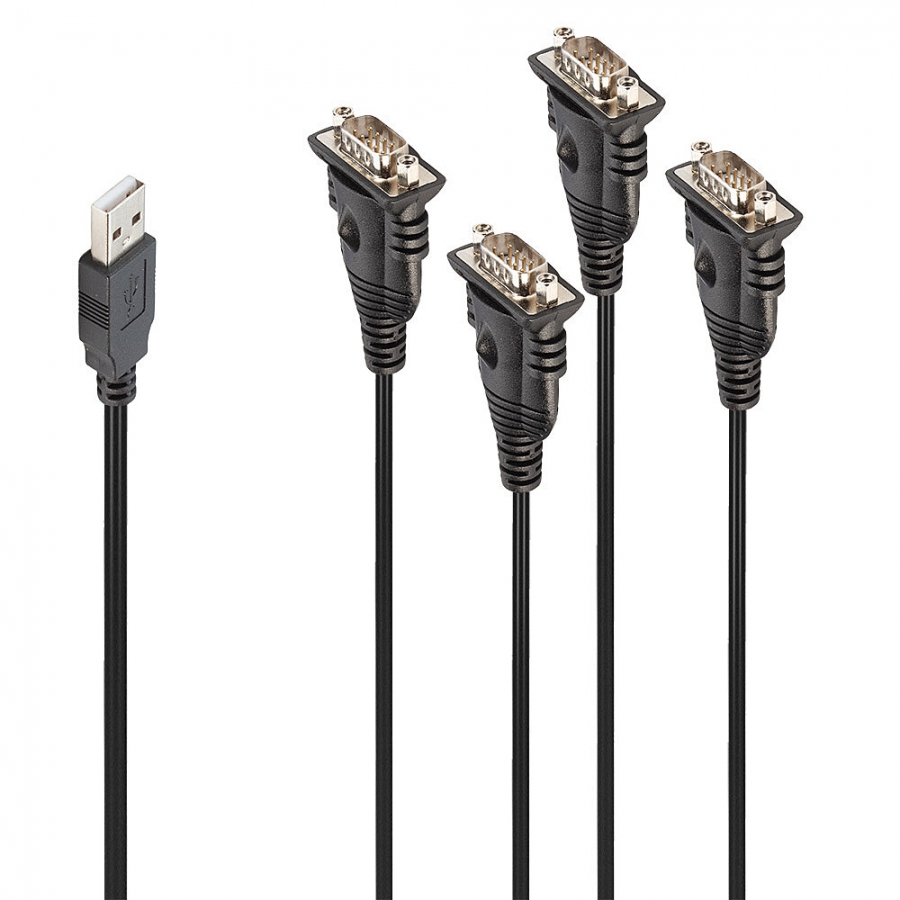

Lindy USB to 4 Port Serial Converter

Lindy

LIN42675

New

Specifications

  • Interface: USB to 4 x RS232 Serial
  • Interface Standard: USB 1.1, RS232
  • Supported Bandwidth: 12Mbps, > 230kbps
  • Chipset: PL2303RA
  • Compatibility: USB Type A equipped computers
  • Power Delivery: -
  • Special Features: -



Connectors

  • Inputs: 1 x USB Type A (Male)
  • Outputs: 4 x RS232 9 way (Male)
  • Power: Bus-powered



Physical Properties

  • Dimensions WxDxH:
    • 68x29x9mm (2.68x1.14x0.63in) / Housing
    • 33x58x16mm (1.3x2.28x0.55in) / RS232
    • 15x35x8mm (0.59x1.38x0.31in) / USB
  • Cable Length: 200mm each (7.87in)
  • Housing Material: Plastic
  • Net Weight: 0.2kg (0.44lb)
  • Operating Temperature: 0°C - 50°C (32°F -122°F)
  • Storage Temperature: -10°C - 65°C (14°F - 149°F)
  • Humidity: 0 - 80% RH (non-condensing)
  • Power Requirements: -
  • Colour: Black



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 174x194mm (6.85x7.64in)
  • Gross Weight: 0.21kg (0.46lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH, CP65



Package Contents

  • CE, UKCA, FCC, RoHS & REACH, CP65



Purchasing information

  • No.: 42675
  • EAN: 4002888426752


Serial/Parallel
