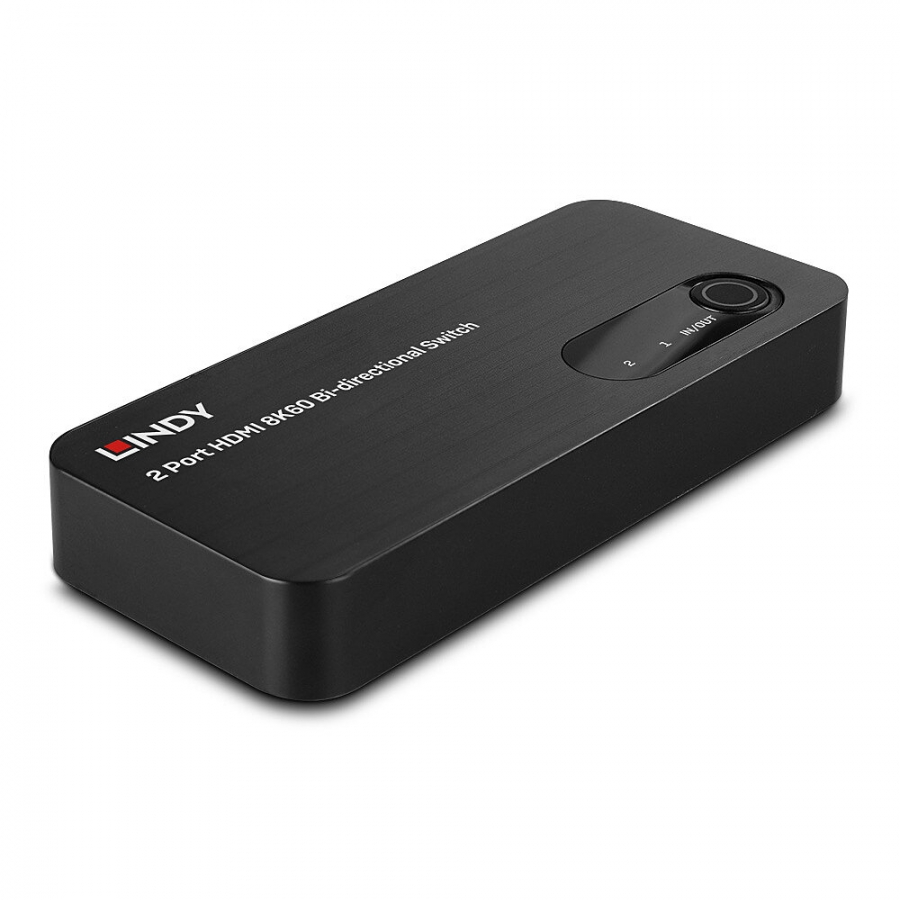

Lindy 2 Port HDMI 8K60 Bi-Directional Switch

Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 2.1
• Supports Bandwidth: 48Gbit/s
• Maximum Resolution:
  • 7680x4320@60Hz 4:2:0 10bit
  • 3840x2160@120Hz 4:4:4 10bit
• HDCP Support: HDCP 2.3
• Supported Audio: Pass-Through
• Separate Audio Ports: -
• IR Support: -
• CEC Support: -
• Serial Interface: -
• Special Features: HDR10

Connectors

• Input: 2 x HDMI Type A (Female)
• Output: HDMI Type A (Female)
• Control: -
• Power: USB Micro-B (Female)

Physical Properties

• Dimensions (approx.) WxDxH: 102x45x14mm (4.02x1.77x0.55in)
• Housing Material: ABS
• Net Weight: 0.047kg (0.1lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)
• Humidity: 5 - 90% RH (non-condensing)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 127x93x17mm (5x3.66x0.67in)
• Gross Weight: 0.088kg (0.19lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS & REACH

Package Contents

• 2 Port HDMI Switch
• 0.8m USB A to Micro-B cable
• Lindy Manual

Purchasing Information

• No.: 38339
• EAN: 4002888383394
