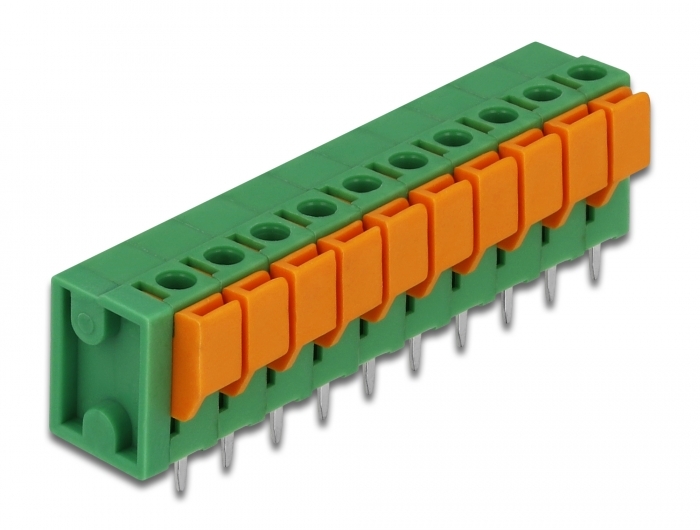

Delock Terminal block with push button for PCB 10 pin 5.08 mm pitch vertical 4 pieces

DELOCK

66273

New

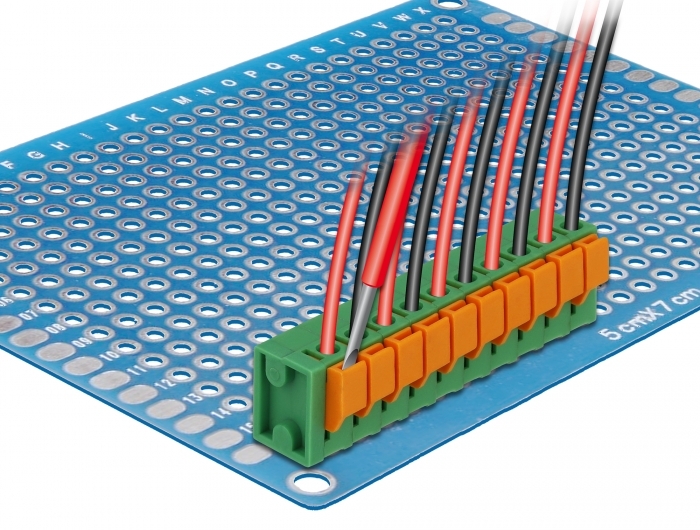

This terminal block by Delock is suitable for the solder mounting on a PCB. Furthermore, data or power cables can be connected via the terminal block.
Specification:
• Connectors:
  1 x 10 pin terminal block with push button
  2 x 10 soldering pin
• Pitch: 5.08 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge from 22 to 16 AWG
• Withstanding voltage: AC 1600 V / 1 minute
• Rated voltage according to: UL: 300 V, IEC: 250 V
• Rated current according to: UL: 10 A, IEC: 15 A
• Material: plastic
• Colour: green / orange
• Dimensions (LxWxH): ca. 53.3 x 14.0 x 10.2 mm
Package content:

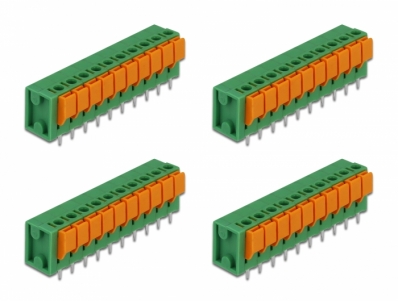

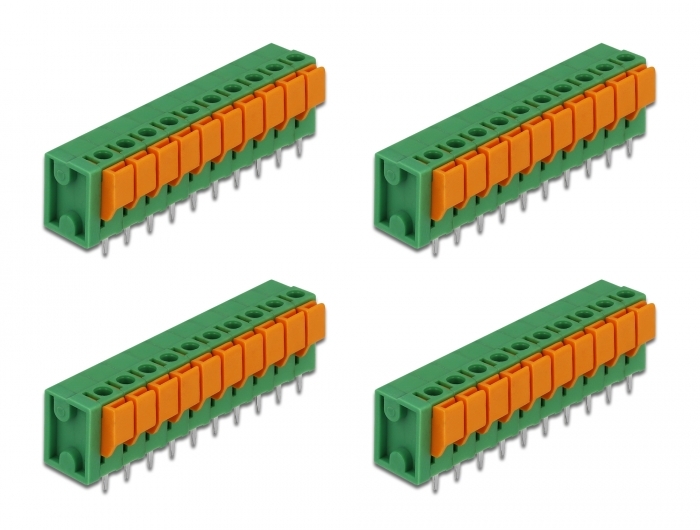

• 4 x Terminal block
Data sheet:
http://www.delock.de/produkt/66273/pdf.html?sprache=en
