Delock Terminal block for PCB soldering version 2 pin 5.00 mm pitch vertical 10 pieces

DELOCK

65998

New

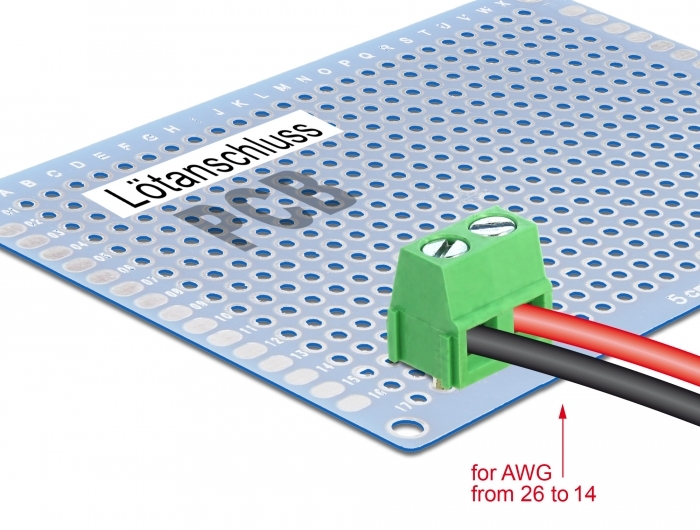

This terminal block by Delock is suitable for the mounting on a PCB. This can be soldered on a board, to create a screw connection. Furthermore, data or power cables can be connected via the terminal block.
Specification:
• Connectors:
  1 x 2 pin terminal block screw terminal
  1 x 2 soldering pin

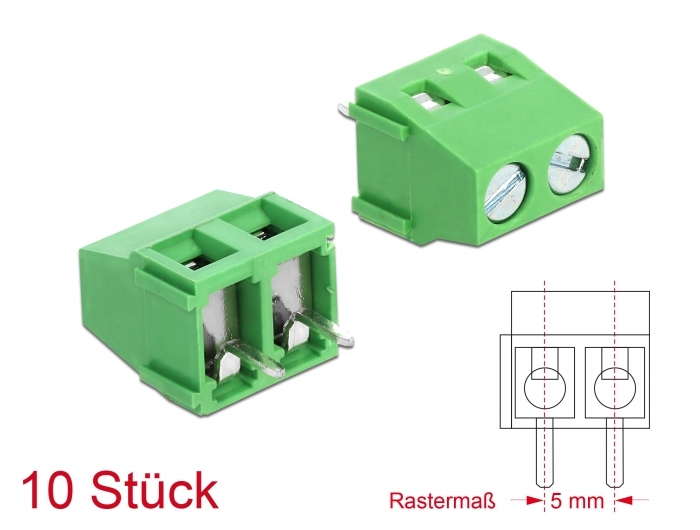

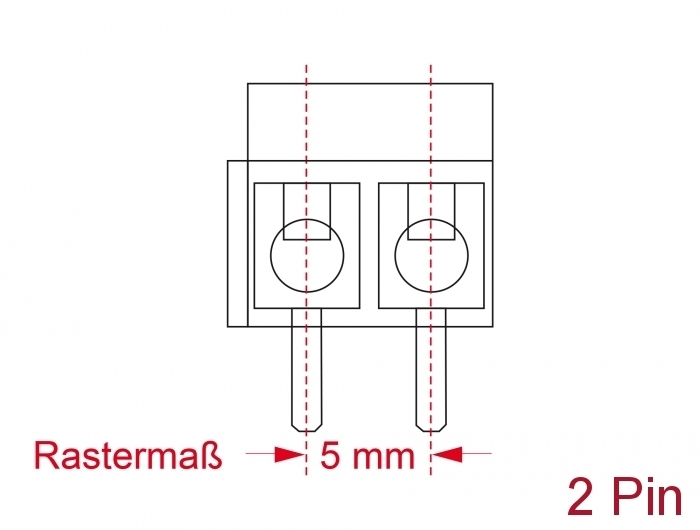

• Pitch: 5.00 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge from 26 to 14 AWG
• Withstanding voltage: AC 2000 V / 1 min
• Rated voltage according to: UL: 300 V, IEC: 250 V
• Rated current according to: UL: 12 A, IEC: 15 A
• Insulation resistance: 500 MΩ / DC 500 V
• Material: plastic
• Colour: green

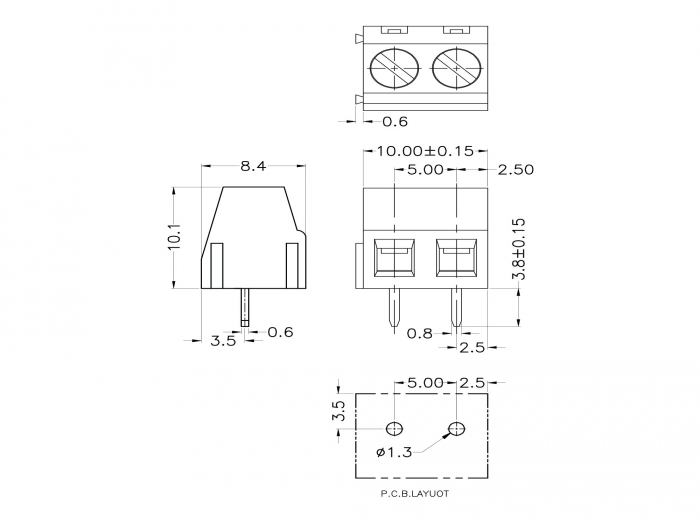

• Dimensions (LxWxH): ca. 10.1 x 10.0 x 8.4 mm
Package content:
• 10 x Terminal block
Data sheet:
http://www.delock.de/produkt/65998/pdf.html?sprache=en
