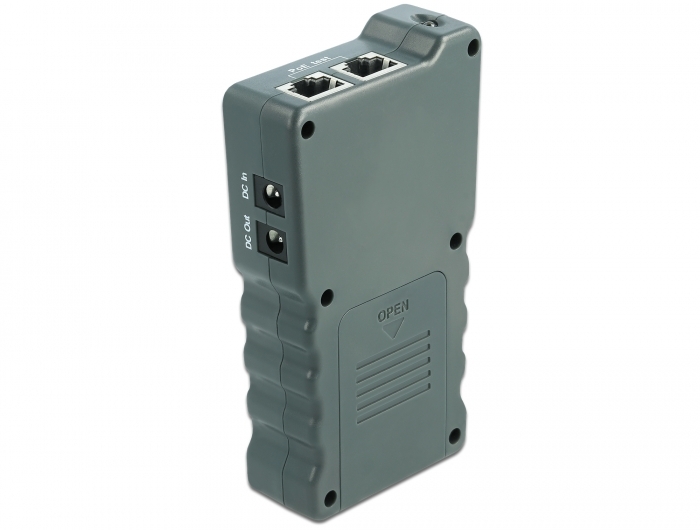

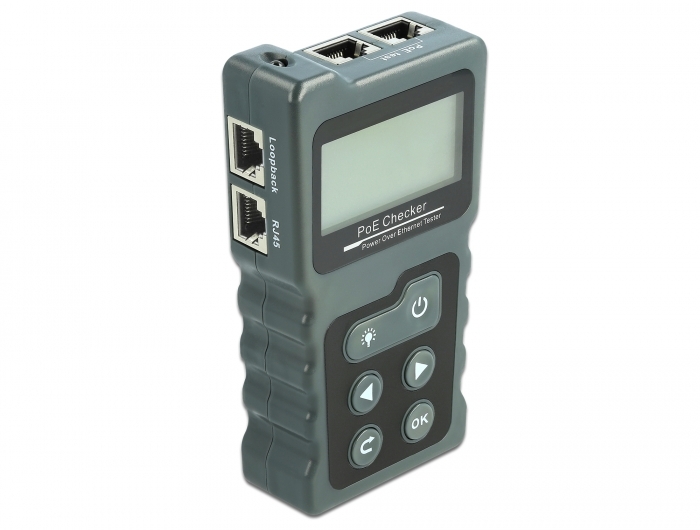

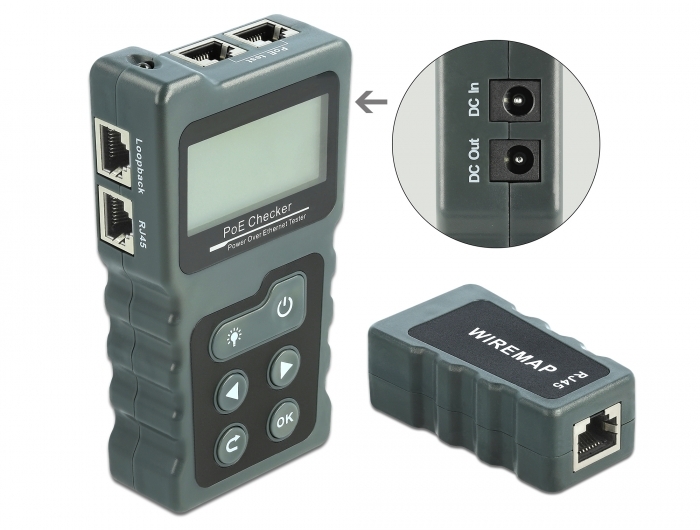

Delock LCD Cable Tester RJ45 / PoE / DC




With this cable tester by Delock the wiremap of network cables can be tested quickly and easily. The results are shown clearly on the illuminated LCD display. The remote unit can be used to test already installed cables.

PoE and DC measurement
The PoE standard and the used wire pairs of a PoE voltage source can be determined. With a connected load, the actual voltage, polarity, current and power are displayed in real time.
System requirements:
• 3 x AAA battery
• Matrix LCD display with background lighting
• 6 operating buttons
• Display of open, short or crossed connections
• Display of used PoE standards 802.3af or 802.3at
• Display of used PoE pairs (12/36) or (45/78)
• Display of voltage, polarity, amperage and power for PoE or DC
• Test range voltage: DC 0 - 60 V
• Test range current: 0 - 3 A
• Test range power: 0 - 180 W
• Auto power-off mode
• Flashlight function
• Colour: dark grey
• Dimensions (LxWxH): ca. 12.5 x 6.9 x 2.8 cm
Package content:
• Network cable tester

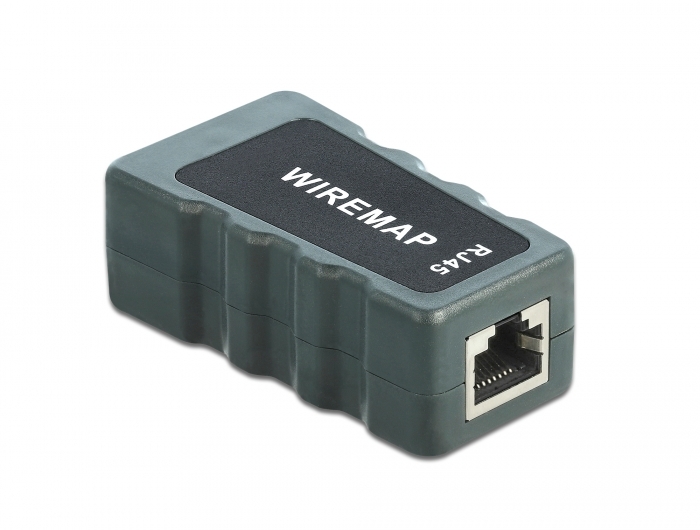

• Remote unit
• DC cable ca. 30 cm

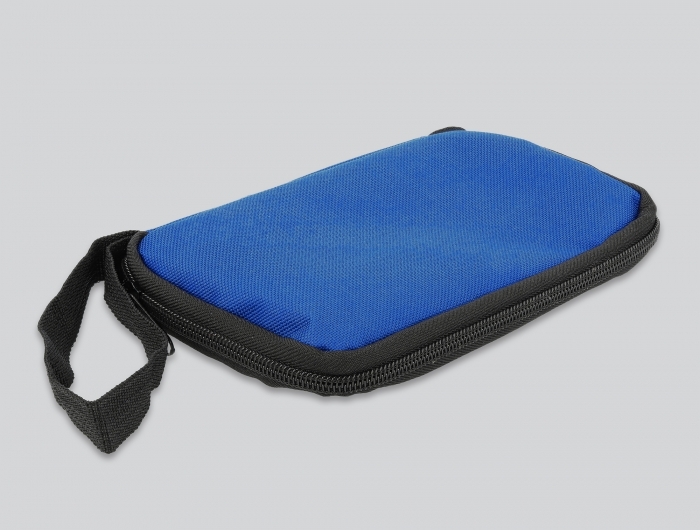

• Bag
• User manual
