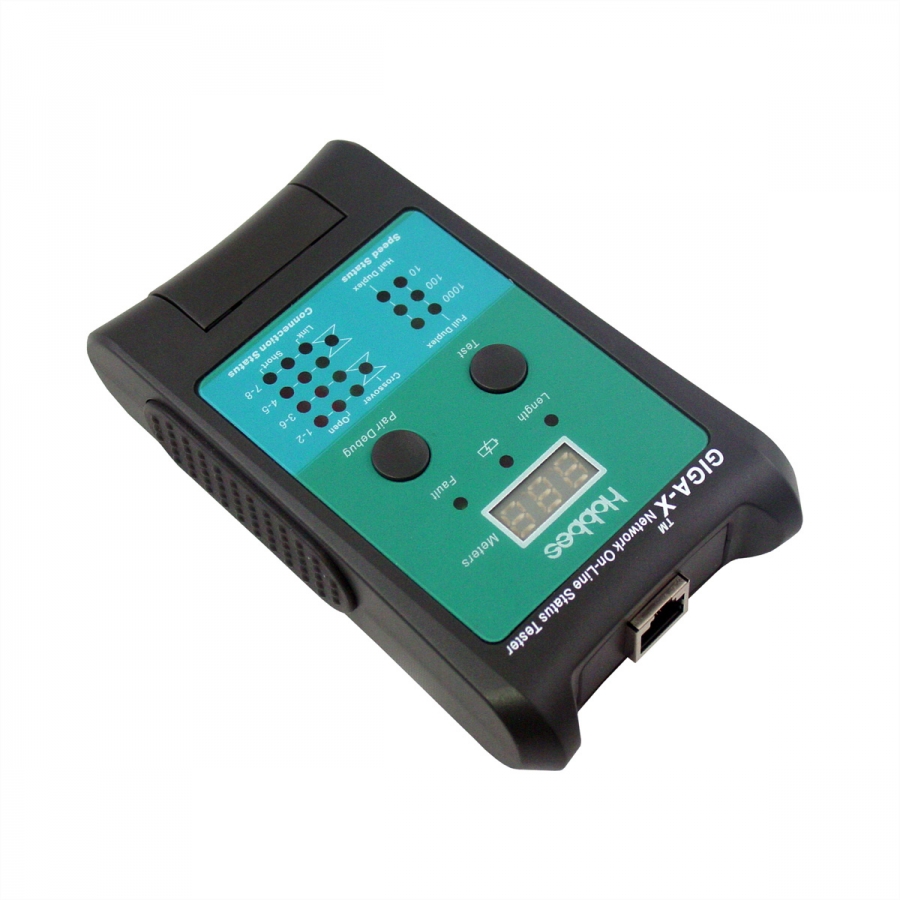

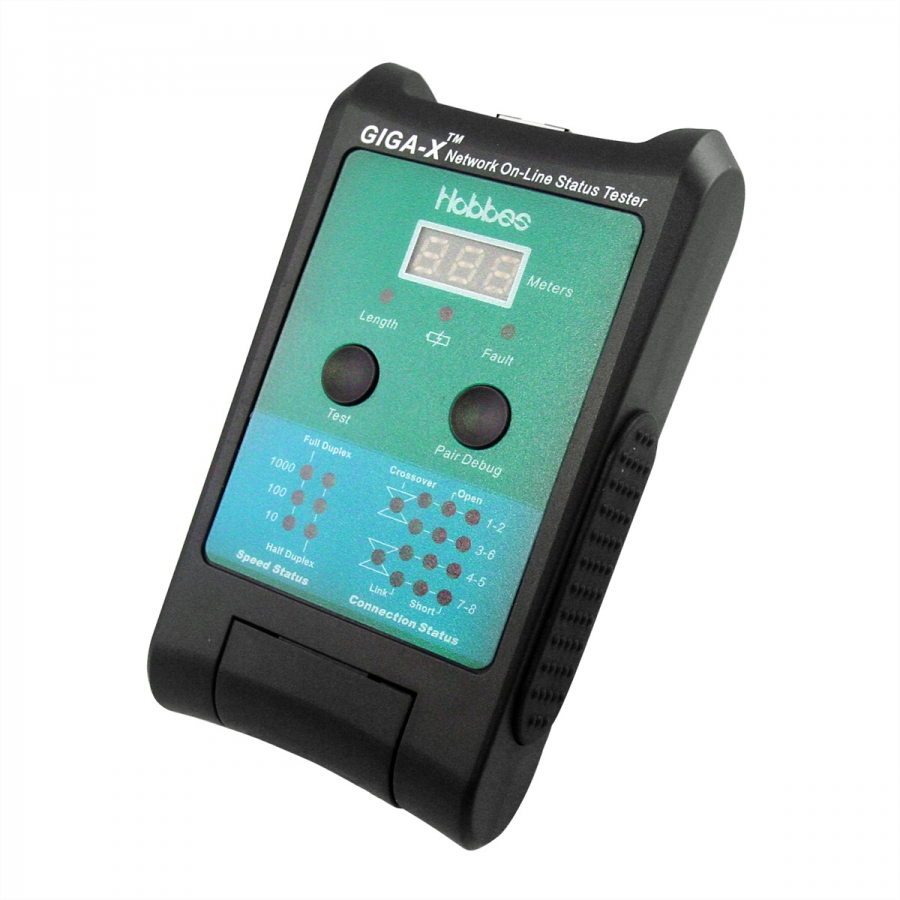

Hobbes GIGA-X Netzwerk Status Tester

HOBBES

256800

New

It helps network administratorsand installers to layout 10/100/1000 BASE–T network environments GIGA–X also allows for trouble–free development of new switch/NIC Ethernet network devices for business expansion. Network installers and administrators will find that GIGA–X is the fastest yet simplest unit to detect, identify, and maintain their network environments. GIGA–X complies with existing IEEE standards.

  • Maps any existing network layout quickly
  • Identifies 10/100/1000 BASE–T or BASE–Tx
  • Testing while network is online or offline
  • Measures cable length by each pair
  • Tests cable faults at the same time

Specifications

  • Max test length: Offline 150 meters (492.13 ft.)/Online 110 meters (360.89ft.)
  • Power source: 4 x AAA 1.5V Alkaline batteries
  • Operating temp.: 0ºC to 50ºC
  • Storage temp. : –10ºC to 50ºC
  • Humidity: 10% to 90%
  • Dimensions: 138 x 82 x 32mm
  • Weight: 125g



ManufacturerHOBBES
Product groupTester
Product typeNetzwerktester
Accessories: rechargeable battery optionalnot applicable
Accessories: Rechargeable battery/battery requirednot applicable
Weight196.4 g
Current catalog editionC21-08.03
