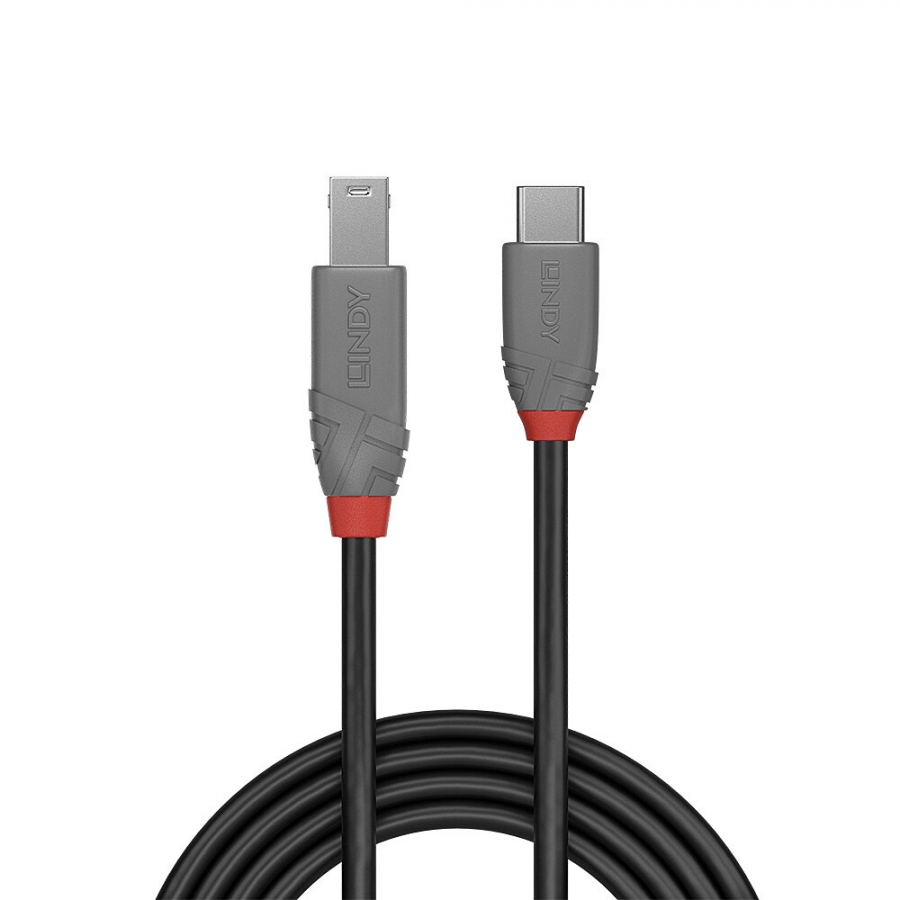

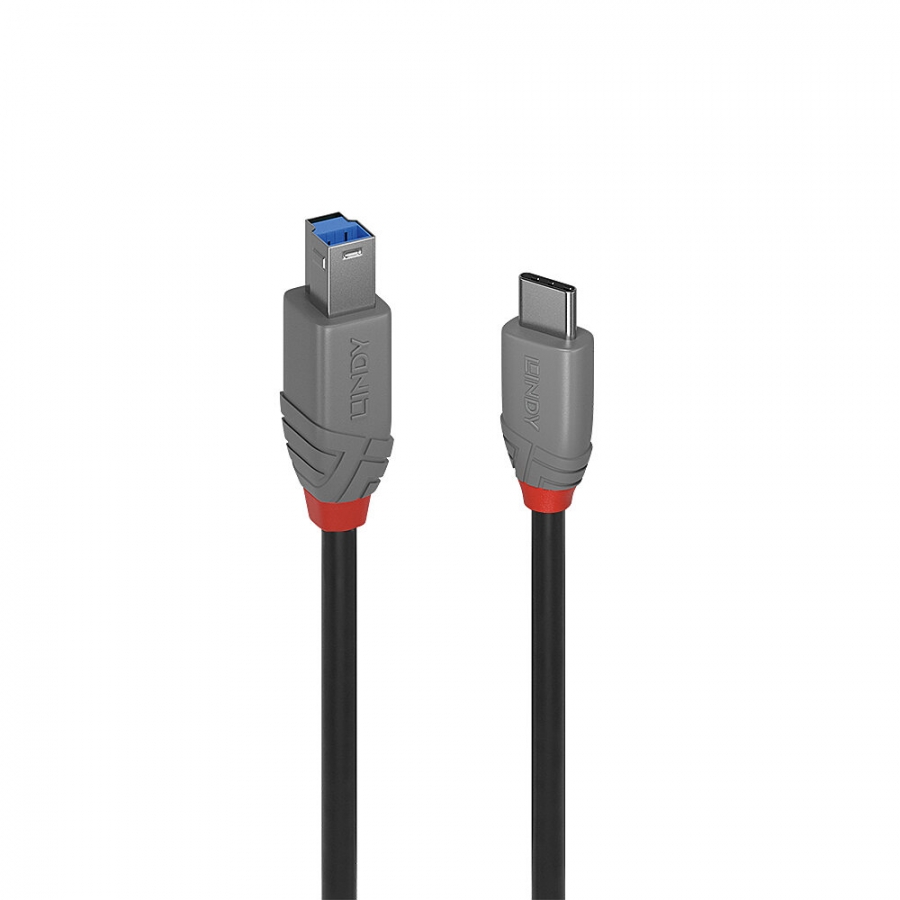

LINDY USB 3.2 Kabel Typ C/B Anthra Line 1m

Lindy

36666

New

The Anthra Line USB 3.2 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.They are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.Anthra Line USB 3.2 Type C to B cables are available in the following lengths: 0.5m, 1m, 2m and 3m.Information about USB generationsWe have adapted the naming of our USB 3 cables to follow the updated USB specification.USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5GbpsUSB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 GbpsUSB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 GbpsUSB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Cable length1 m
USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
Connector 1USB C
Connector 2USB B
Connector 1 genderMale
Connector 2 genderMale
Product colourBlack
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size22/30
Connector contacts platingNickel
Cable jacket materialNylon/Polyvinyl Chloride (PVC)
Conductor materialTinned copper
Connector shieldingY
Connector shield materialCopper
Maximum data transfer rate500 Mbit/s
Cable typeRound cable
CertificationRoHS, REACH, California Proposition 65, UL
Cable diameter4.3 mm
Bend radius (min)2.5 cm
Connector 1 dimensions (WxDxH)10.8 x 32 x 7.8 mm
Connector 2 dimensions (WxDxH)12.2 x 46 x 10 mm
Quantity per pack1 pc(s)
Package typePolybag
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)0 - 70 °C

USB 2.0
