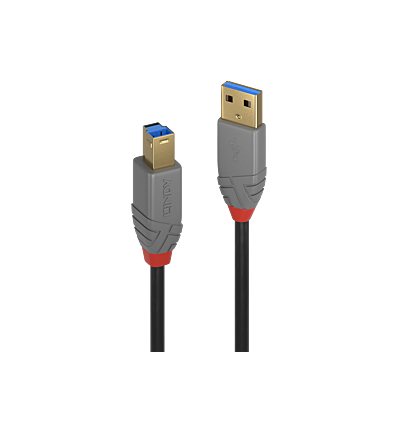

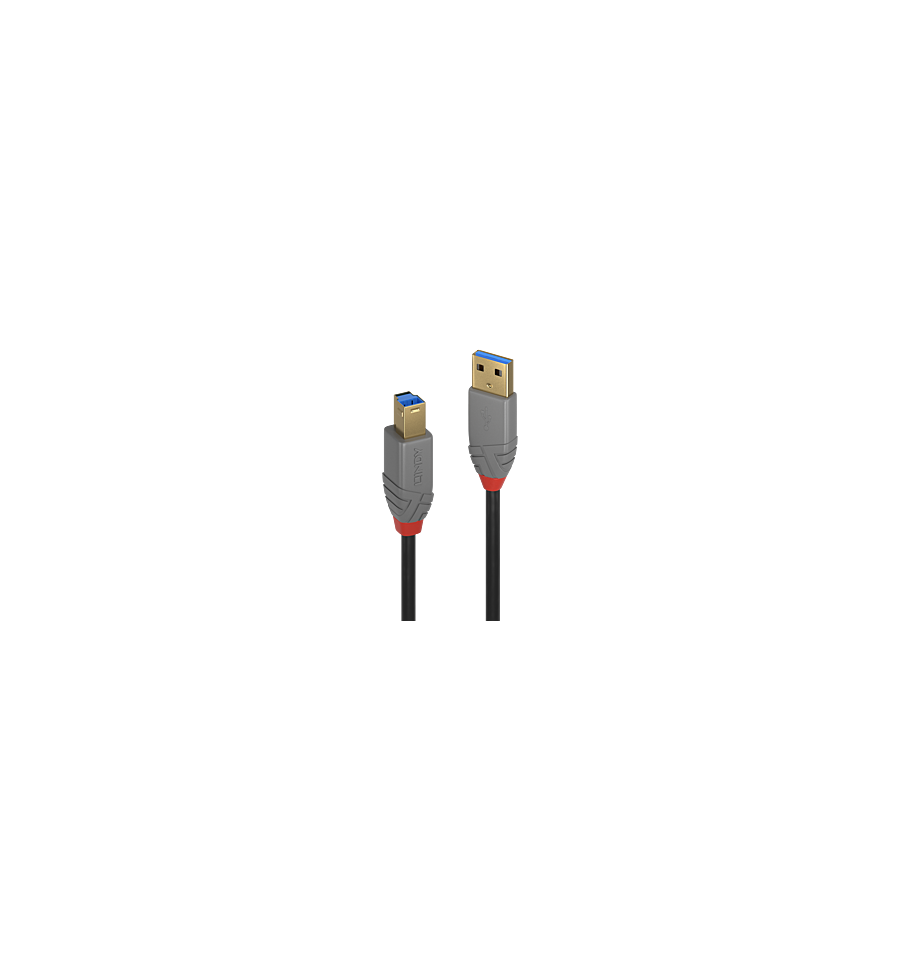

Lindy 5m USB 3.0 Typ A to B Cable, Anthra Line

Connectors

• • Connector A: USB 3.0 Type A Male
  • Connector B: USB 3.0 Type B Male
  • Housing Material: PVC
  • Connector Plating: Gold Plated
  • Pin Construction: Copper
  • Pin Plating: Gold Plated
  • Dimensions (approx.) WxDxH:
    • A:15.5x35x7.8mm (0.61x1.38x0.31in)
    • B: 12.2x35x13.5mm (0.48x1.38x0.53in)

Cable Construction

• Length: 5m (16.40f)
• Standard: USB 3.0
• Colour: Black
• Type: Round
• Jacket Diameter: Round
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 24/28/30AWG
• Shielding: Aluminium Braid 85%

Specifications

• Supported Bandwidth: 5Gbps
• Maximum Resolution: -
• Nominal Attenuation: 0.5MHz-7.5GHz<25DB
• Minimum Band Radius: 48mm (1.89in)
• Operating Temperature: 0°C - 60°C (32°F - 140°F)
• Storage Temperature: 0°C - 60°C (32°F - 140°F)
• ATC Approved: -

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH & UL

Purchasing Information

• No.: 36744
• EAN: 4002888367448

This product is also available in other lengths

• 36740 - 0.5m (1.64ft)
• 36741 - 1m (3.28ft)
• 36742 - 2m (6.56ft)
• 36743 - 3m (9.84ft)
• 36744 - 5m (16.40f)
