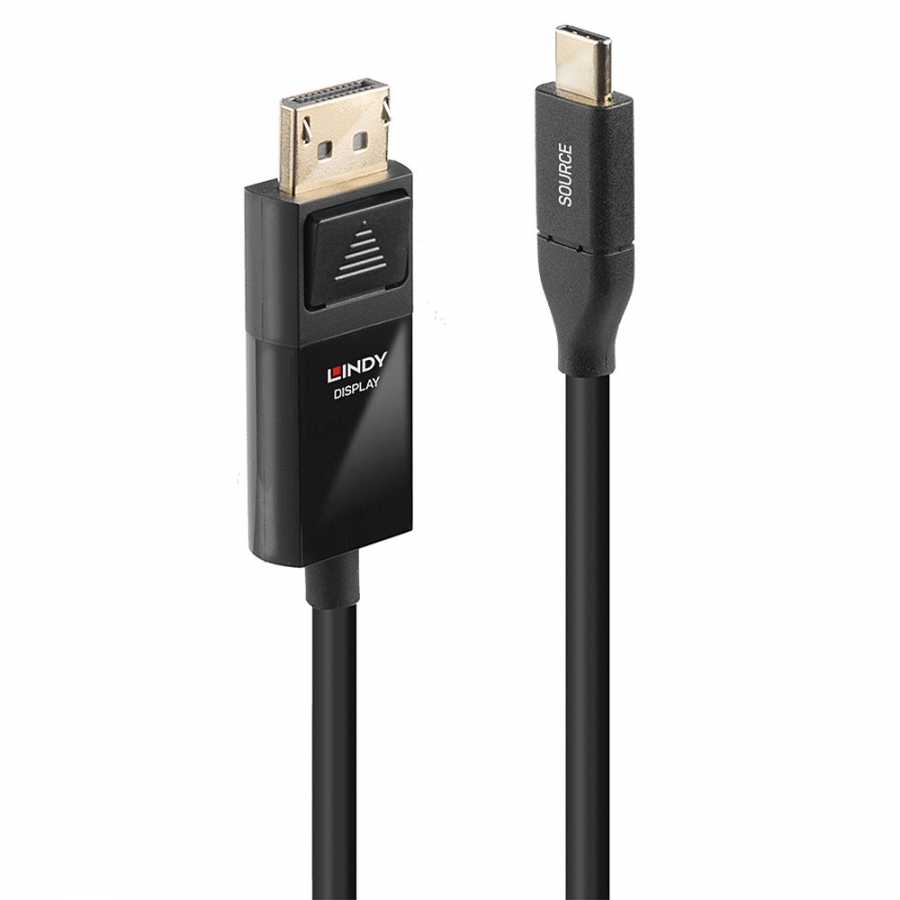

Lindy 2m USB Type C to DisplayPort 4K60 Adapter Cable with HDR

Lindy

LIN43302

New

Connectors

  • Connector A: USB Type C Male
  • Connector B: DisplayPort Male
  • Housing Material: USB C: PVC, DP: ABS shell
  • Connector Plating: Gold plating
  • Pin Construction: Copper alloy
  • Pin Plating: Gold plating
  • Dimensions (approx.) WxDxH:
    • USB: 32x12x6.3mm (1.26x0.47x0.25in)
    • DP: 47.17x21.8x9.2mm (1.86x0.86x0.36in)
  •

Cable construction

  • Length: 2m (6.56ft)
  • Standard: DP 1.2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 4.5mm (0.18in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 32AWG
  • Shielding: Copper Braid 85%



Specifications

  • Chipset: VL100
  • Supported Bandwidth: 21.6Gbps
  • Power Delivery: -
  • Maximum Resolution: 3840x2160@60Hz 10bit 4:4:4
  • Nominal Attenuation: 0.1MHz-6MHz<12DB
  • Minimum Bend Radius: 47mm (1.85in)
  • Operating Temperature: 0°C - 35°C (32°F - 95°F)
  • Storage Temperature: 0°C - 45°C (32°F - 113°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH, California Proposition 65



Purchasing information

  • No.: 43302
  • EAN: 4002888433020



This product is also available in other lengths

  • 43301 - 1m (3.28ft)
  • 43302 - 2m (6.56ft)
  • 43303 - 3m (9.84ft)





USB 3.0 /3.2 / Type-C / USB4™
