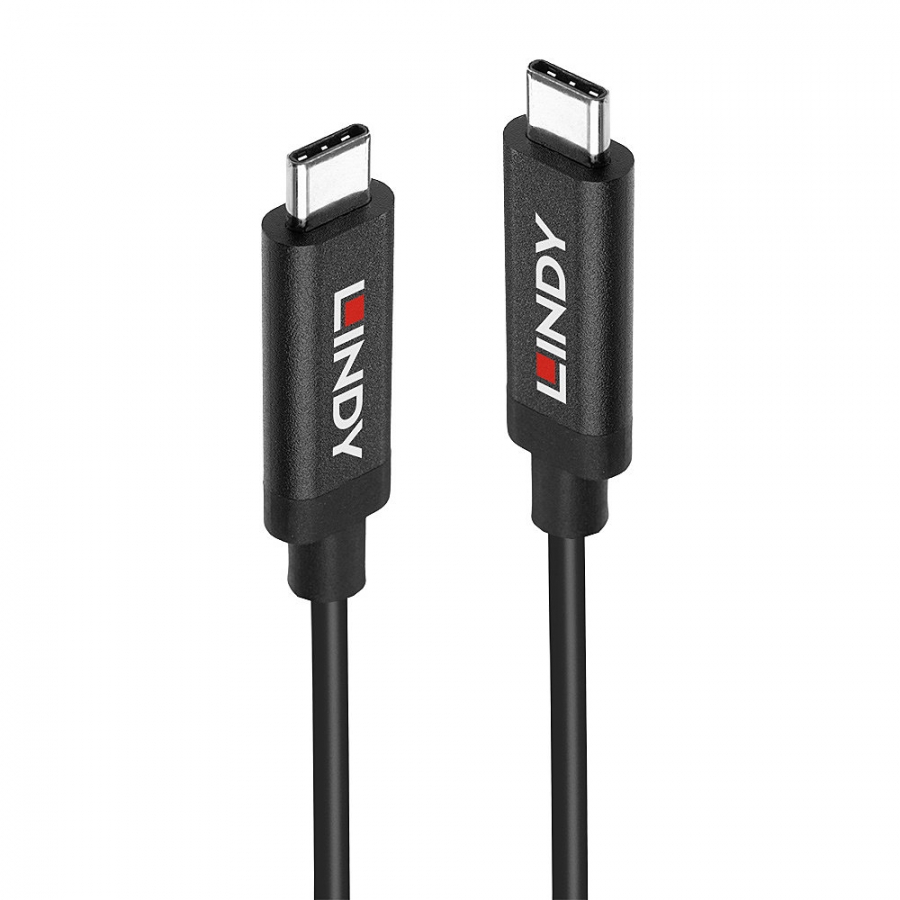

Lindy 5m Active USB 3.1 Gen 2 C/C Cable

Lindy

LIN43308

New

Connectors

  • Connector A: USB Type C Male
  • Connector B: USB Type C Male
  • Power: PD 3A/20V (60W)
  • Housing Material: PVC overmold
  • Connector Plating: Nickel plated
  • Pin Construction: Copper
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH:
    • A: 28.5x6.2x12mm (1.12x0.24x0.47in)
    • B: 28.5x6.2x12mm (1.12x0.24x0.47in)
  •

Cable Construction

  • Length:  5m (16.4ft)
  • Standard: USB 3.1 Gen 2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 5.3mm (0.21in)
  • Jacket Material: TPE
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 31AWG+32AWG+34AWG
  • Shielding: 85% Tinned Copper



Specifications

  • Supported Bandwidth: 10Gbps
  • Maximum Resolution: UHD 8K 7680x4320@60Hz including 4K 4096x2160@120Hz
  • Nominal Attenuation: -
  • Minimum Bend Radius: 53mm (2.09in)
  • Operating Temperature: 0°C to 40°C (32°F - 104°F)
  • Storage Temperature: -10°C to 60°C (14°F - 140°F)
  • Transmission Medium: Twisted Pair
  • Transmission Technology: USB 3.1 Gen 2



Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 236x255mm (9.29x10.04in)
  • Net Weight: 0.2kg (0.44lb)
  • Gross Weight: 0.26kg (0.57lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Packaging Content

  • 5M Active USB 3.1 Gen 2 C/C Cable



Purchasing Information

  • No.: 43308
  • EAN: 4002888433082







USB 3.0 /3.2 / Type-C / USB4™
