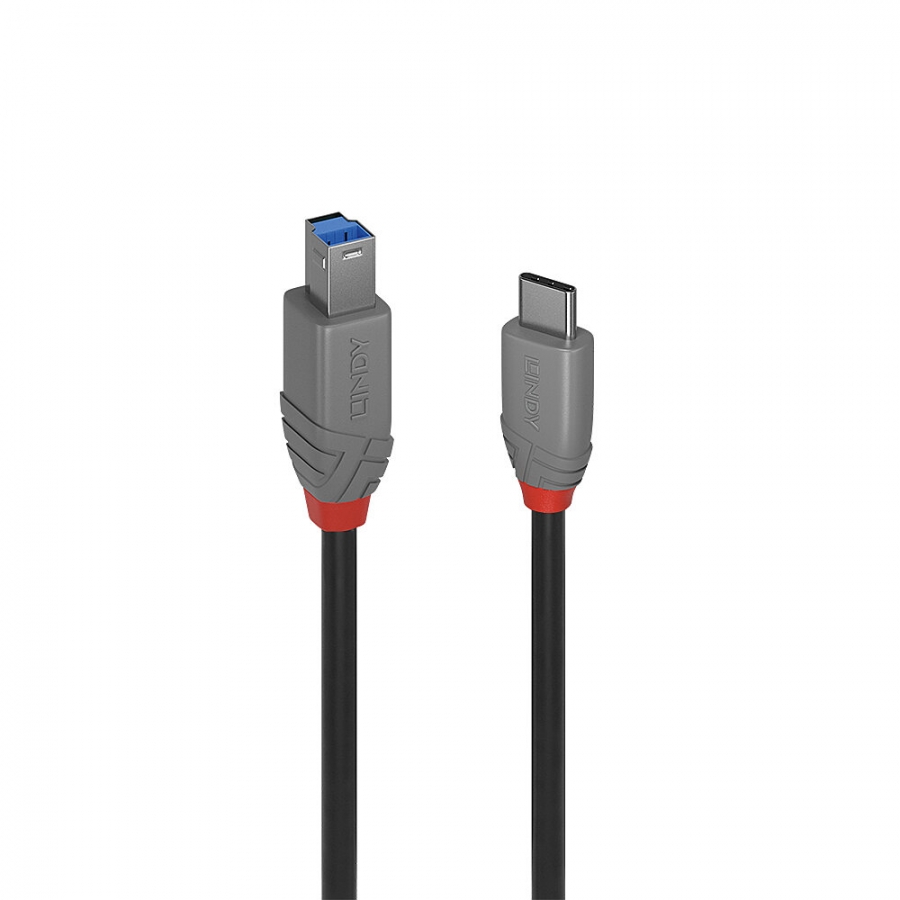

Lindy 0.5m USB 3.2 Type C to B Cable, 5Gbps, Anthra Line

Connectors

• Connector A: USB 3.2 Type C Male
• Connector B: USB 3.2 Type B Male
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction:
  • C: High conductivity copper
  • B: Brass
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
  • C: 10.8x32x7.8mm (0.43x1.26x0.31in)
  • B: 12.2x46x10mm (0.48x1.81x0.39in)

Cable Construction

• Length: 0.5m (1.64ft)
• Standard: USB 3.2 Gen 1
• Colour: Black
• Type: Round
• Jacket Diameter: 4.3mm (0.17in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge Power: 22AWG
• Conductor Gauge Data: 30AWG
• Shielding: Copper Braid 82%
• Shielding in connector head shell: Copper foil

Specifications

• Supported Bandwidth: 5Gbps
• Maximum Resolution: -
• Nominal Attenuation: 100-2500MHz < 20db
• Minimum Band Radius: 25mm (0.98in)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: 0°C - 70°C (32°F - 158°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, California Proposition 65, UL

Purchasing Information

• No.: 36665
• EAN: 4002888366656

This product is also available in other lengths

• 36665 - 0.5m (1.64ft)
• 36666 - 1m (3.28ft)
• 36667 - 2m (6.56ft)
• 36668 - 3m (9.84ft)
