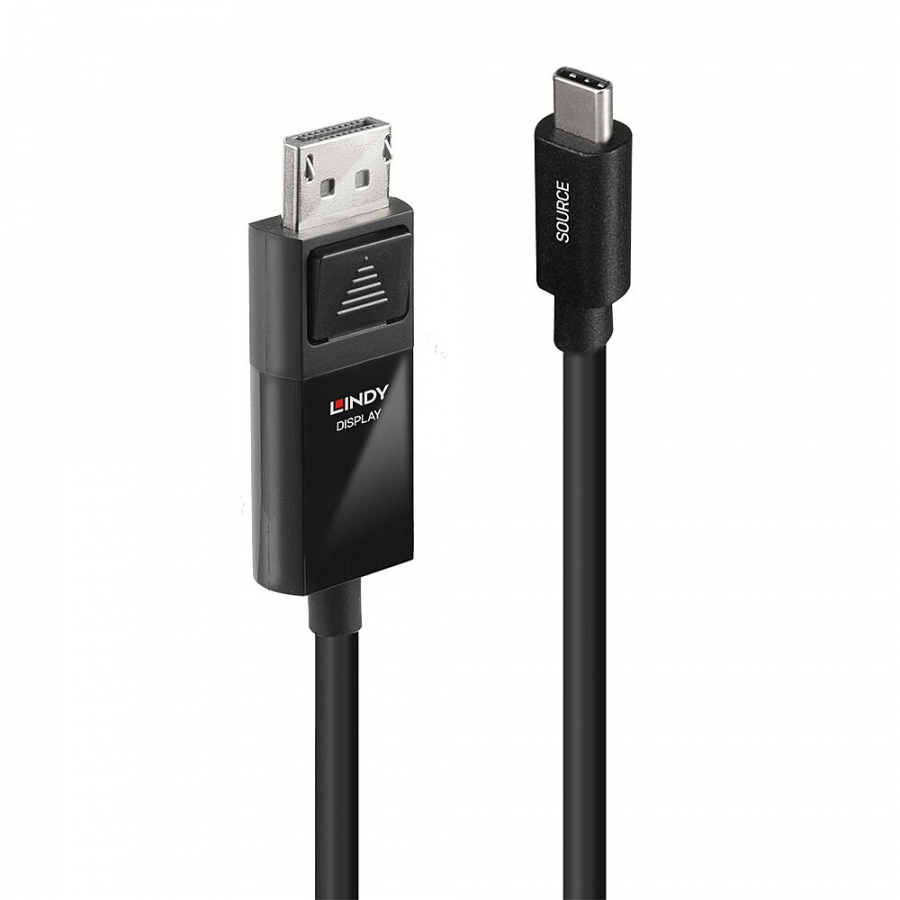

Lindy 1m USB Type C to DP 8K60 Adapter Cable

Lindy

LIN43341

New

Connectors

  • Connector A: USB Type C Male
  • Connector B: DisplayPort Male
  • Housing Material: USB C: ABS shell, DP: ABS shell
  • Connector Plating: Nickel plating
  • Pin Construction: Phosphor Copper
  • Pin Plating: Gold plating
  • Dimensions (approx.) WxDxH:
    • USB: 24.3x12.52x7mm (0.96x0.49x0.28in)
    • DP: 47.74x22.2x10mm (1.88x0.87x0.39in)



Cable construction

  • Length: 1m (3.28ft)
  • Standard: DP 1.4
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 4.2mm (0.17in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 34AWG
  • Shielding: Copper Braid 85%



Specifications

  • Chipset: VL100
  • Supported Bandwidth: 32.4Gbps
  • Power Delivery: -
  • Maximum Resolution: 7680x4320@60Hz and 3840x2160@144Hz
  • Nominal Attenuation: 0.1MHz-6MHz<12DB
  • Minimum Bend Radius: 25.5mm (1in)
  • Operating Temperature: -20°C - 40°C (-4°F - 104°F)
  • Storage Temperature: -40 °C - 80°C (-40°F - 176°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH, California Proposition 65



Purchasing information

  • No.: 43341
  • EAN: 4002888433419



This product is also available in other lengths

  • 43342 - 2m (6.56ft)
  • 43343 - 3m (9.84ft)
