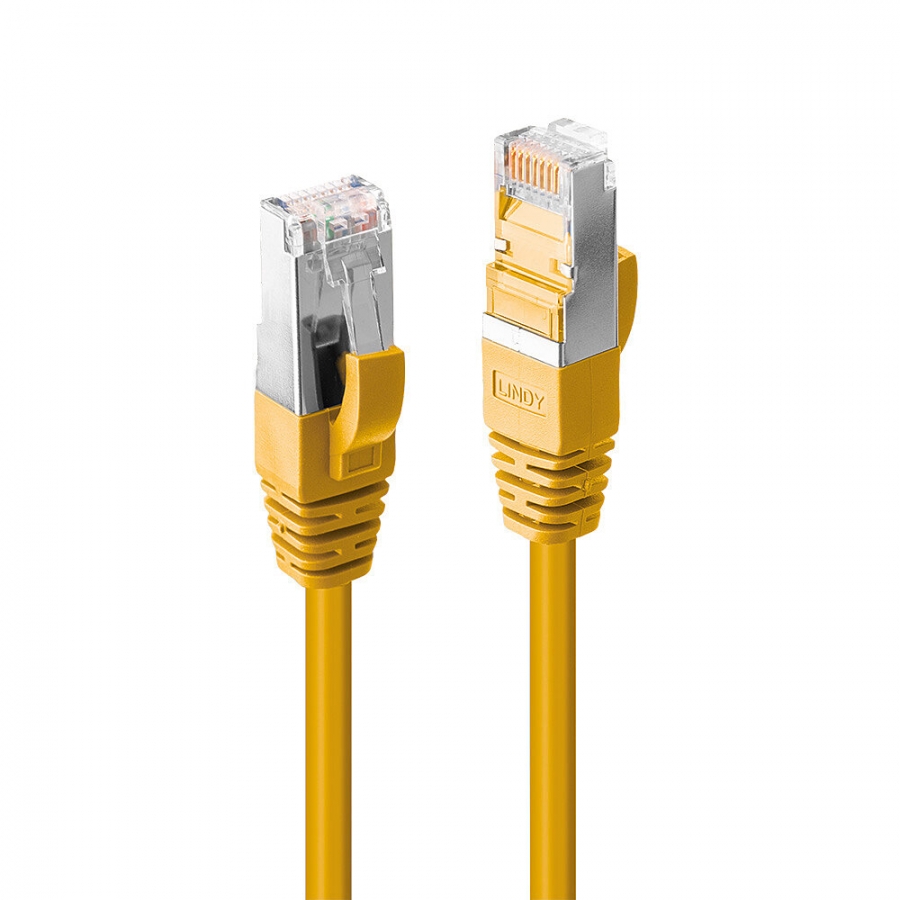

Lindy 7.5m Cat.6 S/FTP LSZH Cable, Yellow

Lindy

LIN45985

New

Connectors

  • Connector A: RJ45 Male
  • Connector B: RJ45 Male
  • Housing Material: Polycarbonate
  • Connector Plating: Nickel
  • Pin Construction: Brass
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)



Cable Construction

  • Length: 7.5m (24.61ft)
  • Colour: Yellow
  • Type: Cat.6
  • Jacket Diameter: 6.2mm (0.24in)
  • Jacket Material: LSZH
  • Conductor Material: Copper
  • Conductor Gauge: 26AWG
  • Shielding: Aluminium / Polyester



Specifications

  • Supported Bandwidth: 250MHz
  • Nominal Attenuation: 38.3dB/100m @250MHz
  • Minimum Band Radius: 18.6mm (0.74in)
  • Operating Temperature: -25°C - 60°C (-43°F - 140°F)
  • Storage Temperature: -25°C - 60°C (-43°F - 140°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL



Purchasing Information

  • No.: 45985
  • EAN: 4002888459853



This product is also available in other lengths

  • 45979 - 0.3m (0.98ft)
  • 45980 - 0.5m (1.64ft)
  • 45981 - 1m (3.28ft)
  • 45982- 2m (6.56ft)
  • 45983 - 3m (9.84ft)
  • 45984 - 5m (16.44ft)
  • 45985 - 7.5m (24.61ft)
  • 45986 - 10m (32.81ft)
  • 45987 - 15m (49.21ft)
  • 45988 - 20m (65.62ft)
  • 45989 - 30m (98.43ft)
