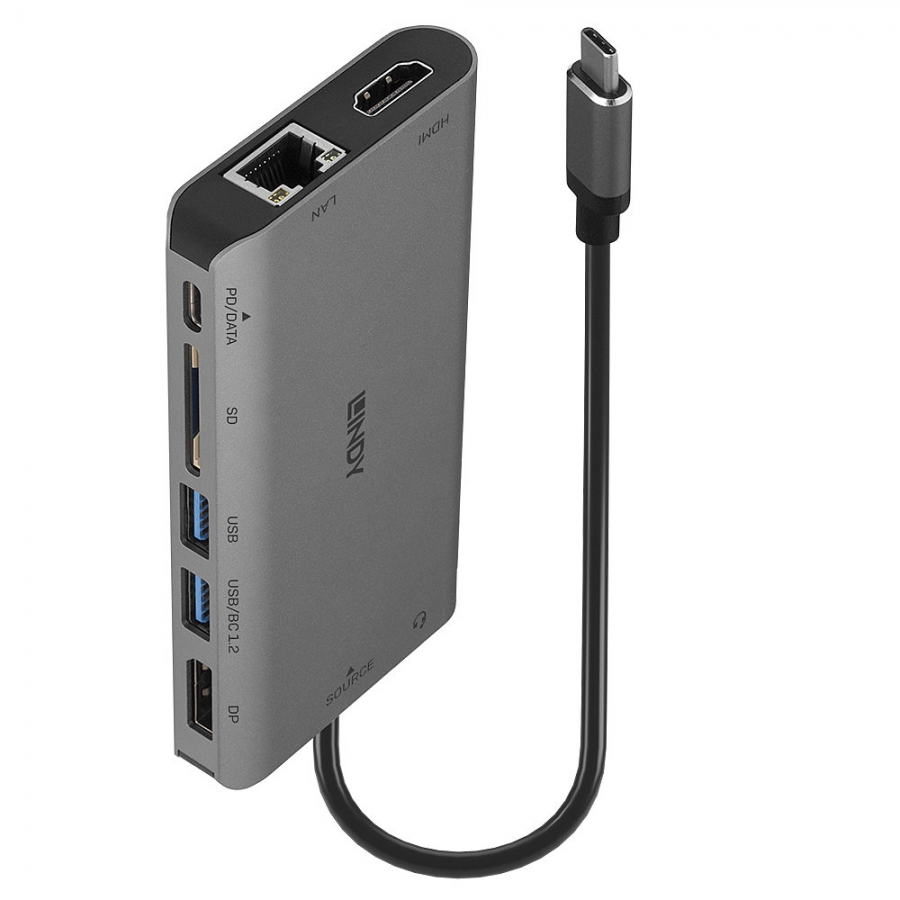

Lindy USB 3.2 Type C Laptop Mini Dock - 4K HDMI & DP, PD 3.0 100W, USB 3.2, Gigabit Ethernet, SD, Audio

Lindy

LIN43323

New

Specifications

  • Interface: USB Type C to 1x HDMI / 1x DP / 1x RJ45 / 2x USB Type A / 1x USB Type C / 1x SD / 1x Audio
  • Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 1.4, DP 1.2, Gigabit LAN,  Audio (combo)
  • Supported Bandwidth: 5 Gbps, 10/100/1000 Mbps
  • Maximum Input Resolution: 3840x2160@30Hz
  • Maximum Output Resolution: 3840x2160@30Hz (HDMI), 3840x2160@30Hz (DP), simultaneous connection: 1920x1080
  • Chipset: VM3332, VL817, VL102, AU6438, RTL8153B, HS-100B
  • Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
  • Power Delivery: PD 3.0 up to 100W (20V 5A)
  • HDCP Support: HDCP 1.4
  • Supported Audio: Supports 48/44.1kHz audio sampling rate
  • Separate Audio Ports: 1x Audio combo port 3.5mm
  • Special Features: DisplayPort Alternate Mode, USB Type C Female port supports power and data, 1x  Battery Charging 1.2 port



Connectors

  • Inputs: 1 x USB Type C (Male)
  • Outputs: 1x HDMI (Female), 1x DisplayPort (Female), 1x RJ45 (Female), 2x USB Type A (Female), 1x USB Type C (Female) / 1x SD slot, 1x 3.5mm Audio (Female)
  • Power: 1 x USB Type C (Female) PD port



Physical Properties

  • Dimensions WxDxH: 116.5x61x16mm (4.59x2.4x0.63in)
  • Housing Material: Aluminium
  • Net Weight: 0.115kg (0.25lb)
  • Operating Temperature: 0° - 55°C (32°F - 131°F)
  • Storage Temperature: -10°C - 70°C (-14°F - 158°F)
  • Humidity: 0 - 85% RH (non-condensing)
  • Power Requirements: Bus-powered
  • Colour: Grey



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 150x137x120mm (5.91x5.39x0.79in)
  • Gross Weight: 0.15kg (0.33lb)
  • Warranty (Years): 2
  • Certificated: CE, UKCA, FCC, REACH & RoHS, California Proposition 65



Package Contents

  • USB 3.2 Type C Laptop Mini Dock
  • Lindy Manual



Purchasing information

  • No.: 43323
  • EAN: 4002888433235
