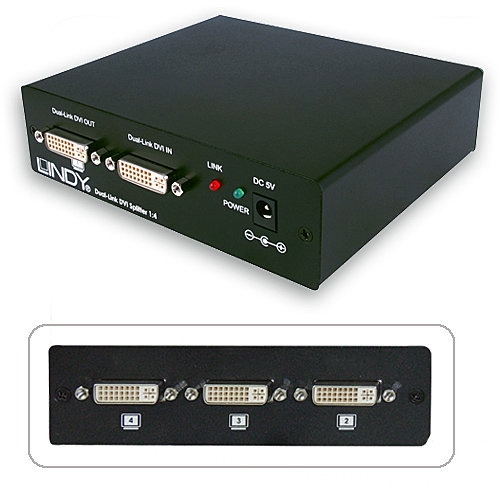

4 Port DVI-D Dual Link Splitter

LIN38104

New

Specifications

  • AV Interface: DVI
  • Interface Standard: DVI-D Dual Link
  • Supports Bandwidth: 225MHz
  • Maximum Resolution: 2560x1600
  • HDCP Support: Pass-through (Output 1 only)
  • Supported Audio: -
  • Separate Audio Ports: -
  • CEC Support: -
  • Serial Interface: -
  • Special Features: Built In EDID Simulator



Connectors

  • Input: DVI-D (Female)
  • Output: 4 x DVI-D (Female)
  • Control: -
  • Power : 5.5/2.1mm



Physical Properties

  • Dimensions (approx.) WxDxH: 141x165x40mm (5.55x6.5x1.57in)
  • Housing Material: Metal
  • Net Weight: 0.82kg (1.81lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20-90% RH (Non condensing)
  • Power Requirements: 5VDC 4A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 260x70x175mm (10.24x2.76x6.89in)
  • Gross Weight: 1.05kg (2.31lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS and REACH



Package Content

  • DVI Splitter
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual
  • PSU Instruction Leaflet
  • Set of Rubber Feet



Purchasing Information

  • No.: 38104
  • EAN: 4002888381048
