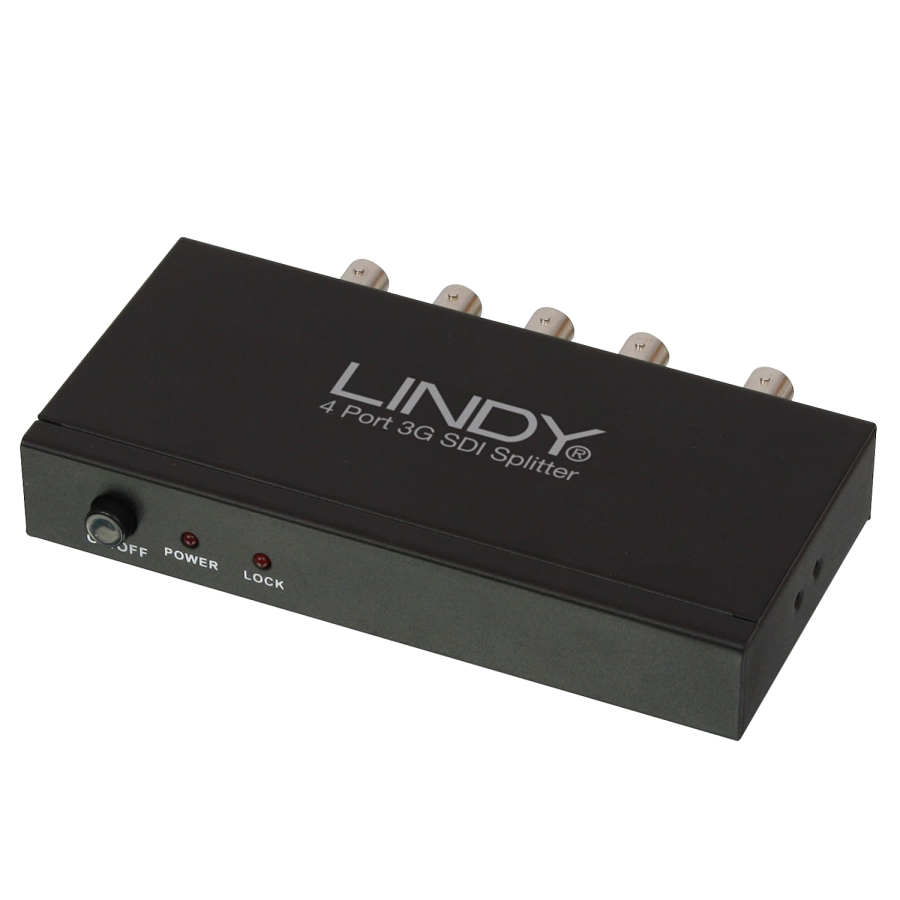

3G SDI Splitter 4 Port (1:4)

LIN38085

New

  • Supports SD-SDI 270Mb/s, HD-SDI 1.485Gb/s & 3g-SDI 2.97Gb/s video format
  • Supports resolutions up to 1920 x 1080@60Hz
  • Supports input/output distances of up to 300m for SD, 200m for HD & 100m for 3G signals
  • Input connector: 1 x BNC Female
  • Output Connectors: 4 x BNC Females
  • Frequency bandwidth: 3Gbps
  • Dimensions: 146 x 70 x 25mm WxDxH
  • power consumption: <1.5w
  • Operating temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Weight: 336g





Videoswitches / Videoselectors
