LINDY 100m 4 Port Cat.6 HDMI 4K60 HDBaseT Splitter Extender

Lindy

38355

New

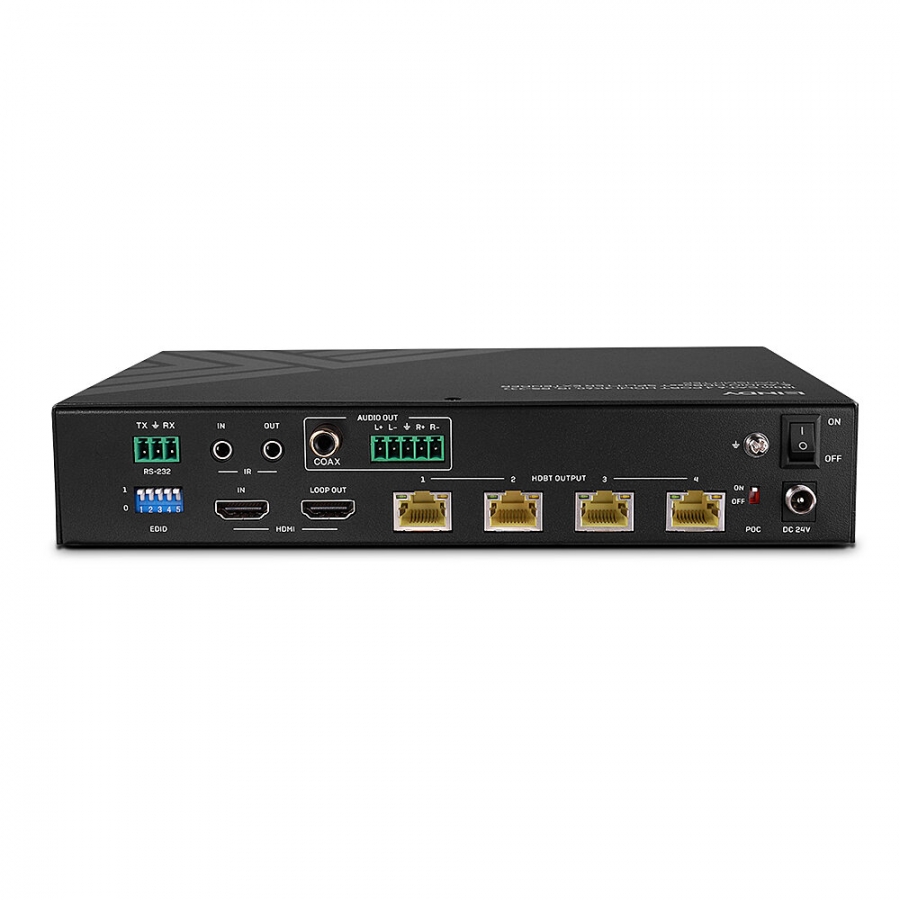

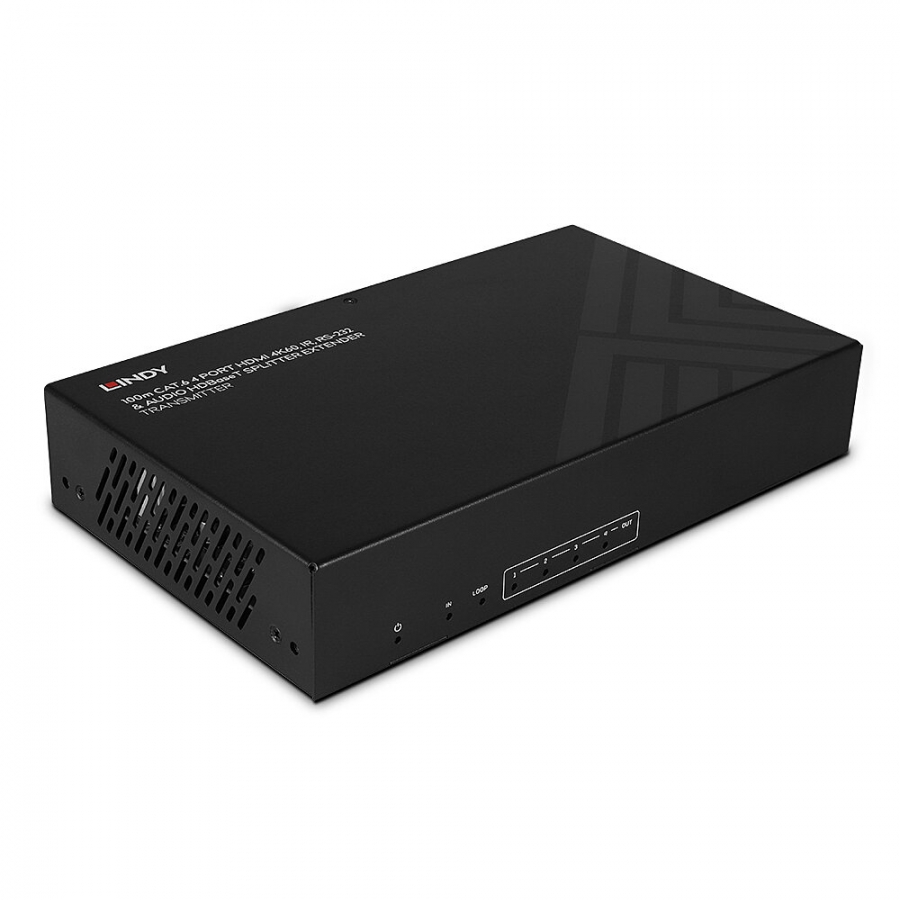

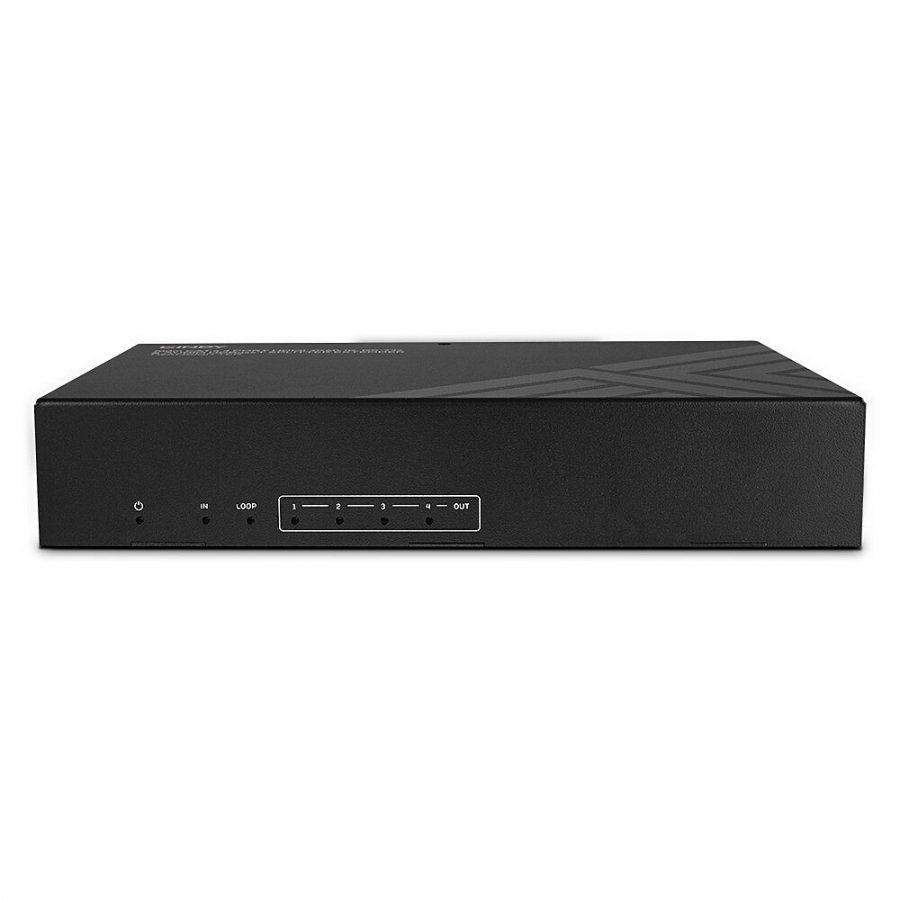

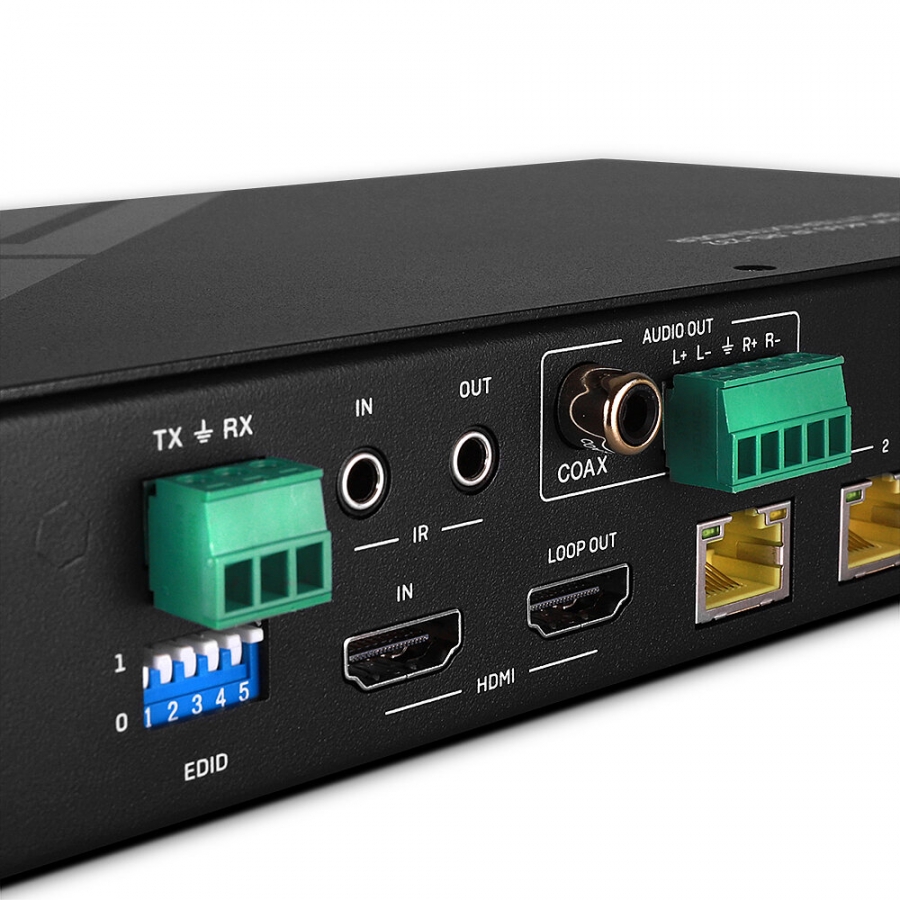

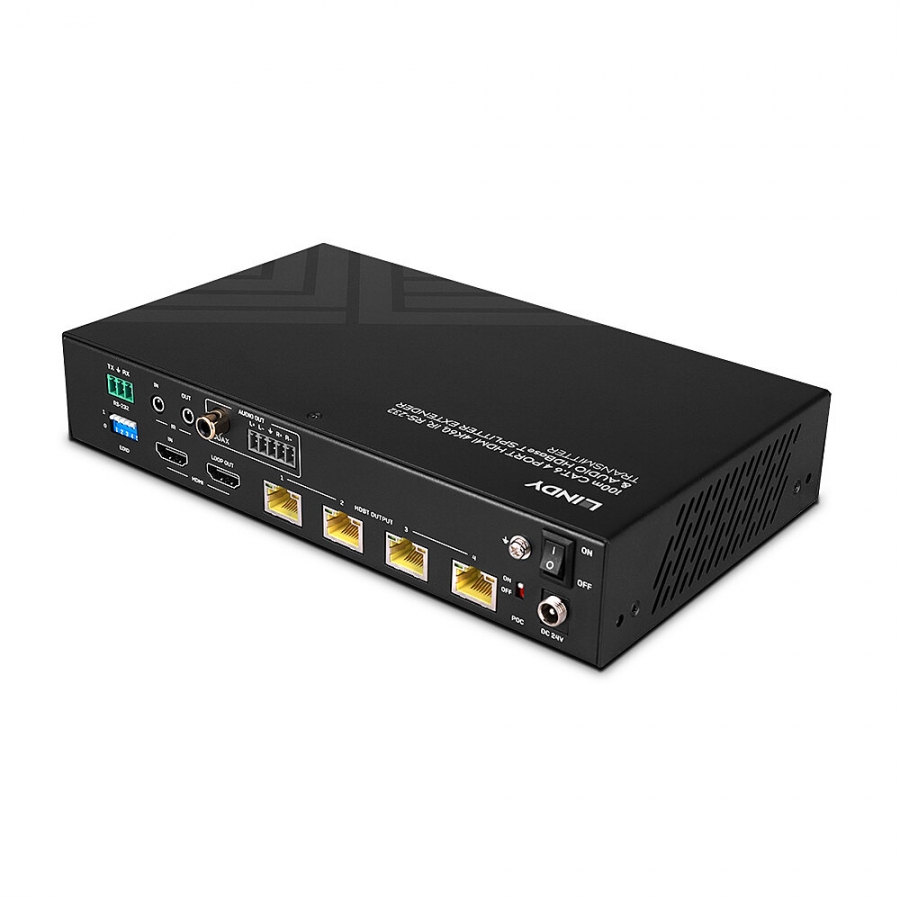

The Lindy 100m Cat.6 4 Port HDMI 4K60 HDBaseT Splitter Extender is an high end solution to Extend HDMI signals to 4 HDBaseT receivers (not included) using Cat.6 or above cables up to 100m.Compatible with most HDBaseT receivers on the market like N. 38342 and 38214.Supporting resolutions up to 4K60Hz including HDR and 1080p, the Splitter Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.It supports several signals and features such as digital and analog de-embedded audio, IR and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out port enables simultaneous viewing so that a local display can be connected for monitoring, or to create an additional viewing zone. PoC (Power over Cable) functionality can be switched on and off to provide additional flexibility; this allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver with this function, meaning only a single power supply is required at the transmitter unit.

Video ports quantity2
Video port typeHDMI
Video outHDMI
HDMI version2.0
Ethernet LAN (RJ-45) ports4
Audio ports quantity8
Headphone outY
Headphone connectivity3.5 mm
DC-in jackY
Maximum resolution3840 x 2160 pixels
Product colourBlack
Housing materialMetal
HD type4K Ultra HD
Maximum operating distance100 m
Colour depth8 bit
Maximum refresh rate60 Hz
Data transfer rate18 Gbit/s
Ethernet LANY
Cable types supportedCat6
Width220 mm
Depth130 mm
Height40 mm
Weight1.4 kg
Quantity per pack1 pc(s)
Package width285 mm
Package depth274 mm
Package height100 mm
Package weight1.89 kg
Package typeBox
ManualY
Cables includedIR, Power
AC adapter includedY
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90%
