Level One LevelOne WLAN Access Point & Extender outdoor PoE DualBand

LEVEL ONE

WAB-8011

New

Model Number
WAB-8011
SKU
54620707
  • Share your wireless network up to 1200Mbps
  • Provides wireless speeds of up to 300Mbps (2.4GHz) / 867Mbps (5GHz)
  • Compatible with IEEE 802.11a/b/g/n/ac wireless standards
  • Dual band technology reduces interference, providing reliable connections
  • Router/AP/Repeater/WISP operation modes to suite different wireless applications
  • Provides up to 8 SSIDs to separate network traffic and enhance security
  • Weatherproof IP65-rated housing
The LevelOne WAB-8011 is a managed, outdoor dual-band 802.11ac/n wireless access point, capable of a combined speed of up to 1200 Mbps. The device runs on 2.4 and 5 GHz frequencies, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAB-8011 also offers PoE, removing the need for an external power supply, which makes it easy to install. Advanced weatherproof design, rated to IP65 means the WAP is designed for outdoor deployments, and can withstand rain, humidity, dust, sNAw and extremely hot conditions. A fast, versatile and secure access point for a wide variety of outdoor network requirements.
Other
Approval and complianceCE
Operating humidity10% RH ~ 90% RH
Operating temperature-20°C ~ 55°C
Storage humidity5% RH ~ 90% RH
Storage temperature-40°C ~ 70°C
System specifications

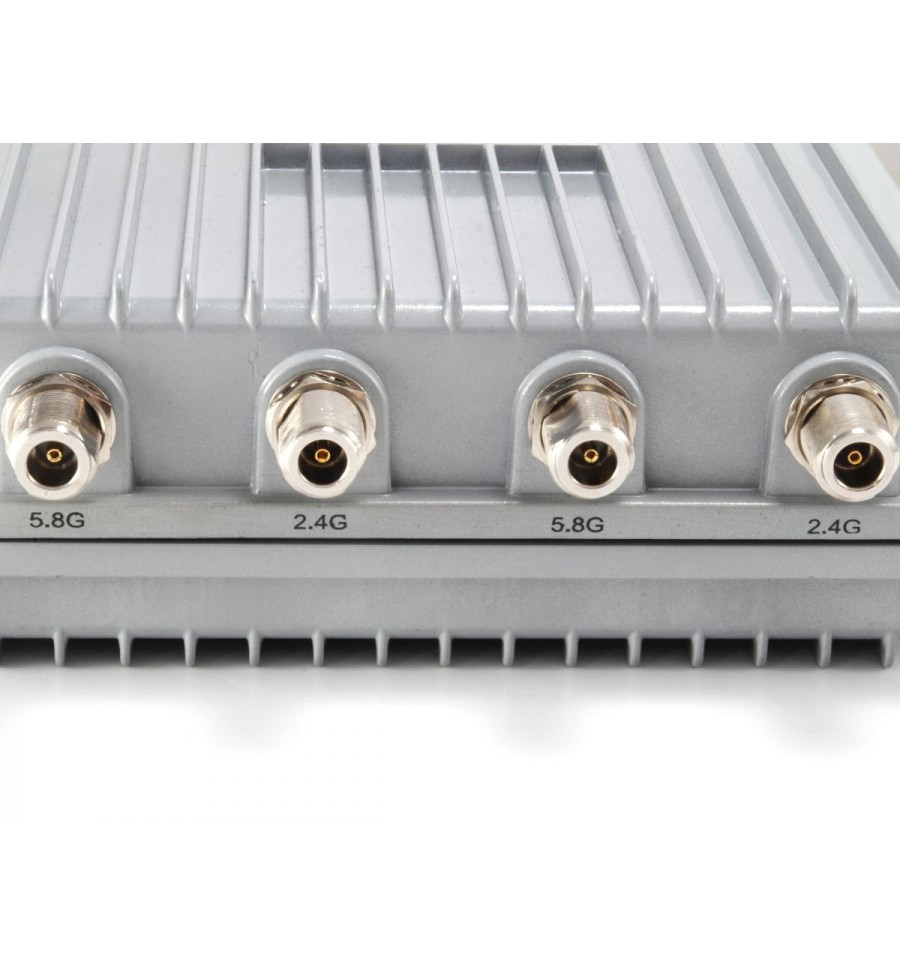

Antenna2 x N female Jack Connectors for 2.4 GHz 2 x N female Jack Connectors for 5 GHz(Antenna is to be ordered separately)
EIRP (dBm)<20 dBm
Encryption64/128-bit WEP WPA/WPA2 WPA-PSK/WPA2-PSK
Frequency band2.4~2.5/4.9~5.9 GHz
MountPole mount

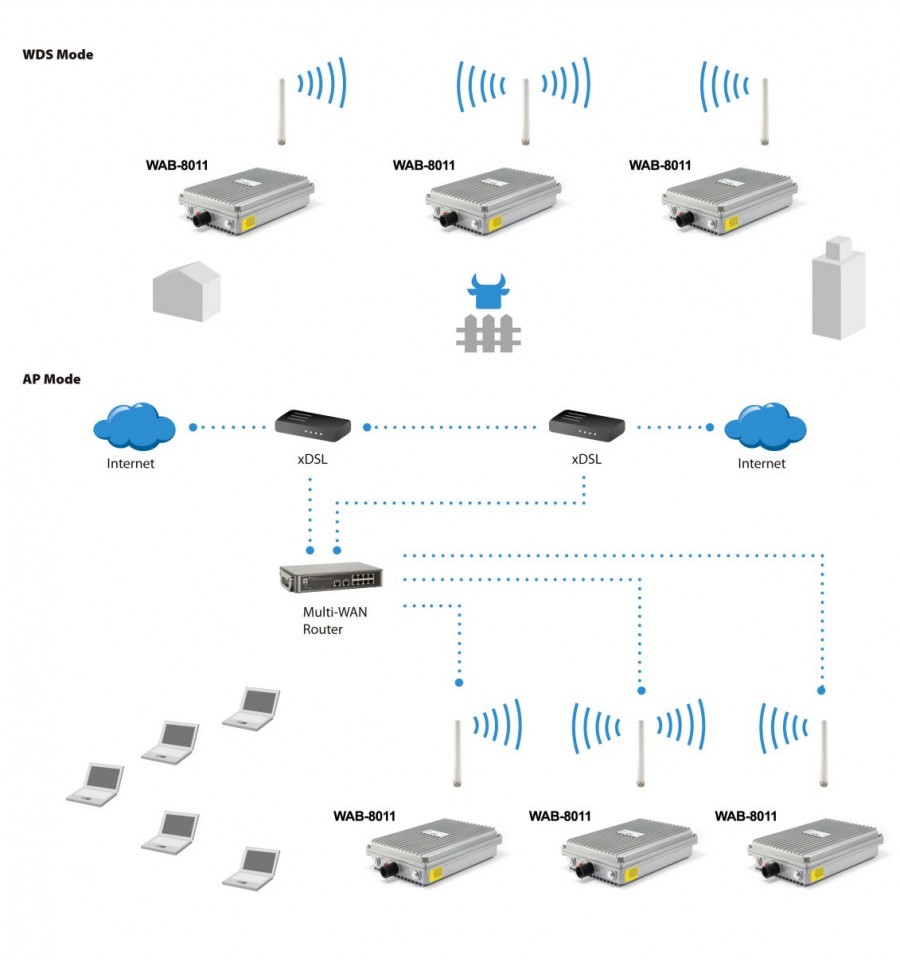

Operating modesGateway Mode, Repeater Mode, AP Mode, WISP Mode
StandardsIEEE 802.11a/b/g/n/ac
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.11e Wi-Fi Multimedia (WMM)
IEEE 802.11i Wi-Fi Protected Access (WPA2)
IEEE 802.11a,IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,IEEE 802.11AC Wireless Networking
IEEE 802.3at Power over Ethernet
Wireless channelsCh.1 ~ 11 USA Ch.1 ~ 13 EU Ch.36~165 By Country
Physical Specifications
Product weight (kg)4
Default
ColorSilver
EAN4015867200384
Model NumberWAB-8011
Package contentsWAB-8011
Ressource CD (Bedienungsanleitung, QIG)
Quick Installation Guide
RJ45-Ethernet-Kabel
Stangenmontageset
Port Configuration

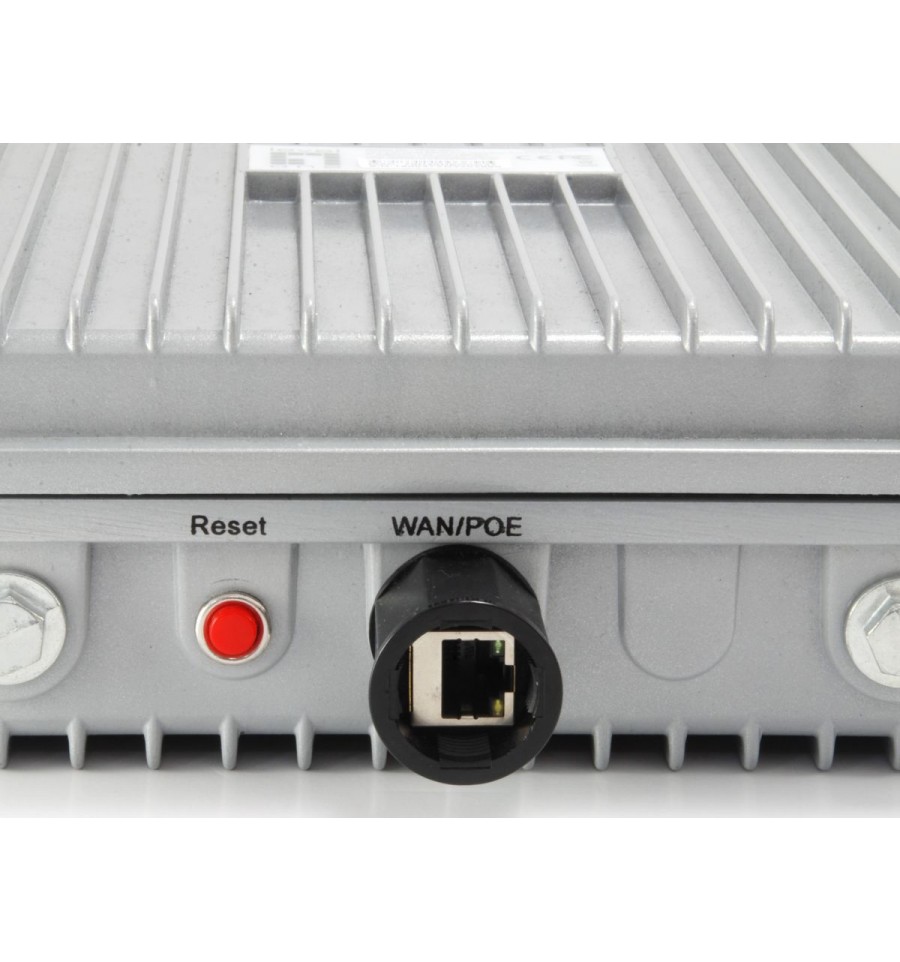

Gigabit RJ451
802.3af/at PoE1
Performance
Receiver sensitivity2.4GHz:
802.11n (20MHZ): Range (-79) dBm
802.11n (40MHZ): Range (-75) dBm
802.11g 6Mbps: Range (-95) dBm
802.11g 54Mbps: Range (-82) dBm
802.11b 1Mbps: Range (-99) dBm
802.11b 11Mbps: Range (-92) dBm

5GHz:
802.11a 6Mbps: Range (-92) dBm
802.11a 54Mbps: Range (-75) dBm
802.11n (20MHZ): Range (-72) dBm
802.11n (40MHZ): Range (-70) dBm
802.11ac (20MHZ): Range (-70) dBm
802.11ac (40MHZ): Range (-66) dBm
802.11ac (80MHZ): Range (-62) dBm
Filter
Frequency band2.4/5GHz(Dual bands)
Max. Wi-Fi Data Rate1200Mbps
Wireless AP TypeOutdoor
PoE SupportedYes
Akeneo
Power consumption<20W
Dimensions (W x D x H)230 x 380 x 85 mm
