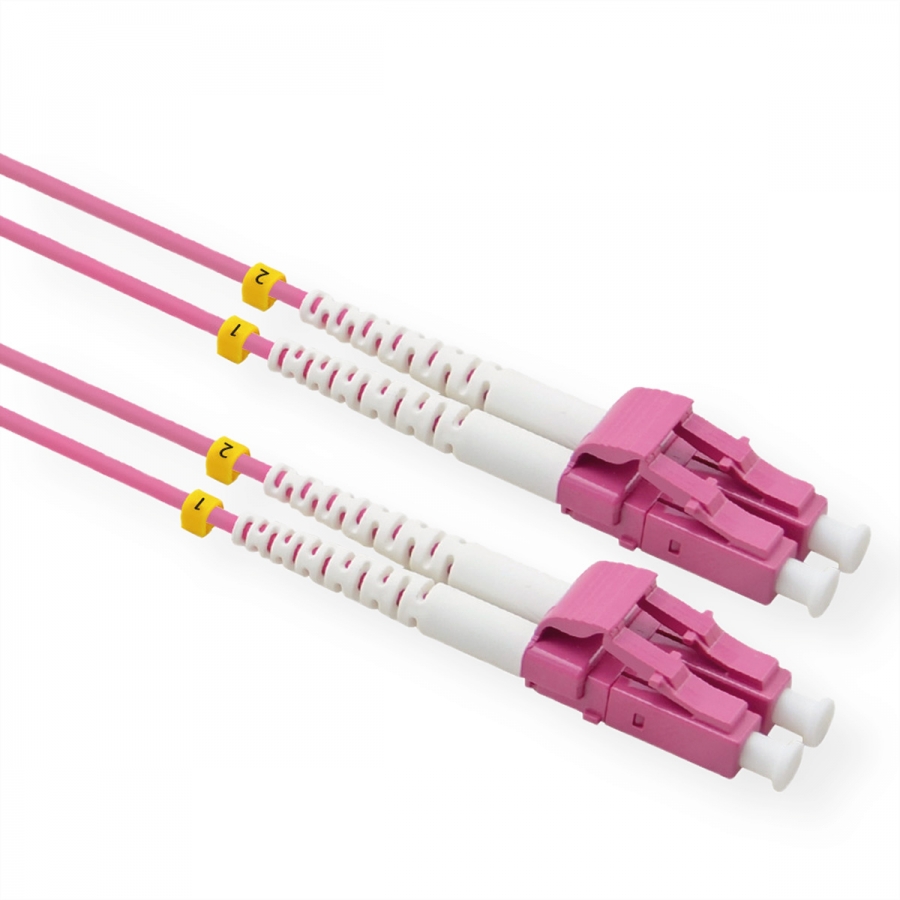

VALUE FO Jumper Cable 50/125µm OM4, LC/LC, Low-Loss-Connector, violet, 15 m

VALUE

21.99.8836

Jauns

VALUE F.O. Patchcable in OM4-Quality for a high performance connection.

  • Security for the future! The OM4 fiber and connector quality with very low insertion ensure an excellent quality at very high bandwidths.
  • It supports 10 Gb/s Ethernet, Fibre Channel, and OIF applications to 550 meters, extends the system cost benefits to ultra long building backbones and medium length campus backbones.
  • The cable assembled with "low-loss" connectors achieve very good values for insertion loss and reflection. In comparison:
- Typical attenuation of a standard LC connector: 0.5 dB
- Typical attenuation of a low-loss LC connector: 0.15 dB
  • Modal Bandwidth: 4700 MHz-km (this bandwidth is based on application-specific implementation of the EMBC requirements)
  • Duplex cables with fiber type Multi-mode 50/125µm, OM4



ManufacturerVALUE
Product groupFibre optic cable
Product typeFibre Optic Jumper Cables OM4
Colourviolet
Length15 m
Quantity of fibre2
Conductor compositionCompact conductor
Cable typeDuplex Cable
External cable
Fibre section50/125µm OM4
Connection portsLC / LC
Side 1 Connector TypeLC
side 1 connector ferruleslow loss
Side 2 Connector TypeLC
side 2 connector ferruleslow loss
Kevlar strain relief
External cable diameter2 x 4 mm
Mantle of external cableLS0H
Cable LSOH
Weight111.5 g
Current catalog editionC21-01.53
