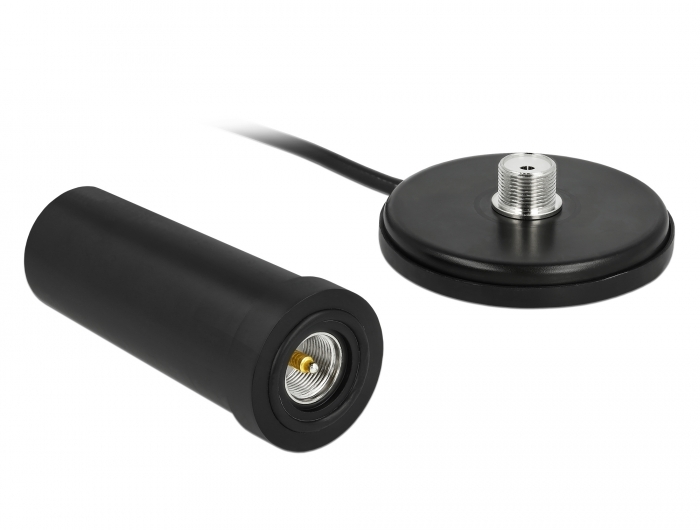

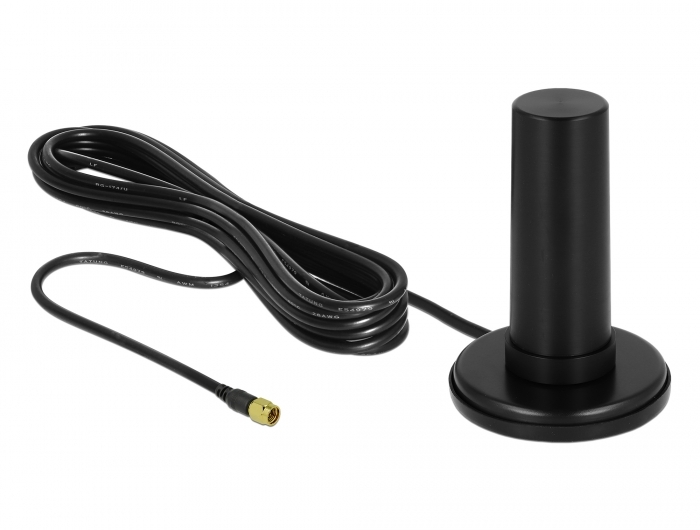

Delock 5G LTE Antenna SMA plug 0 - 3 dBi fixed omnidirectional with magnetic base and connection cable RF195 3 m outdoor black

DELOCK

12590

Jauns

This antenna by Delock allows the usage of different 5G and LTE bands indoors and outdoors.
System requirements:
• Device with a free SMA connector
Specification:

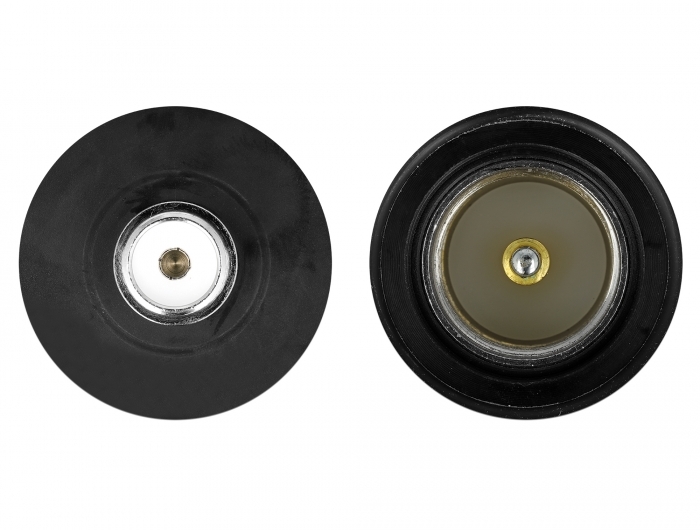

• Connector: 1 x SMA plug
• Frequency range:
  698 MHz - 960 MHz
  1710 MHz - 2170 MHz
  2500 MHz - 2700 MHz
  3400 MHz - 3800 MHz
• 5G, ZigBee, LoRa, DECT, Z-Wave, NB-IoT, Bluetooth, GSM, UMTS, LTE, ISM, WLAN
  2.4 GHz
• Antenna gain: 0 - 3 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear, vertical
• Operating temperature: -20 °C ~ 70 °C
• Housing material: ABS
• Colour: black
• Protection class: IPX5
• Cable: coaxial
• Cable type: RF195
• Cable colour: black
• Cable attenuation: 0.47 dB @ 1.5 GHz per meter
• Cable diameter: ca. 4.95 mm
• Cable length incl. connector: ca. 3 m
• Dimensions (LxD): ca. 110.0 x 77.0 mm
Package content:
• Antenna
Data sheet:
http://www.delock.de/produkt/12590/pdf.html?sprache=en
