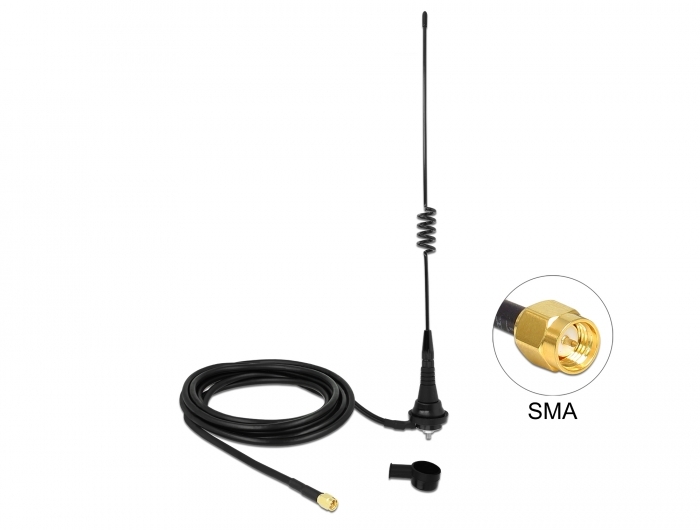

Delock LPWAN 868 MHz Antenna SMA plug 4.5 dBi fixed omnidirectional with connection cable RG-58 C/U 2.5 m outdoor black

DELOCK

12567

Jauns

This antenna by Delock allows the usage of the 868 MHz band indoors and outdoors.
System requirements:
• Device with a free SMA connector
Specification:
• Connector: 1 x SMA plug
• Frequency range: 868 MHz
• LoRa, Sigfox, ZigBee, Z-Wave
• Antenna gain: 4.5 dBi
• Impedance: 50 Ohm
• VSWR: 1.5
• Polarisation: vertical
• HBW horizontal beamwidth: 360°
• Operating temperature: -50 °C ~ 70 °C
• Mounting plate: iron chromed
• Colour: black
• Cable: coaxial
• Cable type: RG-58 C/U
• Cable attenuation: 0.73 dB @ 1.0 GHz per meter
• Cable diameter: ca. 4.95 mm
• Smallest bending radius: 20 mm
• Cable length incl. connectors: ca. 2.5 m

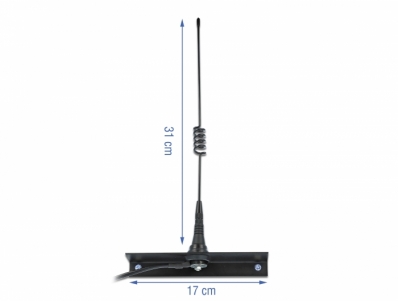

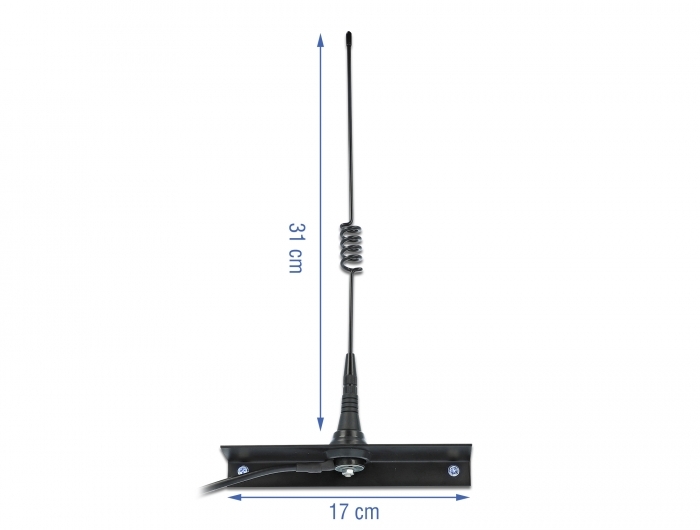

• Dimensions (LxD): ca. 300.0 x 33.0 mm
• Dimensions Mounting plate (LxWxH): ca. 170 x 40 x 20 mm
• Maximum wind speed: 60 m/s
Package content:
• Antenna

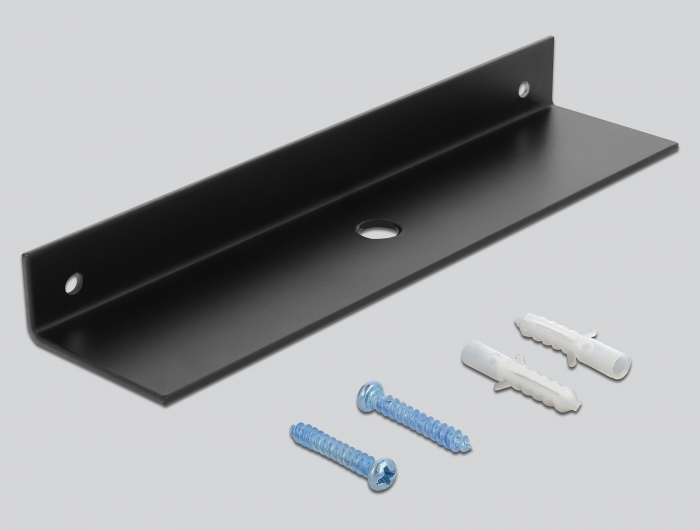

• Fixing plate
Data sheet:
http://www.delock.de/produkt/12567/pdf.html?sprache=en
